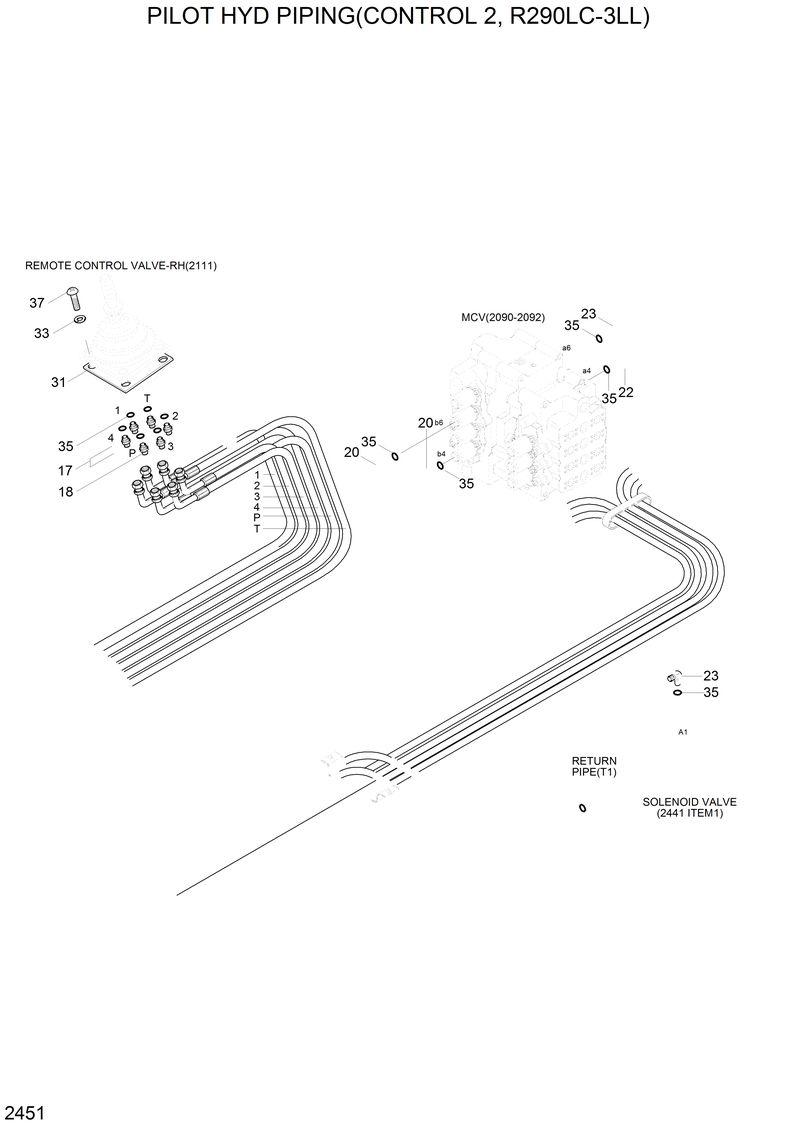

Запчасти Hyundai R290LC3LL PILOT HYD PIPING(CONTROL 2, R290LC-3LL)

S403-062006

S403-062006-Washer-Plain

10

P850-042130

P850-042130-Hose Assy-Thd 0x45

11

P850-042132

P850-042132-Hose Assy-Thd 0x45

17

P010-110002

P010-110002-Connector

18

31EK-20100

31EK-20100-Filter-Last Guard

20

P020-110001

P020-110001-Elbow-90

22

P320-040404

P320-040404-Tee

23

E131-0603

E131-0603-Elbow-90

24

32E6-10460

32E6-10460-Tee-Swivel

31

31E9-20030

31E9-20030-Spacer-Rcv Lever

33

S411-060006

S411-060006-Washer-Spring

35

S631-011001

S631-011001-O-Ring

37

S175-060306

S175-060306-Bolt-Hex,Rd Hd

40

E131-1047

E131-1047-Ring

42

S015-080166

S015-080166-Bolt-Hex

43

S411-080006

S411-080006-Washer-Spring

44

31E6-20030

31E6-20030-Clamp-Hose

8

P850-042126

P850-042126-Hose Assy-Thd 0x45
