Запчасти Hyundai R290LC3LL PILOT HYD PIPING(BASE 2, R290LC-3LL)

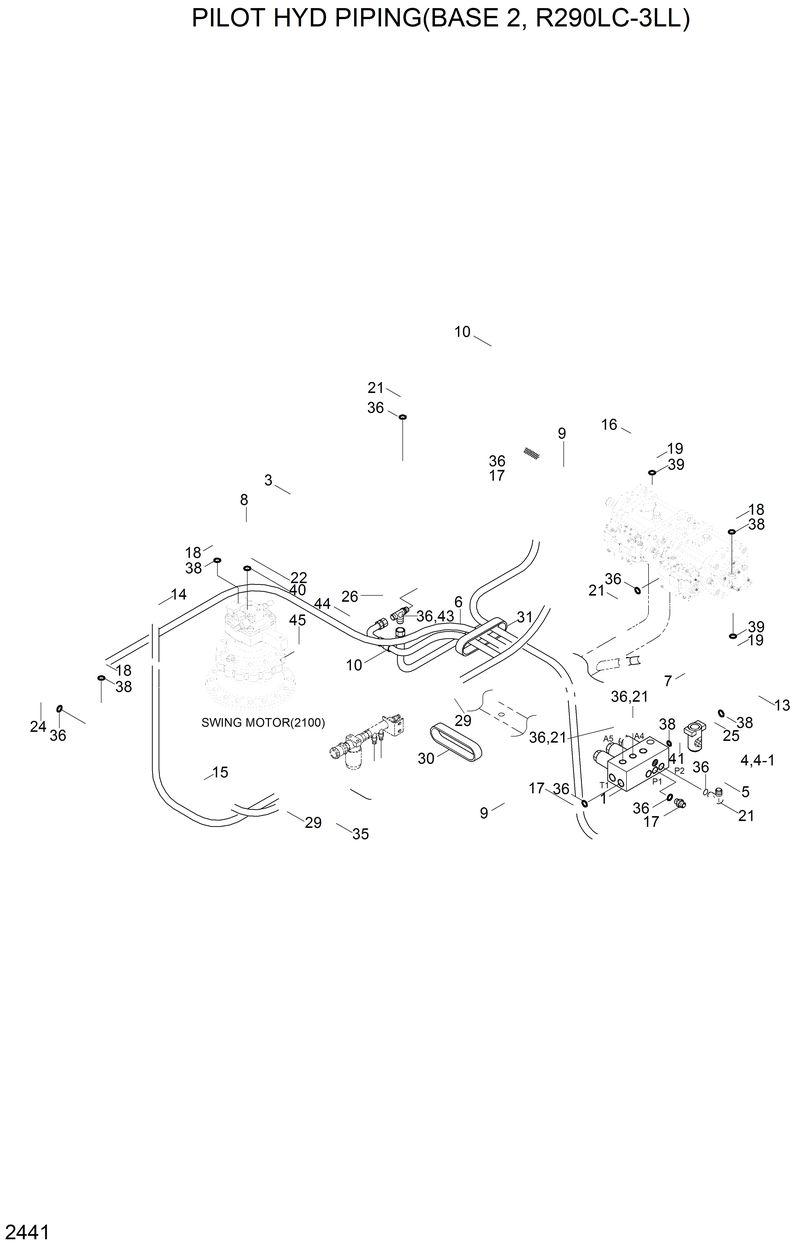

Схема запчастей Hyundai R290LC3LL - PILOT HYD PIPING(BASE 2, R290LC-3LL)

Артикул

Название

Примечание

Количество

1

31E9-22100

31E9-22100-Solenoid-3

10

P620-042042

P620-042042-Hose Assy

13

P620-083017

P620-083017-Hose Assy

14

P620-083043

P620-083043-Hose Assy

15

P620-083050

P620-083050-Hose Assy

16

P623-122023

P623-122023-Hose Assy

17

P010-110002

P010-110002-Connector

18

P010-110004

P010-110004-Connector

19

P010-110005

P010-110005-Connector

2

32E9-2001

32E9-2001-Valve-Port Relief

21

P020-110001

P020-110001-Elbow-90

22

P020-110005

P020-110005-Elbow-90

24

P030-110001

P030-110001-Elbow-45

25

P030-110003

P030-110003-Elbow-45

26

P290-100103

P290-100103-Plug-Cap

27

P220-110103

P220-110103-Plug

29

31E3-3116

31E3-3116-Grommet

3

31E1-30120

31E1-30120-Elbow-90

30

31E5-3031

31E5-3031-Grommet

31

31E9-0140

31E9-0140-Grommet

33

S015-080202

S015-080202-Bolt-Hex

34

S411-080002

S411-080002-Washer-Spring

35

S551-050203

S551-050203-Clamp-Band

36

S631-011001

S631-011001-O-Ring

37

P631-014001

P631-014001-O-Ring

38

S631-018001

S631-018001-O-Ring

39

S631-024001

S631-024001-O-Ring

4

31E3-0017

31E3-0017-Filter-Line

4-1

31E3-0018

31E3-0018-. Element

40

S631-029001

S631-029001-O-Ring

41

31E3-3177

31E3-3177-Fitting

43

P320-040404

P320-040404-Tee

44

31EH-13110

31EH-13110-Hose Assy

45

P010-430015

P010-430015-Connector

5

P600-042016

P600-042016-Hose Assy

6

P600-042060

P600-042060-Hose Assy

7

P600-123012

P600-123012-Hose Assy

8

P600-162029

P600-162029-Hose Assy

9

P620-042017

P620-042017-Hose Assy

Выбрано товаров: 39
