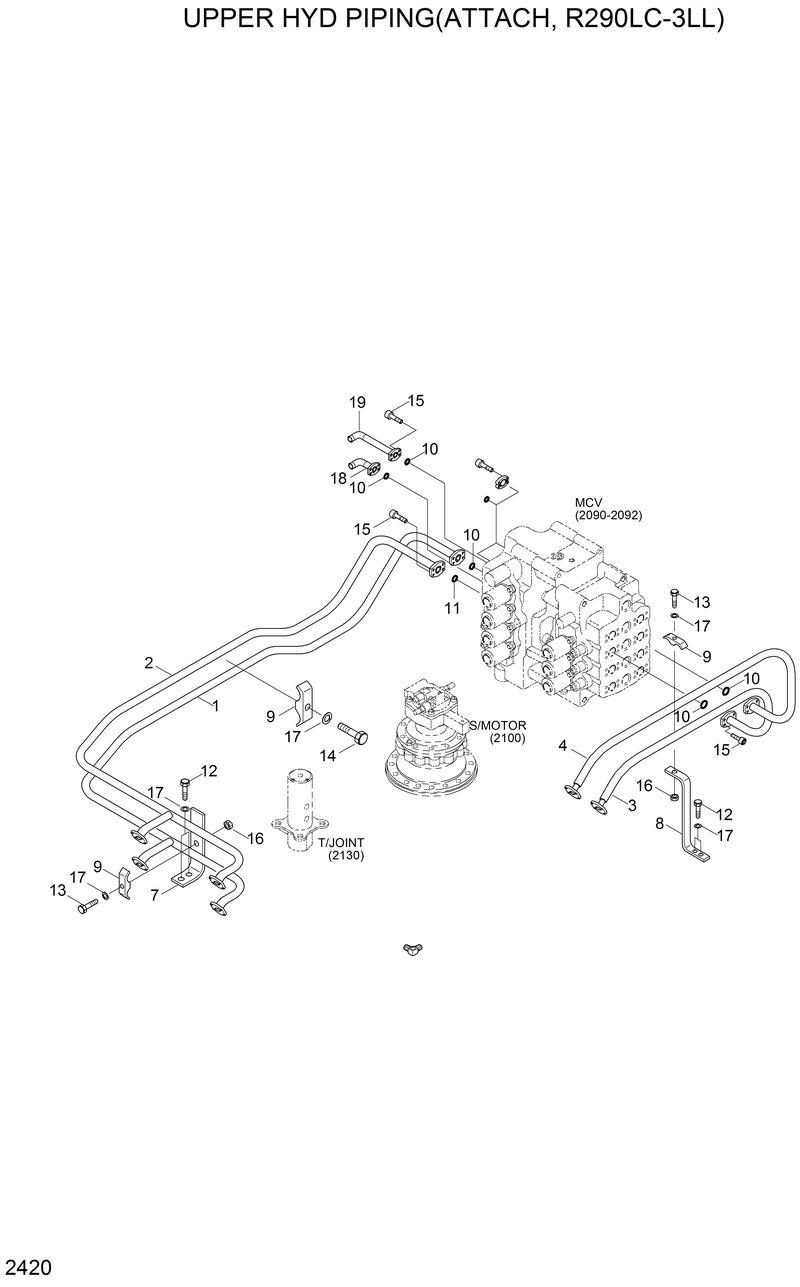

Запчасти Hyundai R290LC3LL UPPER HYD PIPING(ATTACH, R290LC-3LL)

1

31E9-0014

31E9-0014-Pipe Assy

10

CO0418A

CO0418A-O-Ring

11

CO0423A

CO0423A-O-Ring

12

S017-100252

S017-100252-Bolt-Hex

13

S017-100702

S017-100702-Bolt-Hex

14

S017-100752

S017-100752-Bolt-Hex

15

S107-100302

S107-100302-Bolt-Socket

16

S205-101002

S205-101002-Nut-Hex

17

S411-100002

S411-100002-Washer-Spring

18

RL800-0101

RL800-0101-Pipe Assy

19

RL800-0102

RL800-0102-Pipe Assy

2

31E9-0015

31E9-0015-Pipe Assy

20

RL800-0060

RL800-0060-Elbow

21

P173-120102

P173-120102-Flange-Split

3

31E9-13010

31E9-13010-Pipe Assy

4

31E9-13020

31E9-13020-Pipe Assy

5

9410977

9410977-Elbow

6

9410203

9410203-Union

7

31E9-13050

31E9-13050-Bracket-Boom

8

31E9-13060

31E9-13060-Bracket-Attach

9

31EM-12170

31EM-12170-Clamp-Pipe
