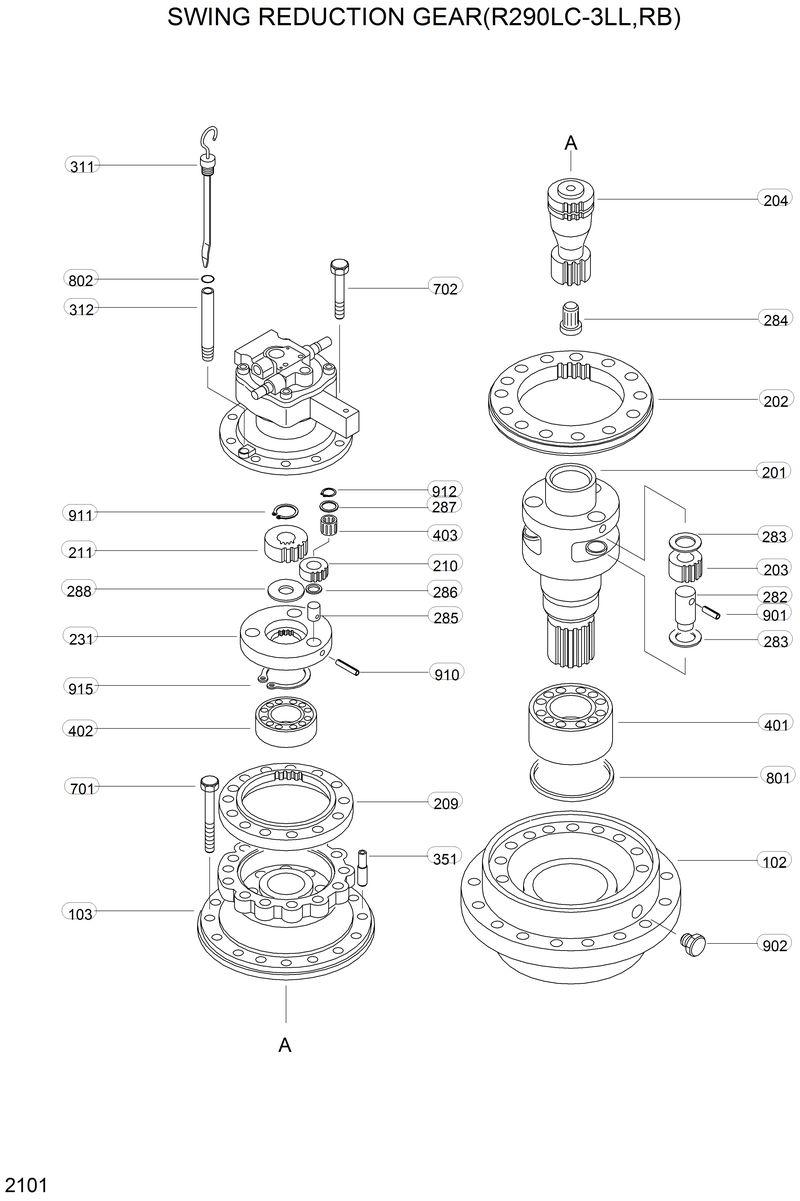

Запчасти Hyundai R290LC3LL SWING REDUCTION GEAR(R290LC-3LL,RB)

103

6323700210

6323700210-.. Casing-Middle

201

630016S04201

630016S04201-.. Shaft-Driving

202

630016S01202

630016S01202-.. Gear-Ring(2)

203

630016S01203

630016S01203-.. Gear-Planet(2)

204

6333700390

6333700390-.. Gear-Sun(2)

209

6333700418

6333700418-.. Gear-Ring(1)

210

6343700363

6343700363-.. Gear-Planet(1)

211

6343700362

6343700362-.. Gear-Sun(1)

231

6333700383

6333700383-.. Carrier

282

630016S01282

630016S01282-.. Pin

283

630016S01283

630016S01283-.. Washer-Thrust

284

630016S01284

630016S01284-.. Button-Thrust

285

630010D01285

630010D01285-.. Pin

286

PAS10

PAS10-.. Plate-Side

287

PFTRC-5070

PFTRC-5070-.. Plate-Side

288

PFTRC-6085

PFTRC-6085-.. Plate-Side

311

6343700401

6343700401-.. Bar-Level

312

6353700976

6353700976-.. Pipe

351

630016S01351

630016S01351-.. Pin

401

P22226CD3S

P22226CD3S-.. Bearing-Roller

402

P23024

P23024-.. Bearing-Roller

403

PKT505825E4

PKT505825E4-.. Gauge-Needle

701

OSBM18110

OSBM18110-.. Bolt

702

OSBM1860

OSBM1860-.. Bolt

801

PTC12015014

PTC12015014-.. Seal-Oil

802

OORBP8

OORBP8-.. O-Ring

901

OSPV1030

OSPV1030-.. Pin-Spring

902

OBP12U

OBP12U-.. Plug

910

OSPV820

OSPV820-.. Pin-Spring

911

OSR45

OSR45-.. Ring-Snap

912

OSR50

OSR50-.. Ring-Snap

915

OSR85

OSR85-.. Ring-Snap

N*-2

RG16S24D7

RG16S24D7-. Reduction Gear

N102

630016S02102

630016S02102-.. Casing-Front
