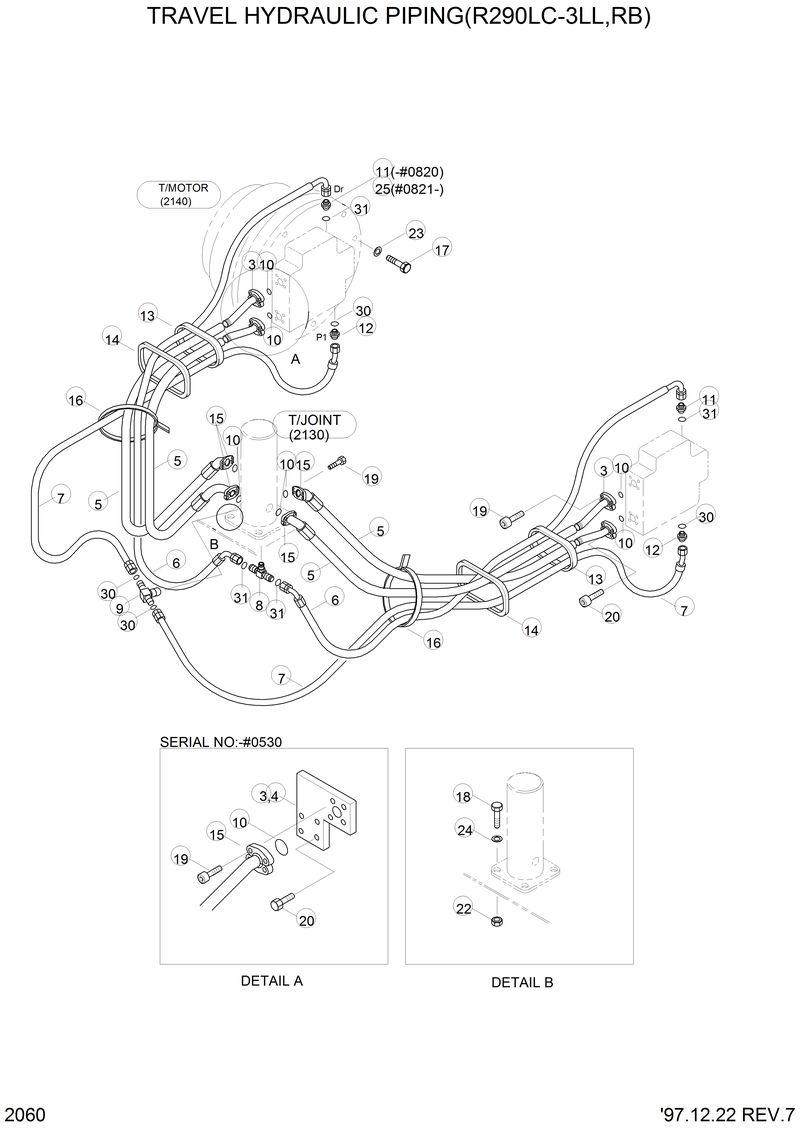

Запчасти Hyundai R290LC3LL TRAVEL HYDRAULIC PIPING(R290LC-3LL,RB)

E231-0270

E231-0270-Grommet

31E3-3119

31E3-3119-Grommet

S107-100302

S107-100302-Bolt-Socket

P010-110004

P010-110004-Connector

P010-110004

P010-110004-Connector

S107-120352

S107-120352-Bolt-Socket

P610-042064

P610-042064-Hose Assy-Thd 0x45

S107-100302

S107-100302-Bolt-Socket

P620-083054

P620-083054-Hose Assy-Thd 0x90

32E9-00800

32E9-00800-Flange Wa

P660-167348

P660-167348-Hose Assy-Thd

10

CO0423A

CO0423A-O-Ring

12

P010-110009

P010-110009-Connector

13

31E5-3034

31E5-3034-Grommet

14

31E3-3121

31E3-3121-Grommet

15

P173-160104

P173-160104-Flange-Split

16

S551-050203

S551-050203-Clamp-Band

17

S017-200652

S017-200652-Bolt-Hex

18

S017-160352

S017-160352-Bolt-Hex

20

S107-120554

S107-120554-Bolt

22

S207-161004

S207-161004-Nut-Hex

23

S411-200002

S411-200002-Washer-Spring

24

S411-160002

S411-160002-Washer-Spring

25

P101-108084

P101-108084-Connector-Long

3

31E9-0080

31E9-0080-Block

30

S631-011001

S631-011001-O-Ring

31

S631-018001

S631-018001-O-Ring

4

31E9-0081

31E9-0081-Block

5

P700-167350

P700-167350-Hose Assy-Flg 0x90

6

P620-083050

P620-083050-Hose Assy

7

P610-042060

P610-042060-Hose Assy-Thd

8

P310-080808

P310-080808-Tee

9

P310-040404

P310-040404-Tee
