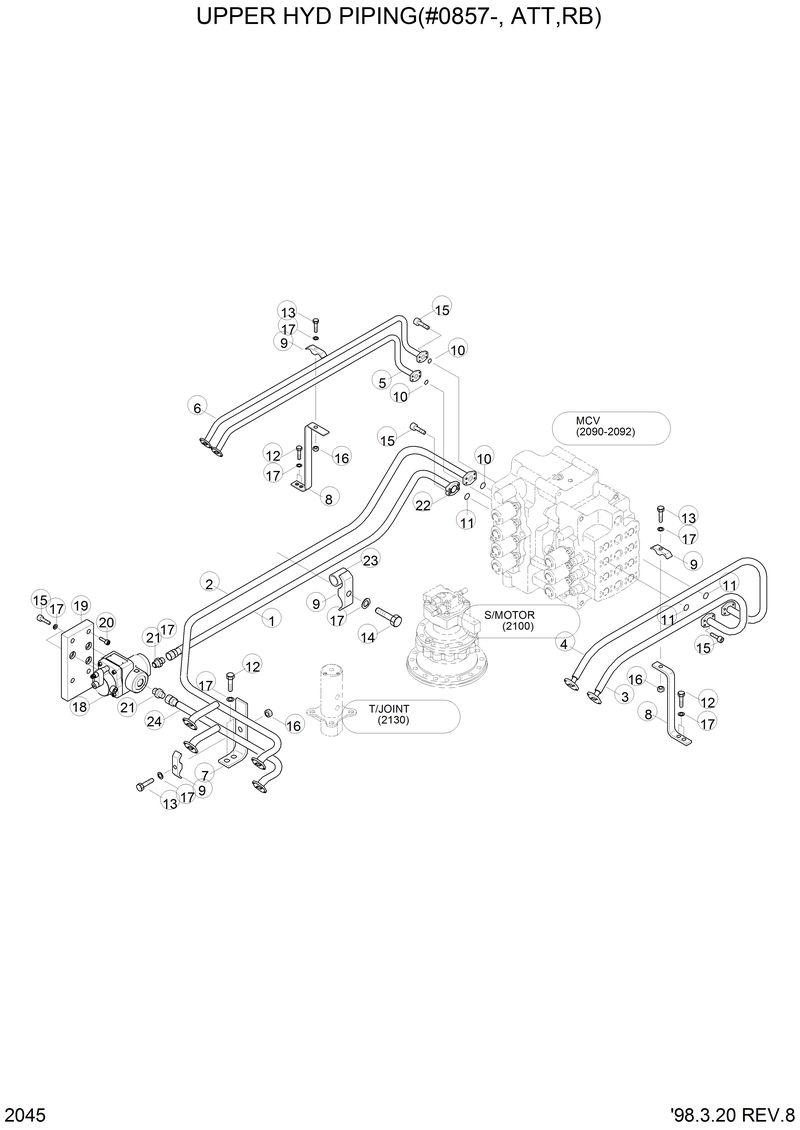

Запчасти Hyundai R290LC3LL UPPER HYD PIPING(#0857-,ATT,RB,RB)

31E9-13091

31E9-13091-Pipe Assy

31E9-13071

31E9-13071-Hose Assy

31E9-14050

31E9-14050-Bracket-Boom

1

31E9-13070

31E9-13070-Hose Assy

10

CO0418A

CO0418A-O-Ring

11

CO0423A

CO0423A-O-Ring

12

S017-100252

S017-100252-Bolt-Hex

13

S017-100702

S017-100702-Bolt-Hex

14

S017-100752

S017-100752-Bolt-Hex

15

S107-100302

S107-100302-Bolt-Socket

16

S205-101002

S205-101002-Nut-Hex

17

S411-100002

S411-100002-Washer-Spring

18

31EM-10040

31EM-10040-Holding Valve

19

31EN-12220

31EN-12220-Plate-Holding Vlv

2

31E9-13080

31E9-13080-Pipe Assy

20

S017-100402

S017-100402-Bolt-Hex

21

P010-110006

P010-110006-Connector

22

P173-160104

P173-160104-Flange-Split

23

31E9-53220

31E9-53220-Spacer-Pipe

24

31E9-13090

31E9-13090-Pipe Assy

3

31E9-13010

31E9-13010-Pipe Assy

4

31E9-13020

31E9-13020-Pipe Assy

5

31E9-13030

31E9-13030-Pipe Assy

6

31E9-13040

31E9-13040-Pipe Assy

7

31E9-13050

31E9-13050-Bracket-Boom

8

31E9-13060

31E9-13060-Bracket-Attach

9

31EM-12170

31EM-12170-Clamp-Pipe
