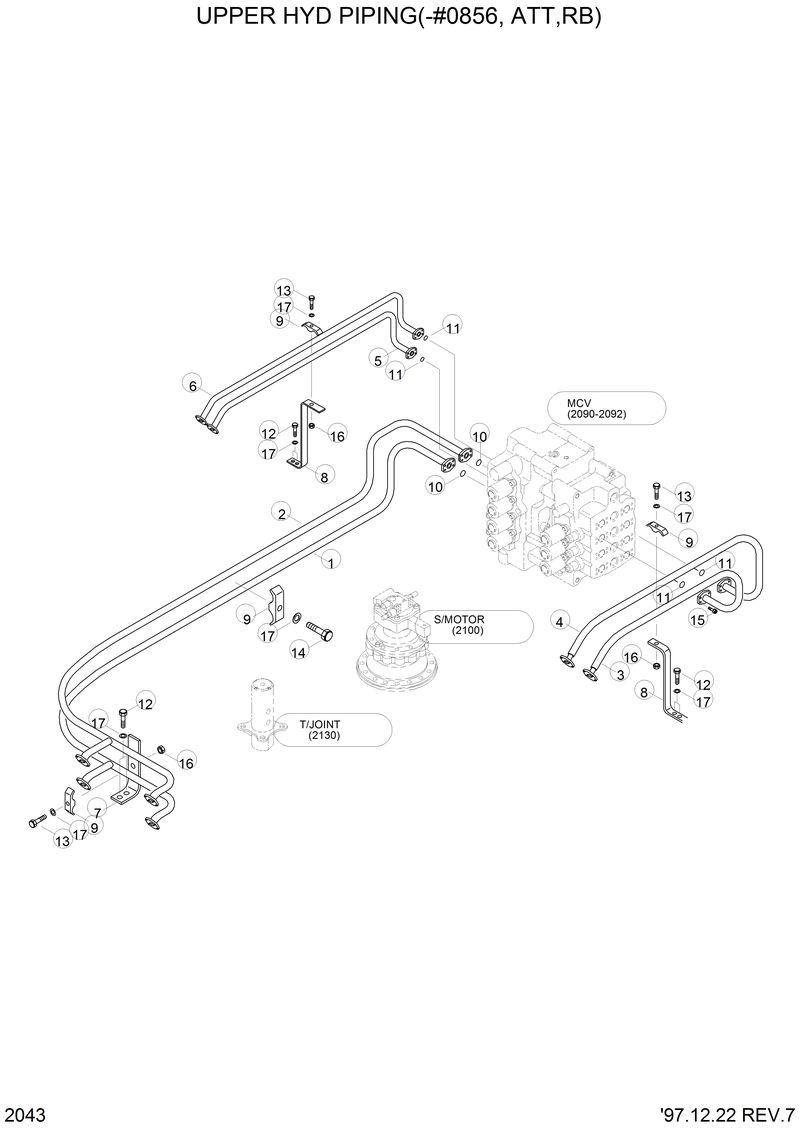

Запчасти Hyundai R290LC3LL UPPER HYD PIPING(-#0856,ATT,RB)

31EM-12170

31EM-12170-Clamp-Pipe

S017-100752

S017-100752-Bolt-Hex

S017-100702

S017-100702-Bolt-Hex

31E9-13060

31E9-13060-Bracket-Attach

31E9-13050

31E9-13050-Bracket-Boom

1

31E9-0014

31E9-0014-Pipe Assy

10

CO0418A

CO0418A-O-Ring

11

CO0423A

CO0423A-O-Ring

12

S017-100252

S017-100252-Bolt-Hex

13

S017-100602

S017-100602-Bolt-Hex

14

S017-100652

S017-100652-Bolt-Hex

15

S107-100304

S107-100304-Bolt-Socket

16

S205-101002

S205-101002-Nut-Hex

17

S411-100002

S411-100002-Washer-Spring

2

31E9-0015

31E9-0015-Pipe Assy

3

31E9-13010

31E9-13010-Pipe Assy

4

31E9-13020

31E9-13020-Pipe Assy

5

31E9-13030

31E9-13030-Pipe Assy

6

31E9-13040

31E9-13040-Pipe Assy

7

31E9-0031

31E9-0031-Bracket-Boom

8

31E9-0032

31E9-0032-Bracket-Attach

9

E131-0121

E131-0121-Clamp-Pipe
