Запчасти Hyundai R290LC3LL TURBOCHARGER 2

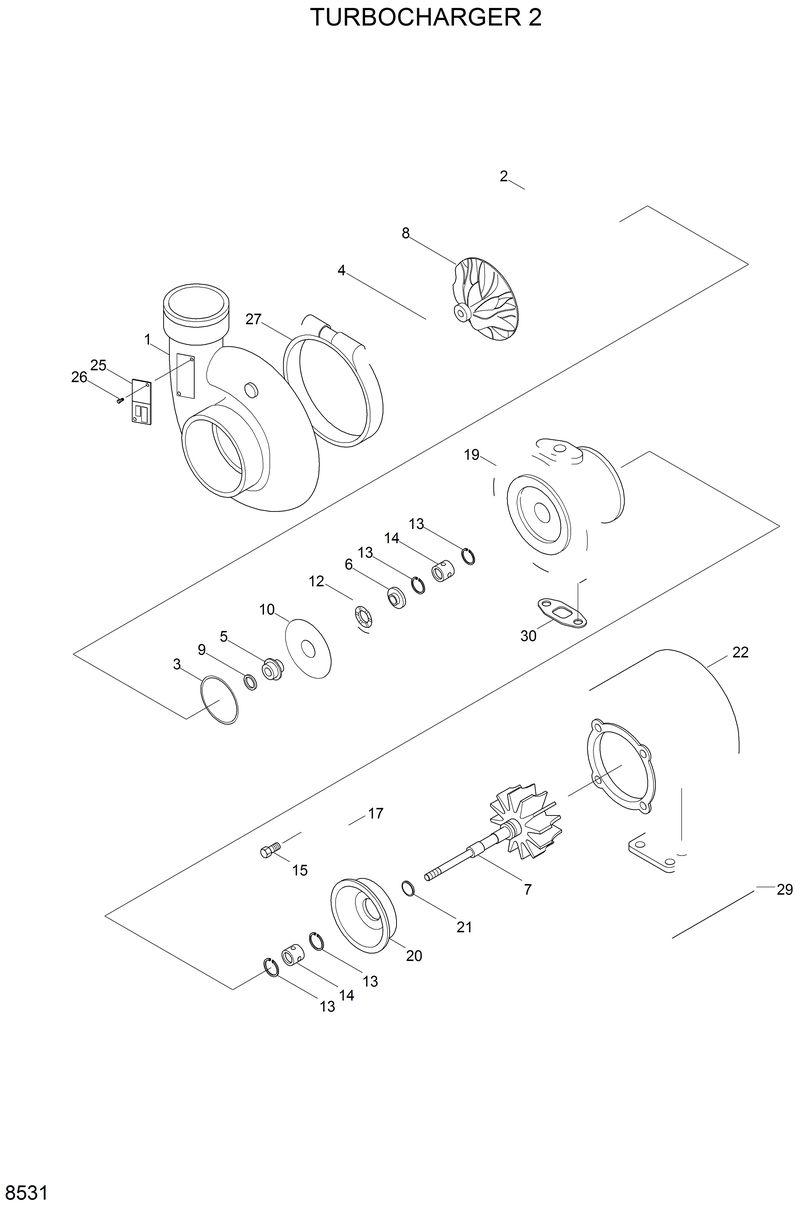

Схема запчастей Hyundai R290LC3LL - TURBOCHARGER 2

Артикул

Название

Примечание

Количество

3518004

3518004-.. Washer-Lock

3524034

3524034-. Turbocharger

3545652

3545652-. Kit-Turbo Repair

3802149

3802149-Turbo Repair-Kit

3523176

3523176-.. Seal-Rect Ring

3545527

3545527-. Rotor Assembly

*

3802126

3802126-Turbocharger

*

3545575

3545575-Kit-Turbo Gasket

1

3521693

3521693-. Housing

10

3503668

3503668-. Baffle-Oil

11

3503347

3503347-.. Screw-Flat Hd Cap

11

3503347

3503347-. Screw-Flat Hd Cap

12

3525739

3525739-.. Bearing-Tur Thrust

12

3525739

3525739-. Bearing-Tur Thrust

13

3762259

3762259-. Ring-Retaining

13

3762259

3762259-.. Ring-Retaining

14

3503100

3503100-. Bearing-Turbo

14

3503100

3503100-.. Bearing-Turbo

15

3759917

3759917-. Screw

15

3759917

3759917-.. Screw

16

3501102

3501102-.. Lockplate

17

3501188

3501188-. Plate-Clamping

18

3527184

3527184-.. Screw-Hex Hd Cap

18

3527184

3527184-. Screw-Hex Hd Cap

19

3520702

3520702-. Housing-Turbo Heat

2

3522801

3522801-. Diffuser

20

3519302

3519302-. Shield

21

3756754

3756754-. Seal-Split Ring

21

3756754

3756754-.. Seal-Split Ring

22

3522747

3522747-. Housing-Turbine

23

3523958

3523958-. O-Ring

26

3519163

3519163-. Screw-Drive

27

3521832

3521832-. Clamp-V Band

28

3503335

3503335-. Nut-Regular Hex

29

3911941

3911941-. Gasket-Turbocharger

29

3911941

3911941-. Gasket-Turbocharger

3

3502449

3502449-.. Seal-Rect Ring

3

3502449

3502449-. Seal-Rect Ring

30

3914388

3914388-. Gasket-Turbocharger

30

3914388

3914388-. Gasket-Turbocharger

4

3503562

3503562-.. Nut-Lock

5

3503662

3503662-.. Slinger-Oil

6

3518980

3518980-.. Collar-Thrust

7

3522880

3522880-.. Shaft & Wheel

8

3521709

3521709-.. Impeller-Turbo

9

3758848

3758848-. Seal-Split Ring

9

3758848

3758848-.. Seal-Split Ring

N25

3525562

3525562-. Dataplate

Выбрано товаров: 48
