Запчасти Hyundai R290LC3LL ENGINE MOUNTING(LOW EMISSION,LL,RB)

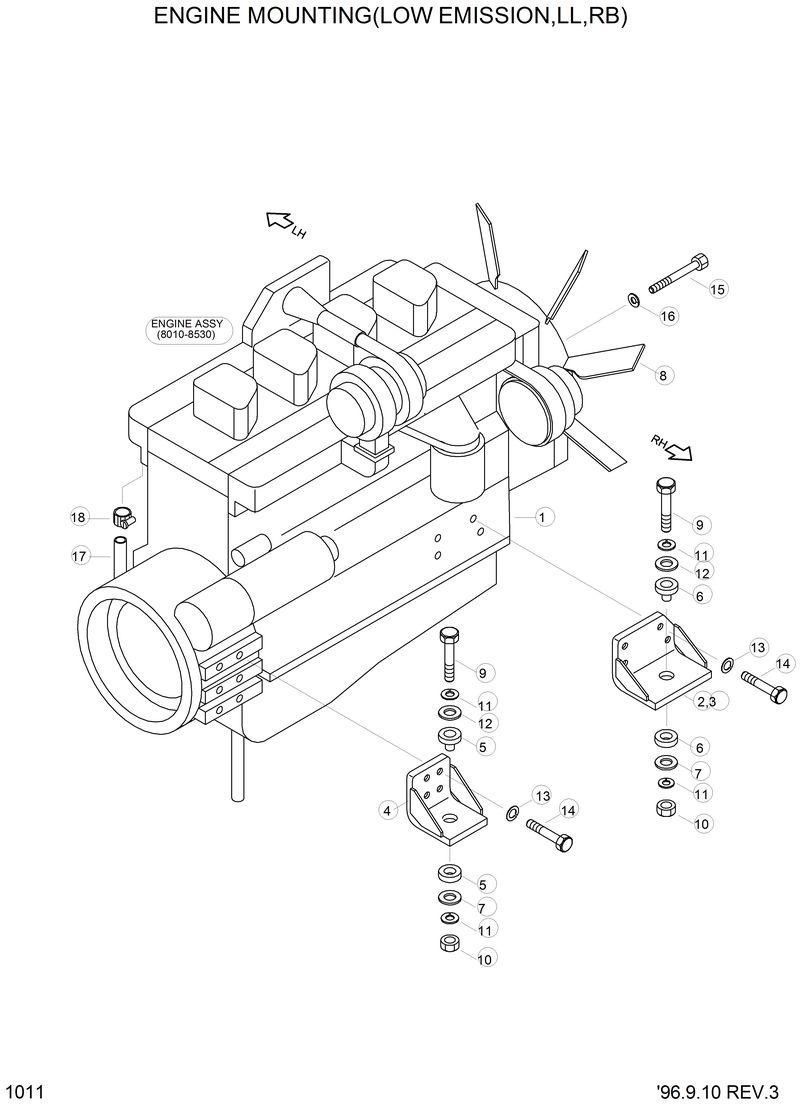

Схема запчастей Hyundai R290LC3LL - ENGINE MOUNTING(LOW EMISSION,LL,RB)

Артикул

Название

Примечание

Количество

1

11E9-03010

11E9-03010-Engine Assy

10

S207-221002

S207-221002-Nut-Hex

11

S411-220002

S411-220002-Washer-Spring

12

S441-220004

S441-220004-Washer-Hardened

13

S411-120002

S411-120002-Washer-Spring

14

S017-120302

S017-120302-Bolt-Hex

15

S017-100852

S017-100852-Bolt-Hex

16

S403-102002

S403-102002-Washer-Plain

17

11E9-02060

11E9-02060-Hose-Breather

18

S520-027000

S520-027000-Clamp

2

11E9-02020

11E9-02020-Mount Wa-Rh,Eng

3

11E9-02030

11E9-02030-Mount Wa-Lh,Eng

4

11E9-02050

11E9-02050-Mount Wa-Engine

5

11EK-10070

11EK-10070-Resilient

6

11EK-10060

11EK-10060-Resilient

7

E111-1009

E111-1009-Washer

8

11E9-03040

11E9-03040-Fan

9

S017-221254

S017-221254-Bolt-Hex

Выбрано товаров: 18
