Запчасти Hyundai R290LC3LL MAIN PUMP(R290LC-3LL,RB)

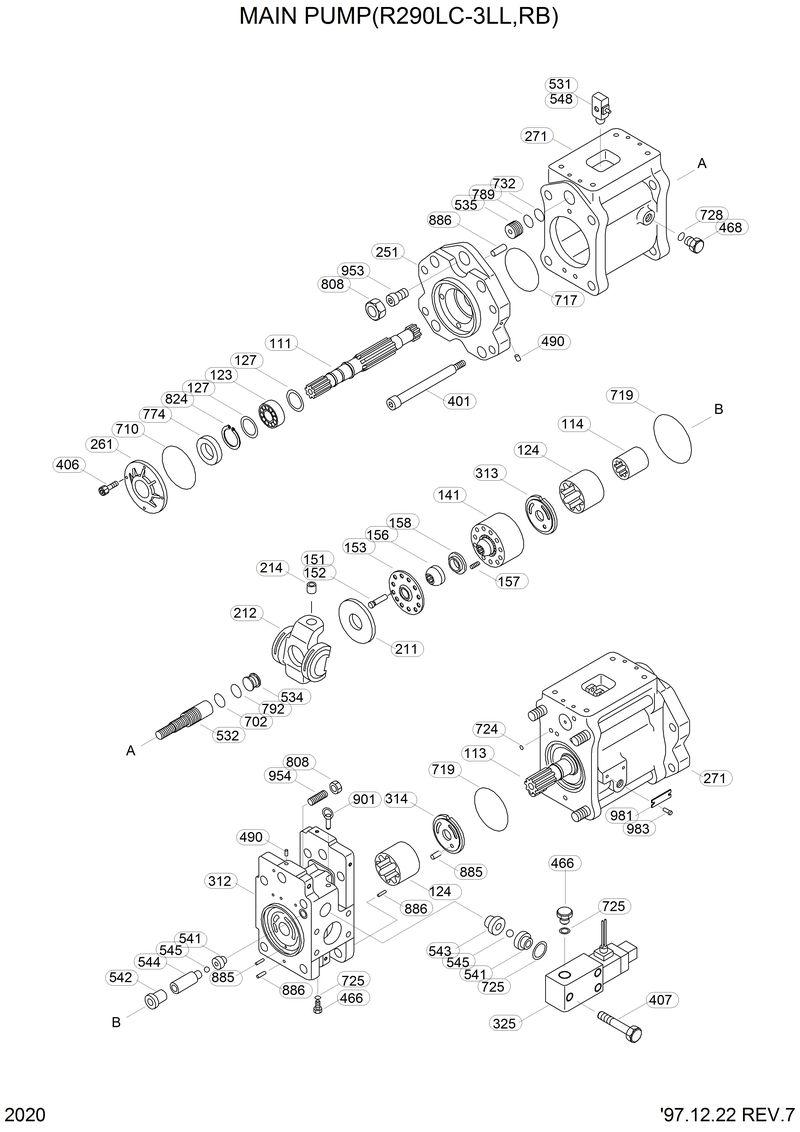

Схема запчастей Hyundai R290LC3LL - MAIN PUMP(R290LC-3LL,RB)

Артикул

Название

Примечание

Количество

V9511138109

V9511138109-. Eppr Valve

31E9-03010

31E9-03010-Main Pump

2902440-0397A

2902440-0397A-. Gear Pump

2923800908

2923800908-.. Plate-Swash

OORBG105

OORBG105-.. O-Ring

OORBG105

OORBG105-.. O-Ring

38A0L-314N

38A0L-314N-.. Plate(Lh)-Valve

K3V140DT-1R2R

K3V140DT-1R2R-. Main Pump Unit

*

11E9-1501

11E9-1501-Main Pump

*-1

K3V140DT-112R

K3V140DT-112R-. Main Pump Unit

*-2

293H-9N29

293H-9N29-. Regulator

*-3

3803830583-2

3803830583-2-. Gear Pump

*-4

V8701302622

V8701302622-. Proportional Valve

111

2933800890

2933800890-.. Shaft-Drive(Fr)

113

2933800903

2933800903-.. Shaft-Drive(Rr)

114

2953801867

2953801867-.. Coupling-Spline

123

PNUP309E

PNUP309E-.. Bearing-Roller

124

PRNA6932

PRNA6932-.. Bearing-Needle

127

2953802066

2953802066-.. Spacer-Bearing

141

2933800878

2933800878-.. Block-Cylinder

151

@

@-.. Piston

152

@

@-.. Shoe

153

2943800488

2943800488-.. Plate-Set

156

2953801840

2953801840-.. Bushing-Spherical

157

2953801842

2953801842-.. Spring-Cylinder

158

2953801841

2953801841-.. Spacer

211

871A00AA-124

871A00AA-124-.. Plate-Shoe

212

2933800908

2933800908-.. Plate-Swash

214

P1R222616

P1R222616-.. Bushing

251

2923800936

2923800936-.. Support-Sp

261

2943800518

2943800518-.. Cover(Fr)-Seal

263

2933800906

2933800906-.. Cover-Rear

271

2923800904

2923800904-.. Casing-Pump

312

2923801022

2923801022-.. Valve-Block

313

38A0R-313N

38A0R-313N-.. Plate Valve(Rh)

314

38A0R-314N

38A0R-314N-.. Plate(Lh)-Valve

325

2933800928

2933800928-.. Casing-Valve

401

2953801868

2953801868-.. Screw

406

OSBM820

OSBM820-.. Screw-Hex Soc Hd

407

OSBM655

OSBM655-.. Screw

413

OSBM1070

OSBM1070-.. Screw

466

OVP14

OVP14-.. Plug

468

OVP34

OVP34-.. Plug

490

PBP116-2403

PBP116-2403-.. Plug

532

2943800503

2943800503-.. Pistion-Servo

534

2953801865

2953801865-.. Stopper(L)

535

2953801864

2953801864-.. Stopper(S)

542

2953802044

2953802044-.. Spacer

545

ODW732

ODW732-.. Ball-Steel

702

OORBG40

OORBG40-.. O-Ring

717

PCPP170

PCPP170-.. O-Ring

719

PCPP165

PCPP165-.. O-Ring

724

OORBP8

OORBP8-.. O-Ring

725

OORBP11

OORBP11-.. O-Ring

728

OORBP24

OORBP24-.. O-Ring

732

OORBP21

OORBP21-.. O-Ring

774

PSPD55788F

PSPD55788F-.. Seal-Oil

789

OT2BP21

OT2BP21-.. Ring-Back Up

792

OT2BG40

OT2BG40-.. Ring-Back Up

808

ORNM20

ORNM20-.. Nut

824

OSR45

OSR45-.. Ring-Snap

885

PJR1014

PJR1014-.. Pin-2

886

OSPV614

OSPV614-.. Pin-Spring

901

OEBM12

OEBM12-.. Bolt-Eye

953

PSSSM2035

PSSSM2035-.. Screw-Set

954

2953801866

2953801866-.. Screw-Set

981

PNPA-2550A

PNPA-2550A-.. Plate-Name

983

OSK2548

OSK2548-.. Pin

N531

2943800502

2943800502-.. Pin-Tilting

N541

2953802029

2953802029-.. Seat

N543

2953802030

2953802030-.. Stopper(1)

N544

2953802043

2953802043-.. Stopper(2)

N548

2953802202

2953802202-.. Pin-Feed Back

S

2953802049

2953802049-Check Assy 2

S

2953802048

2953802048-Check Assy 1

S

2953801991

2953801991-Swash Plate Sub Assy

S

2953801993

2953801993-Cylinder Assy

S

2953802069

2953802069-Cylinder Assy-Lh

S

2953801992

2953801992-Cylinder Assy

S

2953802068

2953802068-Cylinder Assy

S

3853802468

3853802468-Piston Assy

S

38B00-11

38B00-11-Piston Assy

S

2953801988

2953801988-Tilting Pin Sub Assy

Выбрано товаров: 83
