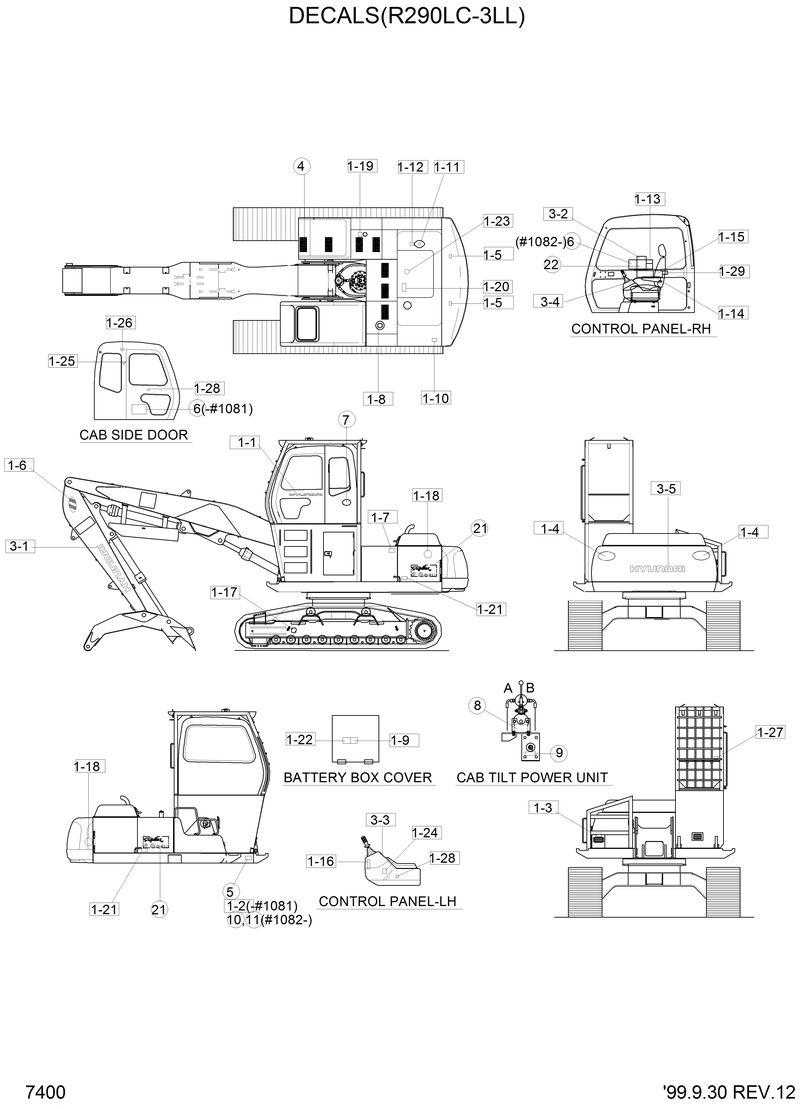

Запчасти Hyundai R290LC3LL DECALS(R290LC-3LL)

91W1-00201

91W1-00201-Decal Kit(A)

91FL-00211

91FL-00211-Service Instruction

1

91W1-00200

91W1-00200-Decal Kit(A)

1-1

91E1-21210

91E1-21210-. Trade Mark-Cab

1-10

91E1-26020

91E1-26020-. Air Cleaner

1-11

91E1-26030

91E1-26030-. Radiator Cap

1-12

91E1-26040

91E1-26040-. Antifreeze

1-13

91E1-28020

91E1-28020-. Air Vent

1-14

91E1-28051

91E1-28051-. Safety Instruction

1-15

91W1-28080

91W1-28080-. Max Height Reach

1-16

91E1-29060

91E1-29060-. Safety Ideogram

1-17

91E1-29080

91E1-29080-. Slinging Ideogram

1-18

91E1-24051

91E1-24051-. Side Keep Clear

1-19

91E1-25511

91E1-25511-. Fueling

1-2

91E1-14110

91E1-14110-. Name Plate

1-20

91E1-26051

91E1-26051-. Decal-Exhaust

1-21

91E1-26060

91E1-26060-. Stay-Fix

1-22

91E1-26070

91E1-26070-. Battery-Decal

1-23

91E1-26090

91E1-26090-. Mark-Hood

1-24

91E1-28112

91E1-28112-. Safety Lever

1-25

91E1-28220

91E1-28220-. Logo-Fire

1-26

91E1-28230

91E1-28230-. Logo-Hammer

1-27

91E1-28280

91E1-28280-. Safe-Front Window

1-28

91E1-28310

91E1-28310-. Latch-Decal

1-29

91E1-28290

91E1-28290-. Service Socket

1-3

91W1-24030

91W1-24030-. Transporting

1-4

91E1-24042

91E1-24042-. Keep Clear

1-5

91E1-24520

91E1-24520-. Lifting Eye

1-6

91E1-24610

91E1-24610-. Safety Travel

1-7

91W1-25010

91W1-25010-. Hyd Oil Level

1-8

91E1-25020

91E1-25020-. Hyd Oil Lub

1-9

91E1-26010

91E1-26010-. Electrolyte

10

91E1-14110

91E1-14110-Name Plate

11

91E1-14130

91E1-14130-Name Plate

21

91W2-10110

91W2-10110-Model Name-R290lc3ll

22

91FL-11210

91FL-11210-Lift Chart

3

91FL-00220

91FL-00220-Decal Kit(B)

3-1

91E1-21080

91E1-21080-. Trade Mark-Boom

3-2

91FL-00230

91FL-00230-. Control Ideogram

3-3

91FL-00240

91FL-00240-. Control Ideogram-Lh

3-4

91FL-00250

91FL-00250-. Control Ideogram-Rh

3-5

91E1-21120

91E1-21120-. Trade Mark-Cwt

4

91E1-26300

91E1-26300-Step Tread

5

91EK-12010

91EK-12010-Rivet

6

91FL-00210

91FL-00210-Service Instruction

7

91E1-27110

91E1-27110-Low Emission Eng

8

91W1-24011

91W1-24011-Tilting Cylinder-Decal

9

91W1-24021

91W1-24021-Power Sw-Cab Tilting
