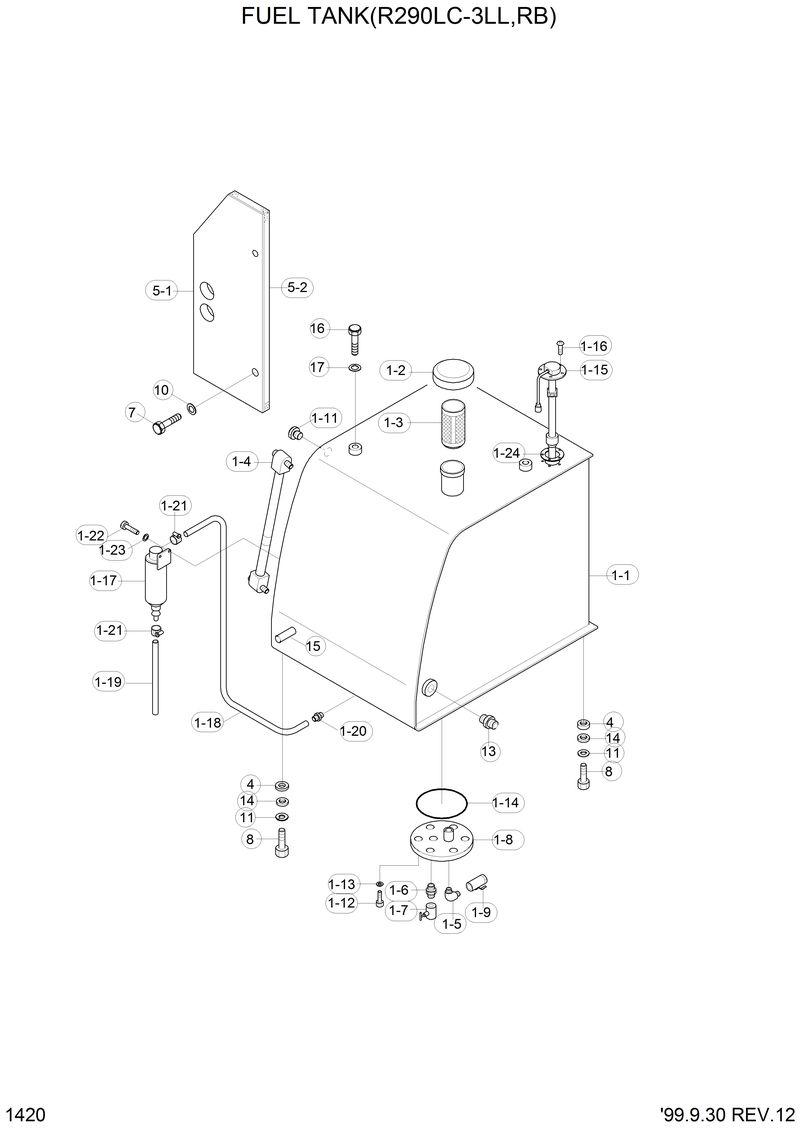

Запчасти Hyundai R290LC3LL FUEL TANK(R290LC-3LL,RB)

31E1-10300

31E1-10300-. Strainer

1

@

@-Fuel Tank Assy

1-1

31E9-02111

31E9-02111-. Fuel Tank Wa

1-11

P220-430202

P220-430202-. Plug

1-12

S017-100352

S017-100352-. Bolt-Hex

1-13

S411-100002

S411-100002-. Washer-Spring

1-14

S632-175002

S632-175002-. O-Ring

1-15

24E7-00170

24E7-00170-. Sender-Fuel

1-16

S161-050162

S161-050162-. Screw-Cross R/Rd

1-17

E111-2501

E111-2501-. Water Separator

1-18

E111-2502

E111-2502-. Hose-Fuel

1-19

11E5-2501

11E5-2501-. Hose-Drain

1-2

E131-1038

E131-1038-. Filler Cap

1-20

11E8-2601

11E8-2601-. Connector

1-21

S520-015000

S520-015000-. Clamp

1-22

S015-080252

S015-080252-. Bolt-Hex

1-23

S411-080002

S411-080002-. Washer-Spring

1-24

E128-1053

E128-1053-. Gasket

1-3

E131-1039

E131-1039-. Strainer

1-4

E131-0251

E131-0251-. Level Gauge

1-5

31E5-3054

31E5-3054-. Elbow

1-6

31E5-3049

31E5-3049-. Fitting

1-7

E131-1006

E131-1006-. Valve-Needle

1-8

31E9-1029

31E9-1029-. Cover Assy

1-9

11L1-3020

11L1-3020-. Fuel Stop Valve

10

S403-122002

S403-122002-Washer-Plain

11

S411-200002

S411-200002-Washer-Spring

13

P090-101008

P090-101008-Connector-Hose

14

91E6-60200

91E6-60200-Washer-Hardened

15

31FD-30170

31FD-30170-Bar-Lock

16

S017-120202

S017-120202-Bolt-Hex

17

S411-120002

S411-120002-Washer-Spring

4

E231-0134

E231-0134-Shim(1.0§®)

5

71E9-54061

71E9-54061-Screen Assy-Fuel Tank

5-1

71E9-54071

71E9-54071-. Plate-Screen

5-2

71E9-54081

71E9-54081-. Sponge

7

S017-120352

S017-120352-Bolt-Hex

8

S017-200404

S017-200404-Bolt-Hex
