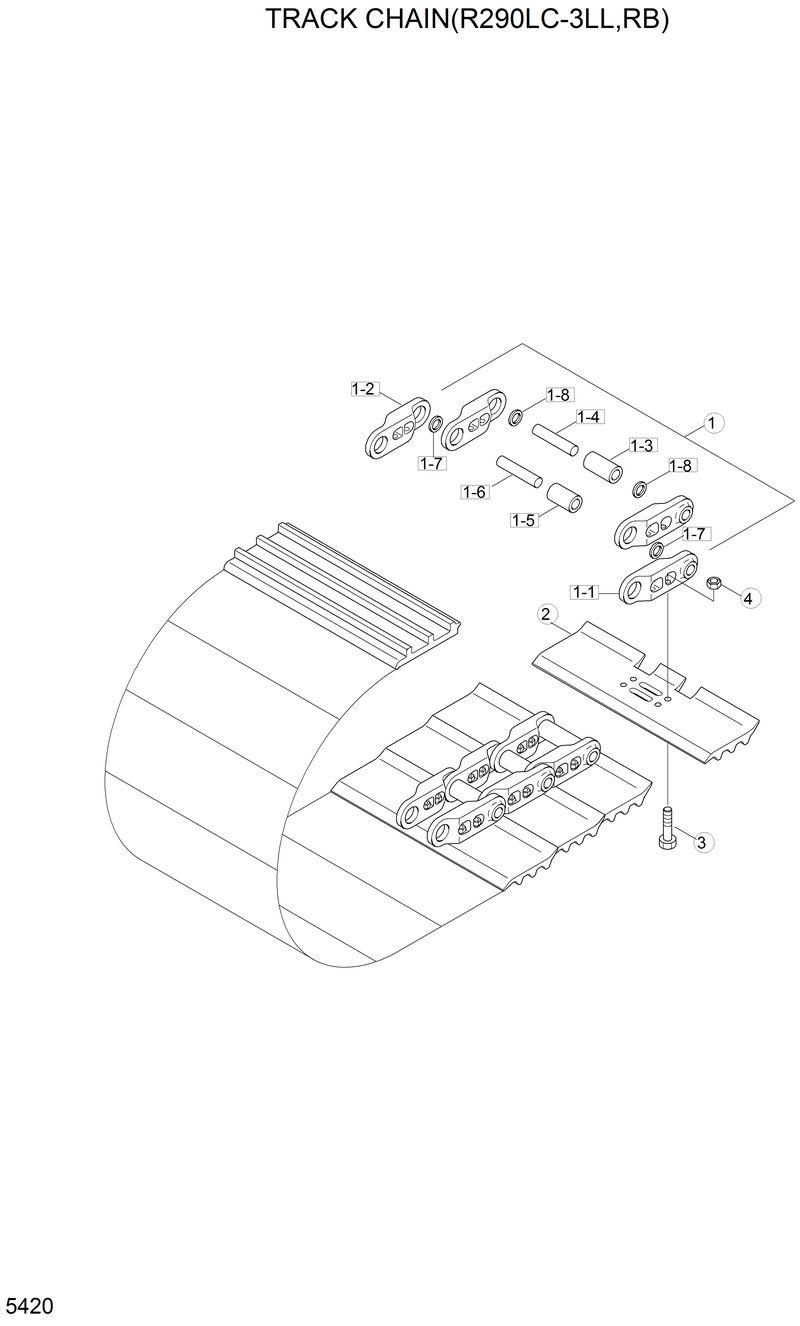

Запчасти Hyundai R290LC3LL TRACK CHAIN(R290LC-3LL,RB)

*

81W2-10100

81W2-10100-Track Chain Assy

1

83E5-2501

83E5-2501-. Track Link Assy

1-1

81E5-2511

81E5-2511-.. Track Link-Rh

1-2

81E5-2512

81E5-2512-.. Track Link-Lh

1-3

81E5-2515

81E5-2515-.. Bushing

1-4

81E5-2516

81E5-2516-.. Pin

1-5

81E5-2517

81E5-2517-.. Master Bushing

1-6

81E5-2518

81E5-2518-.. Master Pin

1-7

81E5-2519

81E5-2519-.. Callar

1-8

81E5-2520

81E5-2520-.. Seal-Track

2

81W2-10010

81W2-10010-. Shoe-Track

3

81W2-10020

81W2-10020-. Bolt-Track

4

81E5-2504

81E5-2504-. Nut
