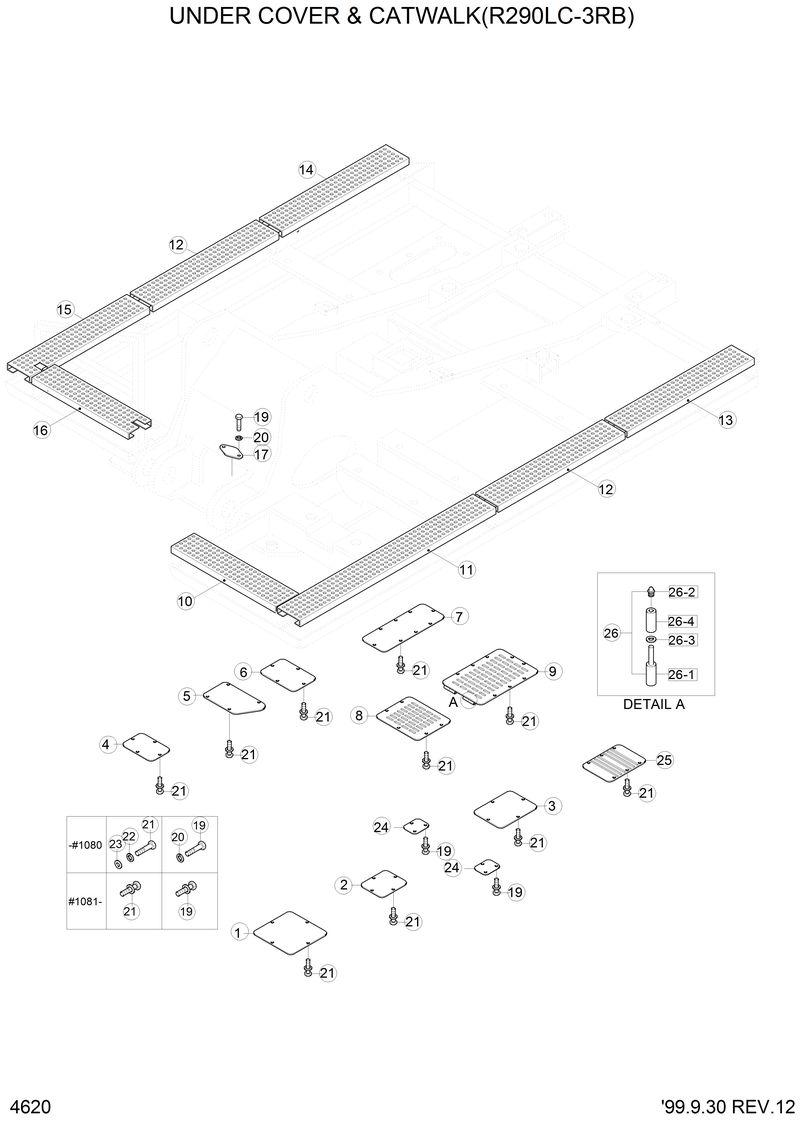

Запчасти Hyundai R290LC3LL UNDER COVER & CATWALK(R290LC-3RB)

S037-123052

S037-123052-Bolt-W/Washer

S037-102552

S037-102552-Bolt-W/Washer

1

41FD-10110

41FD-10110-Under Cover-A

10

41FD-10210

41FD-10210-Catwalk-A

11

41FD-10220

41FD-10220-Catwalk-B

12

41FD-10230

41FD-10230-Catwalk-C

13

41FD-10240

41FD-10240-Catwalk-D

14

41FD-10250

41FD-10250-Catwalk-E

15

41FL-10120

41FL-10120-Catwalk-F

16

41FL-10130

41FL-10130-Catwalk-G

17

41EC-13080

41EC-13080-Cover

19

S017-100252

S017-100252-Bolt-Hex

2

41FD-10120

41FD-10120-Under Cover-B

20

S411-100002

S411-100002-Washer-Spring

21

S017-120302

S017-120302-Bolt-Hex

22

S411-120002

S411-120002-Washer-Spring

23

S403-125002

S403-125002-Washer-Plain

24

41FD-10280

41FD-10280-Cover

25

41FD-10290

41FD-10290-Under Cover-J

26

P90-0064

P90-0064-Hinge Assy

26-1

71FD-51200

71FD-51200-. Hinge-A

26-2

71FD-51130

71FD-51130-. Hinge-B

26-3

71FD-03340

71FD-03340-. Washer

26-4

71FD-03350

71FD-03350-. Nipple-Grease

3

41FD-10130

41FD-10130-Under Cover-C

4

41FD-10140

41FD-10140-Under Cover-D

5

41FD-10151

41FD-10151-Under Cover-E

6

41FD-10160

41FD-10160-Under Cover-F

7

41FD-10170

41FD-10170-Under Cover-G

8

41FD-10180

41FD-10180-Under Cover-H

9

41FD-10191

41FD-10191-Under Cover-I
