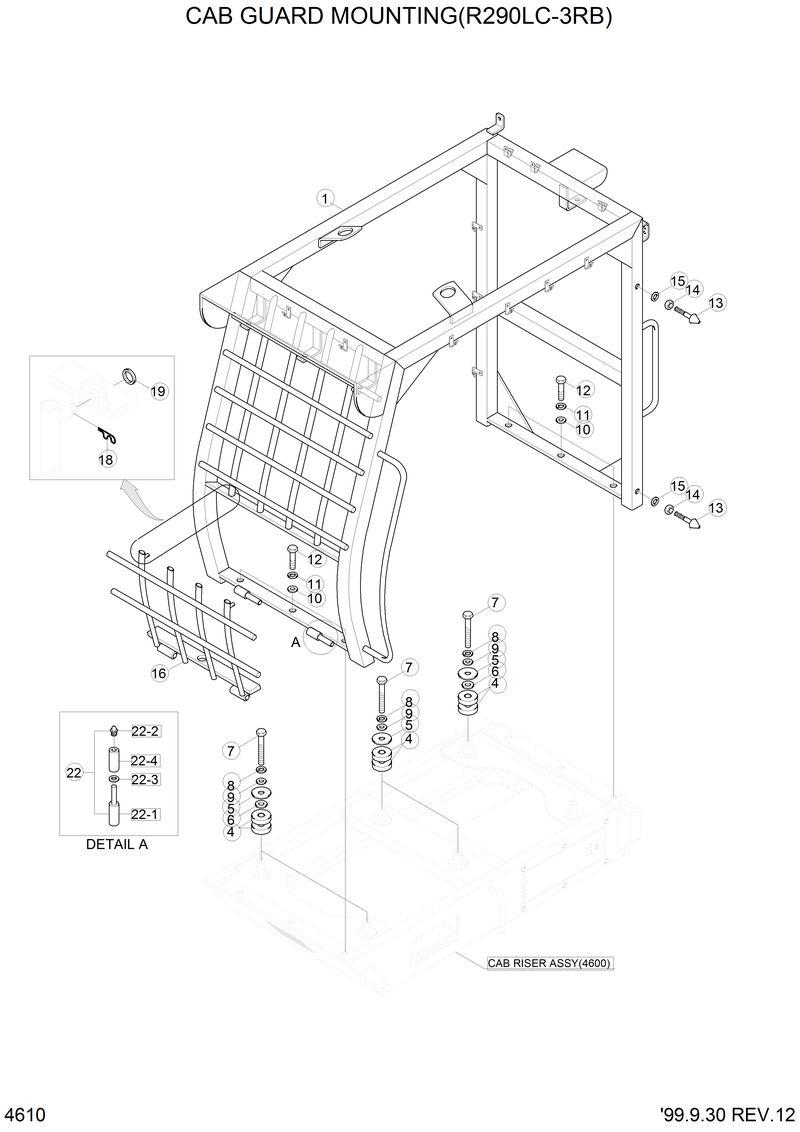

Запчасти Hyundai R290LC3LL CAB GUARD MOUNTING(R290LC-3RB)

1

71FL-00011

71FL-00011-Cab Guard Wa

10

S403-201002

S403-201002-Washer-Plain

11

S411-200002

S411-200002-Washer-Spring

12

S017-200502

S017-200502-Bolt-Hex

13

E171-1178

E171-1178-Rubber-Bumper

14

S205-101002

S205-101002-Nut-Hex

15

S403-102002

S403-102002-Washer-Plain

16

71FL-00181

71FL-00181-Hatch Wa-Escape

18

S501-200002

S501-200002-Pin-Self Locking

19

S441-200002

S441-200002-Washer-Hardened

22

P90-0064

P90-0064-Hinge Assy

22-1

71FD-51200

71FD-51200-. Hinge-A

22-2

71FD-51130

71FD-51130-. Hinge-B

22-3

71FD-03340

71FD-03340-. Washer

22-4

71FD-03350

71FD-03350-. Nipple-Grease

4

71FD-00080

71FD-00080-Spacer

5

71EH-00180

71EH-00180-Spacer

6

71FD-00070

71FD-00070-Spacer

7

S403-161002

S403-161002-Washer-Plain

8

S411-160002

S411-160002-Washer-Spring

9

S017-160902

S017-160902-Bolt-Hex
