Запчасти Hyundai R290LC3LL CAB GUARD & CAB TILTING(R290LC-3LL)

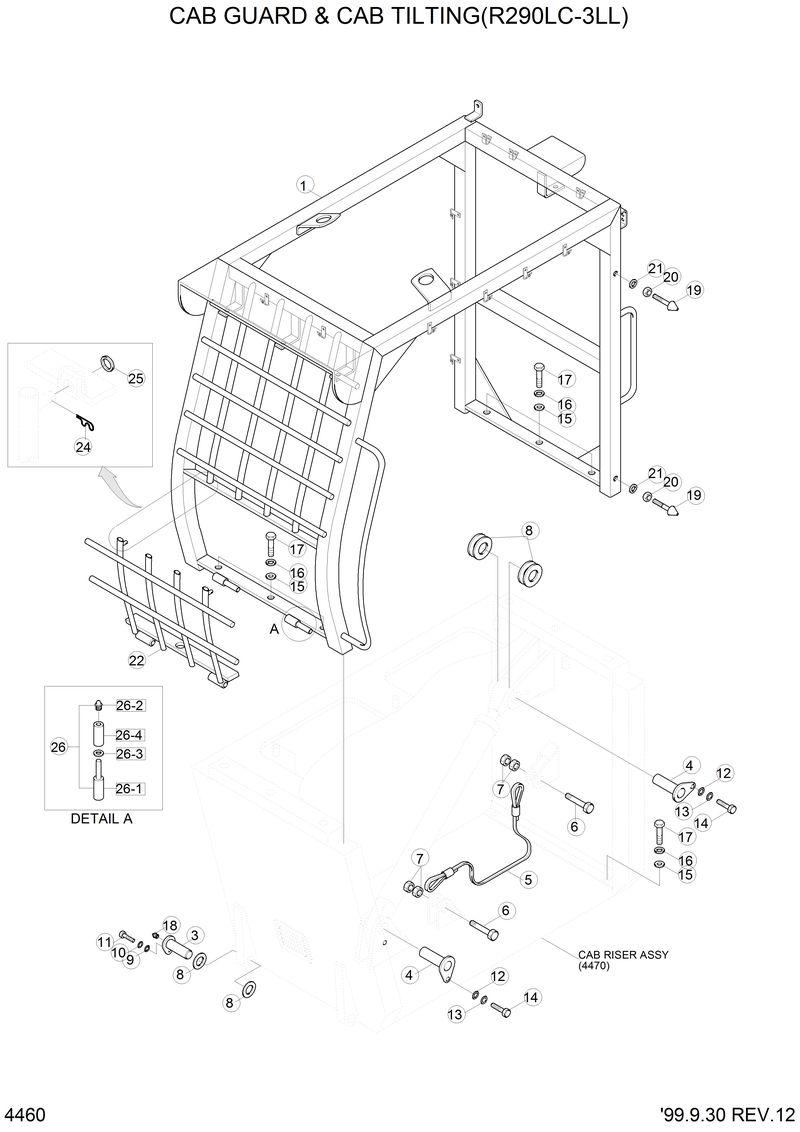

Схема запчастей Hyundai R290LC3LL - CAB GUARD & CAB TILTING(R290LC-3LL)

Артикул

Название

Примечание

Количество

1

71FL-00011

71FL-00011-Cab Guard Wa

10

S411-100002

S411-100002-Washer-Spring

11

S017-100202

S017-100202-Bolt-Hex

12

S403-122002

S403-122002-Washer-Plain

13

S411-120002

S411-120002-Washer-Spring

14

S017-120302

S017-120302-Bolt-Hex

15

S403-201002

S403-201002-Washer-Plain

16

S411-200002

S411-200002-Washer-Spring

17

S017-200452

S017-200452-Bolt-Hex

18

S651-810001

S651-810001-Nipple-Grease

19

E171-1178

E171-1178-Rubber-Bumper

20

S205-101002

S205-101002-Nut-Hex

21

S403-102002

S403-102002-Washer-Plain

21

S403-102002

S403-102002-Washer-Plain

22

71FL-00181

71FL-00181-Hatch Wa-Escape

24

S501-200002

S501-200002-Pin-Self Locking

25

71FD-00090

71FD-00090-Washer-Rubber

26

P90-0064

P90-0064-Hinge Assy

26-1

71FD-51200

71FD-51200-. Hinge-A

26-2

71FD-51130

71FD-51130-. Hinge-B

26-3

71FD-03340

71FD-03340-. Washer

26-4

71FD-03350

71FD-03350-. Nipple-Grease

3

71FL-00080

71FL-00080-Pin Wa

4

71FL-00110

71FL-00110-Pin Wa

5

71FL-00140

71FL-00140-Wire Assy-Safety

6

24893R1

24893R1-Bolt

7

25529R1

25529R1-Nut-Hex

8

S390-040075

S390-040075-Shim-Round

Выбрано товаров: 28
