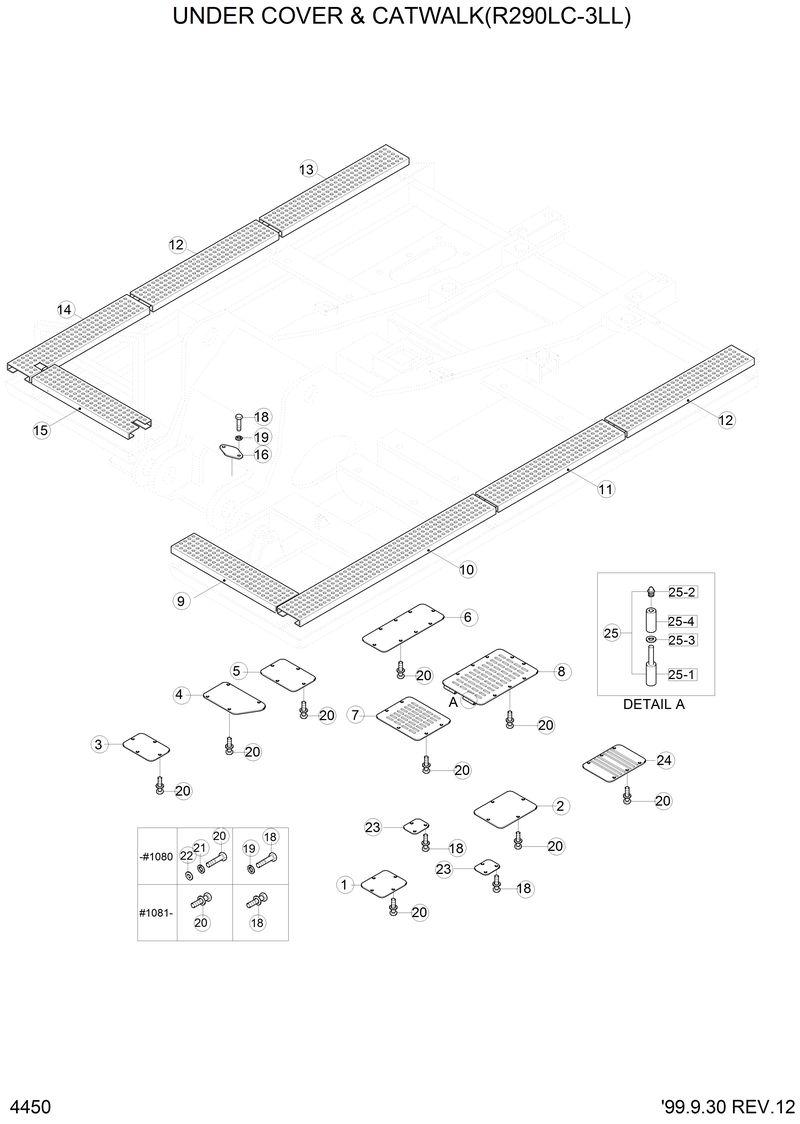

Запчасти Hyundai R290LC3LL UNDER COVER & CATWALK(R290LC-3LL)

S037-123052

S037-123052-Bolt-W/Washer

S037-102552

S037-102552-Bolt-W/Washer

1

41FD-10120

41FD-10120-Under Cover-B

10

41FD-10220

41FD-10220-Catwalk-B

11

41FD-10230

41FD-10230-Catwalk-C

12

41FD-10240

41FD-10240-Catwalk-D

13

41FD-10250

41FD-10250-Catwalk-E

14

41FL-10120

41FL-10120-Catwalk-F

15

41FL-10130

41FL-10130-Catwalk-G

16

41EC-13080

41EC-13080-Cover

18

S017-100252

S017-100252-Bolt-Hex

19

S411-100002

S411-100002-Washer-Spring

2

41FD-10130

41FD-10130-Under Cover-C

20

S017-120302

S017-120302-Bolt-Hex

21

S411-120002

S411-120002-Washer-Spring

22

S403-125002

S403-125002-Washer-Plain

23

41FD-10280

41FD-10280-Cover

24

41FD-10290

41FD-10290-Under Cover-J

25

P90-0064

P90-0064-Hinge Assy

25-1

71FD-51200

71FD-51200-. Hinge-A

25-2

71FD-51130

71FD-51130-. Hinge-B

25-3

71FD-03340

71FD-03340-. Washer

25-4

71FD-03350

71FD-03350-. Nipple-Grease

3

41FD-10140

41FD-10140-Under Cover-D

4

41FD-10151

41FD-10151-Under Cover-E

5

41FD-10160

41FD-10160-Under Cover-F

6

41FD-10170

41FD-10170-Under Cover-G

7

41FD-10180

41FD-10180-Under Cover-H

8

41FD-10191

41FD-10191-Under Cover-I

9

41FL-10110

41FL-10110-Catwalk-A
