Запчасти Hyundai R290LC3LL ENGINE HOOD(R290LC-3LL,RB)

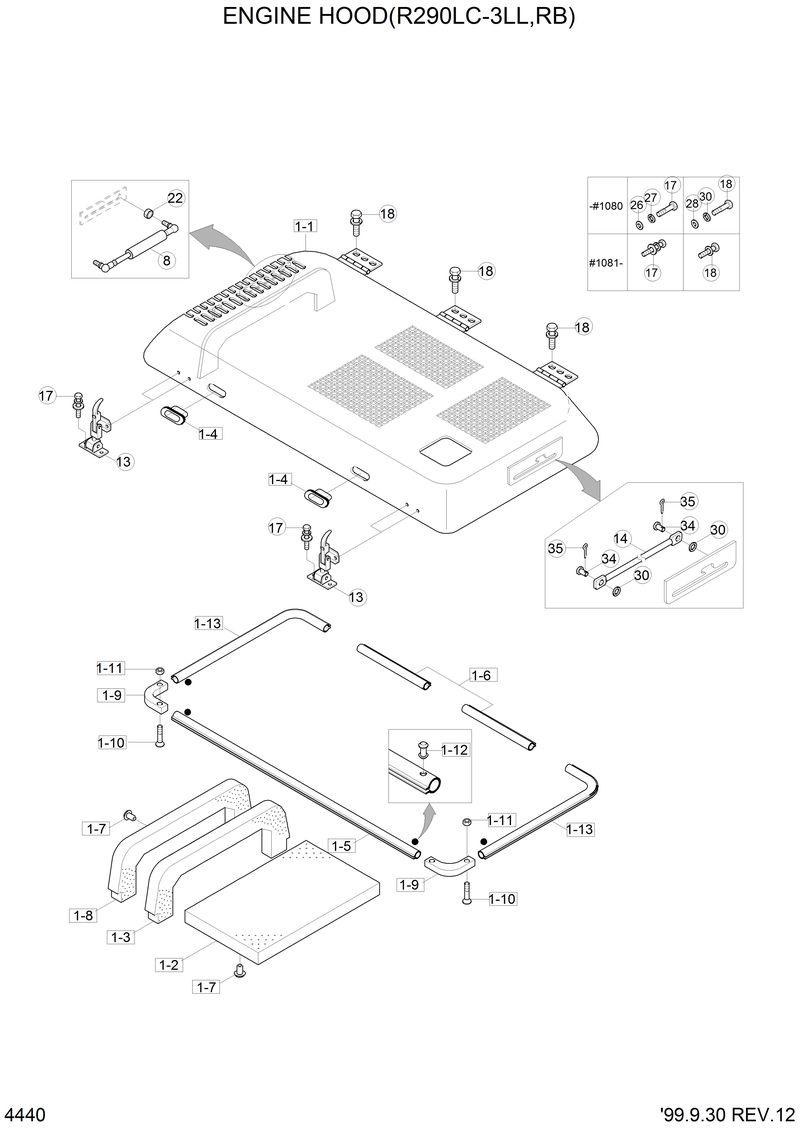

Схема запчастей Hyundai R290LC3LL - ENGINE HOOD(R290LC-3LL,RB)

Артикул

Название

Примечание

Количество

S411-120002

S411-120002-Washer-Spring

S037-122552

S037-122552-Bolt-W/Washer

S035-082522

S035-082522-Bolt-W/Washer

S411-120002

S411-120002-Washer-Spring

*

71E9-61002

71E9-61002-Engine Hood Assy

1-1

71E9-61010

71E9-61010-. E/G Hood Wa

1-10

S141-050202

S141-050202-. Screw

1-11

S201-050002

S201-050002-. Nut-Hex

1-12

91EK-12010

91EK-12010-. Rivet

1-13

S771-013700

S771-013700-. Weather Strip

1-2

71E9-61200

71E9-61200-. Sponge

1-3

71E9-61211

71E9-61211-. Sponge

1-4

E171-9999

E171-9999-. Handle-Rubber

1-5

S771-018100

S771-018100-. Weather Strip

1-6

S771-003800

S771-003800-. Weather Strip

1-7

71EM-51580

71EM-51580-. Cap-Stud Bolt

1-8

71E9-61220

71E9-61220-. Sponge

1-9

71E5-61480

71E5-61480-. Rubber-Cushion

13

E171-2015

E171-2015-Catch Assy

14

71EM-55150

71EM-55150-Stay

17

S017-080252

S017-080252-Bolt-Hex

18

S017-120252

S017-120252-Bolt-Hex

22

S205-081002

S205-081002-Nut-Hex

26

S403-082002

S403-082002-Washer-Plain

27

S411-080002

S411-080002-Washer-Spring

28

S403-122002

S403-122002-Washer-Plain

34

S491-120252

S491-120252-Pin-Clevis

35

S461-200202

S461-200202-Pin-Split

8

E271-2128

E271-2128-Gas Spring

Выбрано товаров: 29
