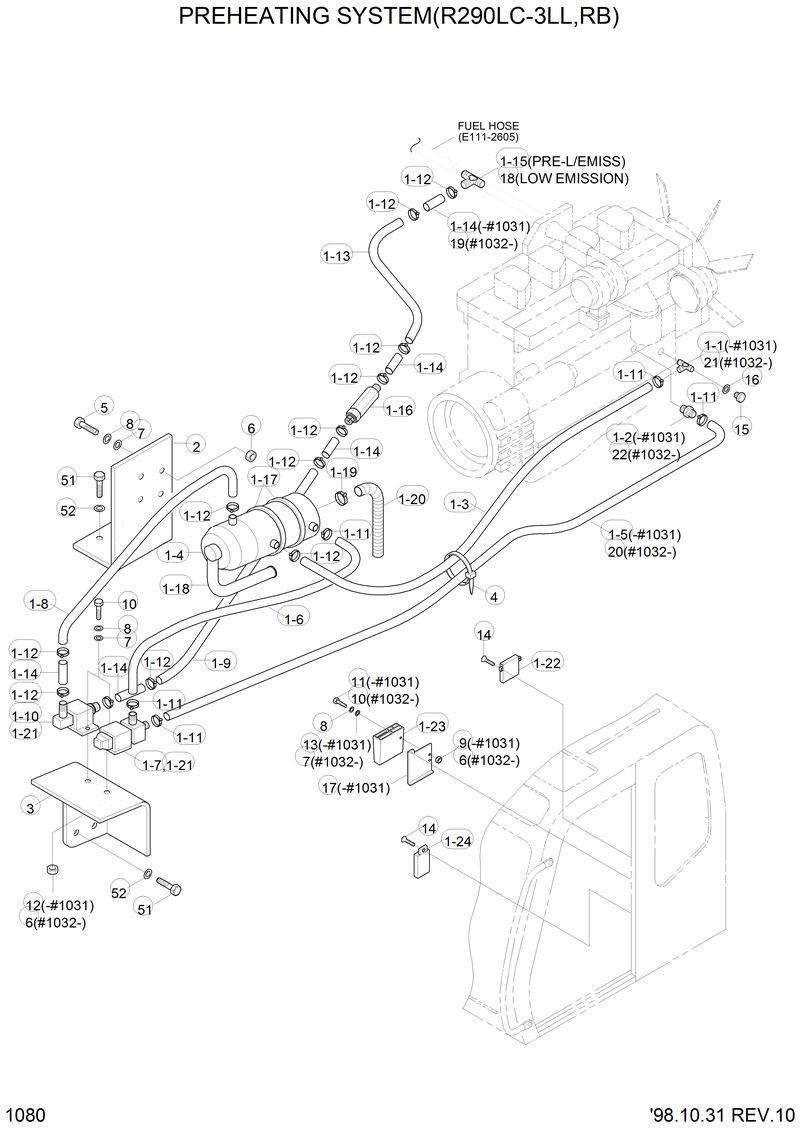

Запчасти Hyundai R290LC3LL PREHEATING SYSTEM(R290LC-3LL,RB)

11E9-90521

11E9-90521-Bracket

S205-063002

S205-063002-Nut-Hex

S403-062002

S403-062002-Washer-Plain

S403-062002

S403-062002-Washer-Plain

S015-060202

S015-060202-Bolt-Hex

11E9-90511

11E9-90511-Bracket

S015-060202

S015-060202-Bolt-Hex

S205-063002

S205-063002-Nut-Hex

11EH-90500

11EH-90500-Preheater Assy

1-1

SF111-0002

SF111-0002-. Connector

1-10

SF111-0011

SF111-0011-. Pump-Fuel

1-11

SF111-0013

SF111-0013-. Clamp-Wire

1-12

SF111-0014

SF111-0014-. Clamp-Wire

1-13

SF111-0012

SF111-0012-. Hose

1-14

SF111-0015

SF111-0015-. Hose

1-15

SF111-0016 IS Description. Tee-Connector Qty1 Seri

SF111-0016 IS Description. Tee-Connector Qty1 Serial_No Itc RmkPRE-L/EM-. Tee-Connector

1-16

SF111-0017

SF111-0017-. Filter-Fuel

1-17

SF111-0018

SF111-0018-. Clamp

1-18

SF111-0019

SF111-0019-. Hose-Intake

1-19

SF111-0020

SF111-0020-. Clamp

1-2

SF111-0003

SF111-0003-. Connector

1-20

SF111-0021

SF111-0021-. Pipe-Exhaust

1-21

SF111-0024

SF111-0024-. Bracket-Band

1-22

SF111-0026

SF111-0026-. Timer Unit

1-23

SF111-0027

SF111-0027-. Control Unit

1-24

SF111-0029

SF111-0029-. Fuse Holder

1-3

SF111-0004

SF111-0004-. Hose

1-5

SF111-0006

SF111-0006-. Hose

1-6

SF111-0007

SF111-0007-. Hose

1-7

SF111-0008

SF111-0008-. Pump-Water

1-8

SF111-0009

SF111-0009-. Hose

1-9

SF111-0010

SF111-0010-. Hose

11

S014-060202

S014-060202-Bolt-Hex

12

S207-063002

S207-063002-Nut-Hex

13

S402-062002

S402-062002-Washer-Plain

14

S152-040302

S152-040302-Screw

15

P220-220105

P220-220105-Plug

16

P392-160000

P392-160000-Washer-Copper

17

11E9-90530

11E9-90530-Bracket

18

11EH-90580 IS DescriptionTee-Fuel Qty1 Serial_No#1

11EH-90580 IS DescriptionTee-Fuel Qty1 Serial_No#1032 - Itc- RmkLOW EM-Tee-Fuel

19

11EH-90590

11EH-90590-Hose-Fuel

2

11E9-90510

11E9-90510-Bracket

20

11EH-90601

11EH-90601-Hose-Heater

21

11E9-90540

11E9-90540-Connector

22

11E9-90550

11E9-90550-Connector

3

11E9-90520

11E9-90520-Bracket

4

S551-035146

S551-035146-Tie-Wire

5

S015-060302

S015-060302-Bolt-Hex

51

S017-120302

S017-120302-Bolt-Hex

52

S411-120002

S411-120002-Washer-Spring

8

S411-060002

S411-060002-Washer-Spring

9

S201-063002

S201-063002-Nut-Hex

N1

11E9-90500

11E9-90500-Preheater Assy

N1-4

SF111-0005

SF111-0005-. Heater Assy
