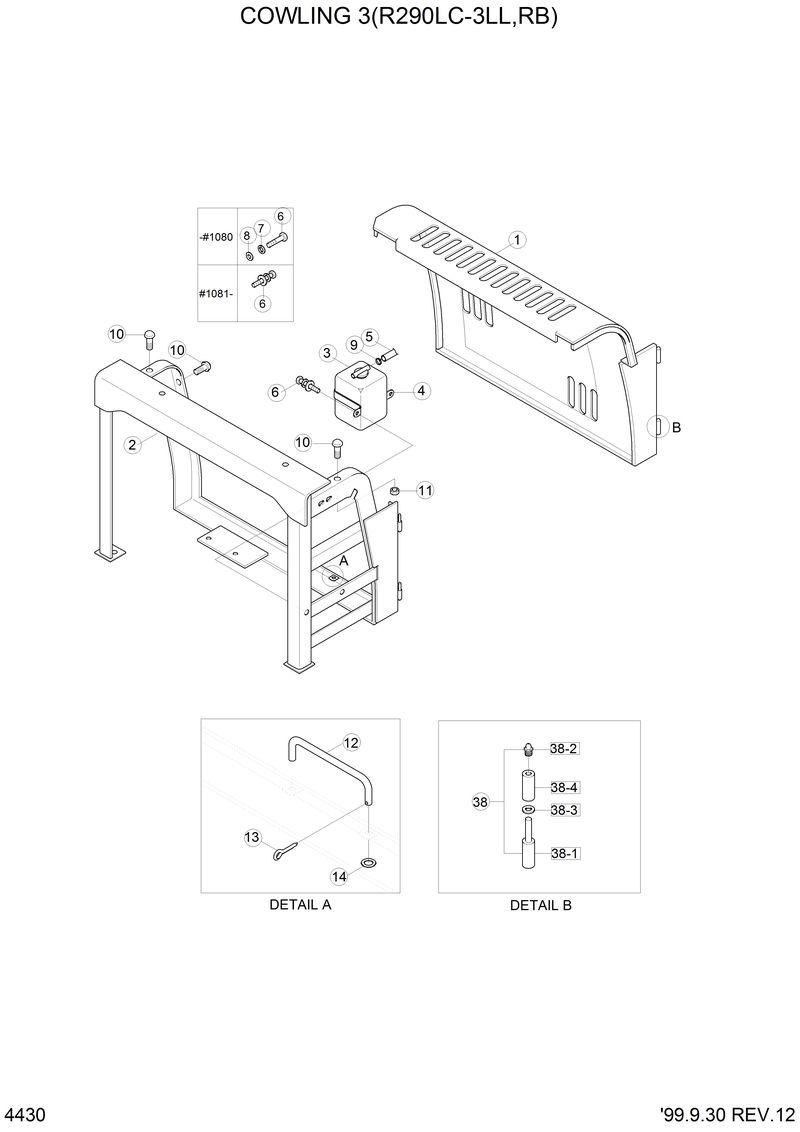

Запчасти Hyundai R290LC3LL COWLING 3(R290LC-3LL,RB)

S035-082022

S035-082022-. Bolt-W/Washer

S441-100002

S441-100002-. Washer-Hardened

*

71FD-51022

71FD-51022-Side Cowl Assy-Rh

1

71FD-51050

71FD-51050-. Side Cover Wa-Rh

10

71EH-13150

71EH-13150-. Bumper-Rubber

11

S205-101002

S205-101002-. Nut-Hex

12

E171-2014

E171-2014-. Stay

13

S461-320202

S461-320202-. Pin-Split

14

S403-100002

S403-100002-. Washer-Plain

2

71FD-51061

71FD-51061-. Support Wa-Rh

3

E128-0054

E128-0054-. Tank-Reservoir

3-1

E128-1054

E128-1054-.. Cap-Reservoir Tank

38

P90-0176

P90-0176-Hinge Assy

38-1

71FD-03300

71FD-03300-. Hinge Wa-A

38-2

71FD-03310

71FD-03310-. Hinge Wa-B

38-3

71FD-03360

71FD-03360-. Washer

38-4

71FD-03350

71FD-03350-. Nipple-Grease

4

E111-4012

E111-4012-. Plate-Clamp

5

E111-4013

E111-4013-. Hose

6

S015-080202

S015-080202-. Bolt-Hex

7

S411-080002

S411-080002-. Washer-Spring

8

S403-080002

S403-080002-. Washer-Plain

9

S520-015000

S520-015000-. Clamp
