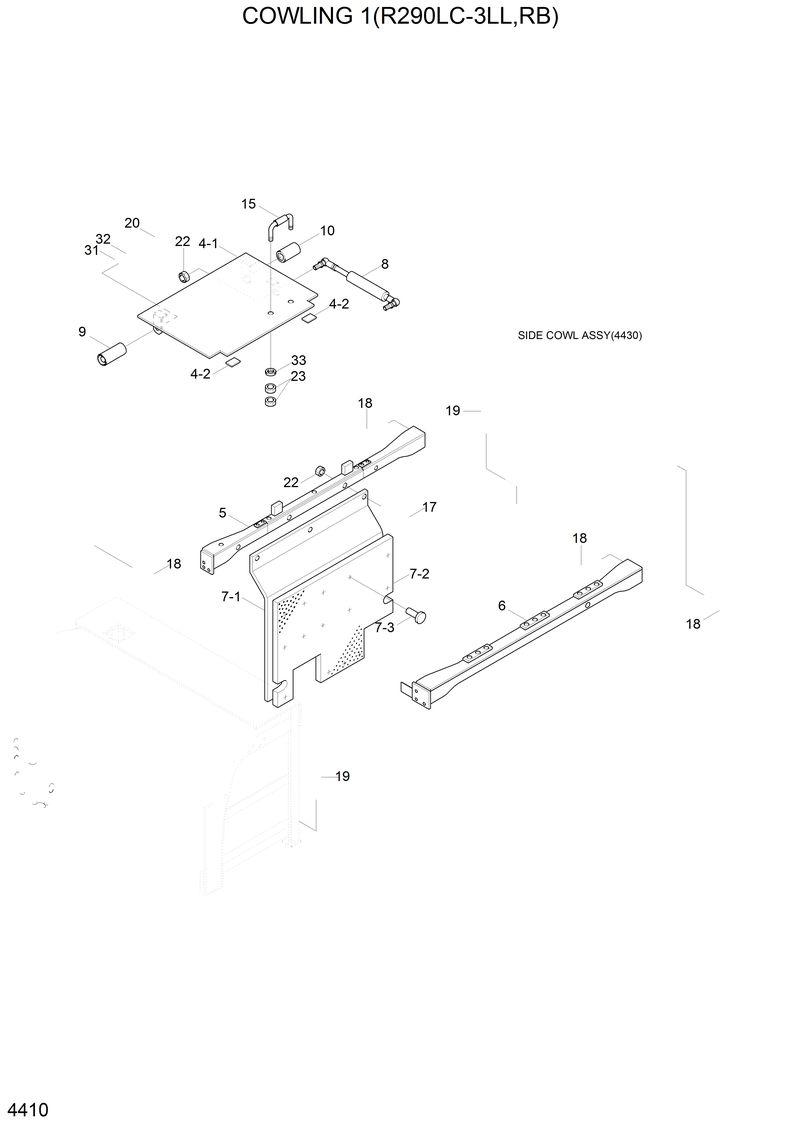

Запчасти Hyundai R290LC3LL COWLING 1(R290LC-3LL,RB)

S037-122552

S037-122552-Bolt-W/Washer

S037-123052

S037-123052-Bolt-W/Washer

S035-082522

S035-082522-Bolt-W/Washer

S441-200002

S441-200002-Washer-Hardened

10

71EM-54220

71EM-54220-Collar

11

71W1-54030

71W1-54030-Pin Wa

12

E111-5110

E111-5110-Extinguisher

15

71E9-54150

71E9-54150-Handle

16

S015-060252

S015-060252-Bolt-Hex

17

S015-080252

S015-080252-Bolt-Hex

18

S017-120252

S017-120252-Bolt-Hex

19

S017-120302

S017-120302-Bolt-Hex

20

S017-200302

S017-200302-Bolt-Hex

21

S205-061002

S205-061002-Nut-Hex

22

S205-081002

S205-081002-Nut-Hex

23

S205-161002

S205-161002-Nut-Hex

24

S403-062002

S403-062002-Washer-Plain

25

S411-060002

S411-060002-Washer-Spring

26

S403-082002

S403-082002-Washer-Plain

27

S411-080002

S411-080002-Washer-Spring

28

S403-122002

S403-122002-Washer-Plain

29

S403-125002

S403-125002-Washer-Plain

30

S411-120002

S411-120002-Washer-Spring

31

S403-202002

S403-202002-Washer-Plain

32

S411-200002

S411-200002-Washer-Spring

33

S681-190400

S681-190400-Grommet

36

71W1-54020

71W1-54020-Chain Assy

37

S017-100252

S017-100252-Bolt-Hex

4

71E9-62000

71E9-62000-Hood Assy-Mcv

4-1

71E9-62010

71E9-62010-. Hood Wa-Mcv

4-2

71E9-55600

71E9-55600-. Pad-Rubber

5

71E9-62200

71E9-62200-Support-E/Hood,Fr

6

71E9-62210

71E9-62210-Support-H/Hood,Rr

7

71E9-63000

71E9-63000-Screen Assy

7-1

71E9-63040

71E9-63040-. Plate-Screen

7-2

71E9-63020

71E9-63020-. Sponge

7-3

71EM-51580

71EM-51580-. Cap-Stud Bolt

8

E271-2128

E271-2128-Gas Spring

9

71E9-55160

71E9-55160-Collor
