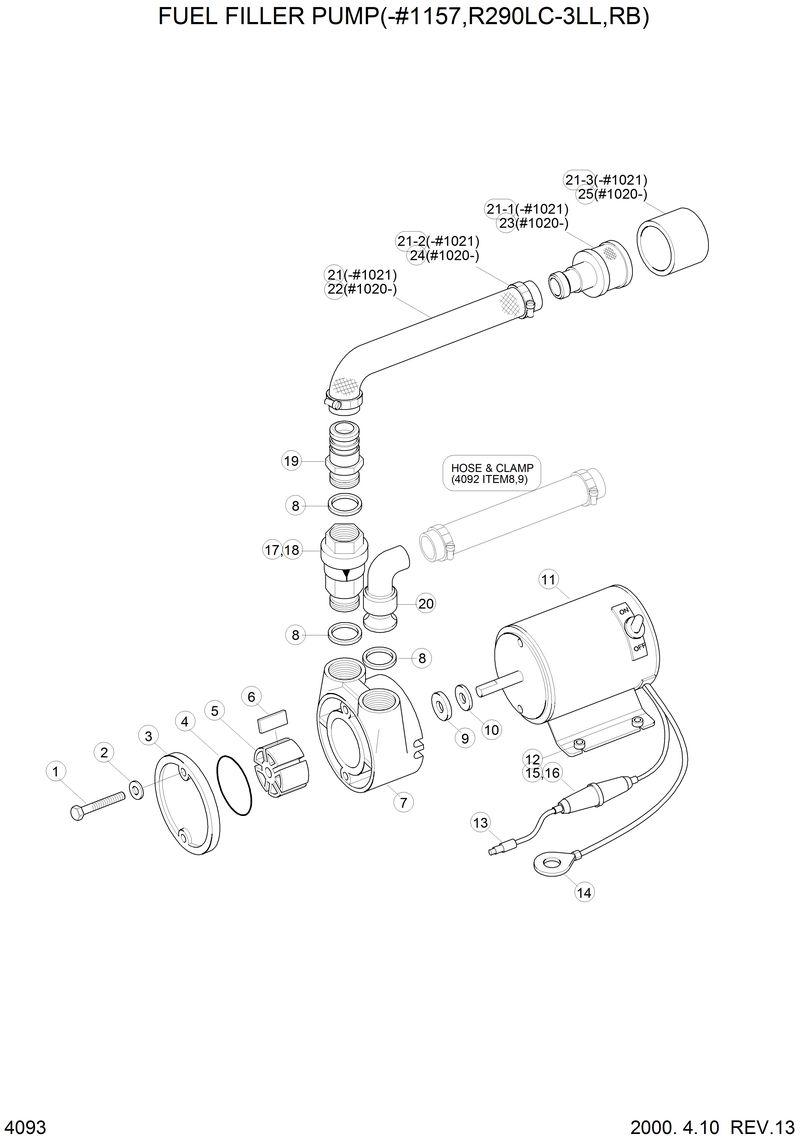

Запчасти Hyundai R290LC3LL FUEL FILLER PUMP(-#1157,R290LC-3LL,RB)

24E7-30071

24E7-30071-Fuel Filler Pump Assy

X3002-166C

X3002-166C-. Screw

X5020-003

X5020-003-. Adapter-Hose

45716-0100

45716-0100-. Vane

*

24E7-30070

24E7-30070-Fuel Filler Pump Assy

1

X3002-165C

X3002-165C-. Screw

10

6342

6342-. Slinger

11

SP8012-0236

SP8012-0236-. Motor

12

SP2900-12

SP2900-12-. Grommet

13

SP8043-0517

SP8043-0517-. Connector

14

SP8043-0516

SP8043-0516-. Terminal

15

X5501-018

X5501-018-. Holder-Fuse

16

Y5292-02

Y5292-02-. Fuse

17

SP8024-0086

SP8024-0086-. Valve-Check

18

23728-0000

23728-0000-. Nipple

19

23533-1100

23533-1100-. Adapter-Port

2

X3081-081F

X3081-081F-. Washer-Spring

20

23533-1000

23533-1000-. Adapter-Hose

21-1

23732-0000

23732-0000-.. Strainer

21-2

23531-0400B

23531-0400B-.. Hose & Clamp

21-3

21E6-20160

21E6-20160-.. Cover-S/Strainer

22

23541-0401G

23541-0401G-. Hose-Suction

23

23732-0000

23732-0000-. Strainer

24

@

@-. Clamp

25

@

@-. Cover-S/Strainer

3

23875-0050

23875-0050-. Cover-End

7

23874-2050

23874-2050-. Body

8

SP1613-1416

SP1613-1416-. Washer-Sealing

K

SK399-0001

SK399-0001-Service Kit

K4

X1990-131

X1990-131-. O-Ring

K9

SP2701-52

SP2701-52-. Seal

N21

21E6-20180

21E6-20180-. Hose-Suction

NK5

45714-0000

45714-0000-. Rotor

NK6

45716-0000

45716-0000-. Vane
