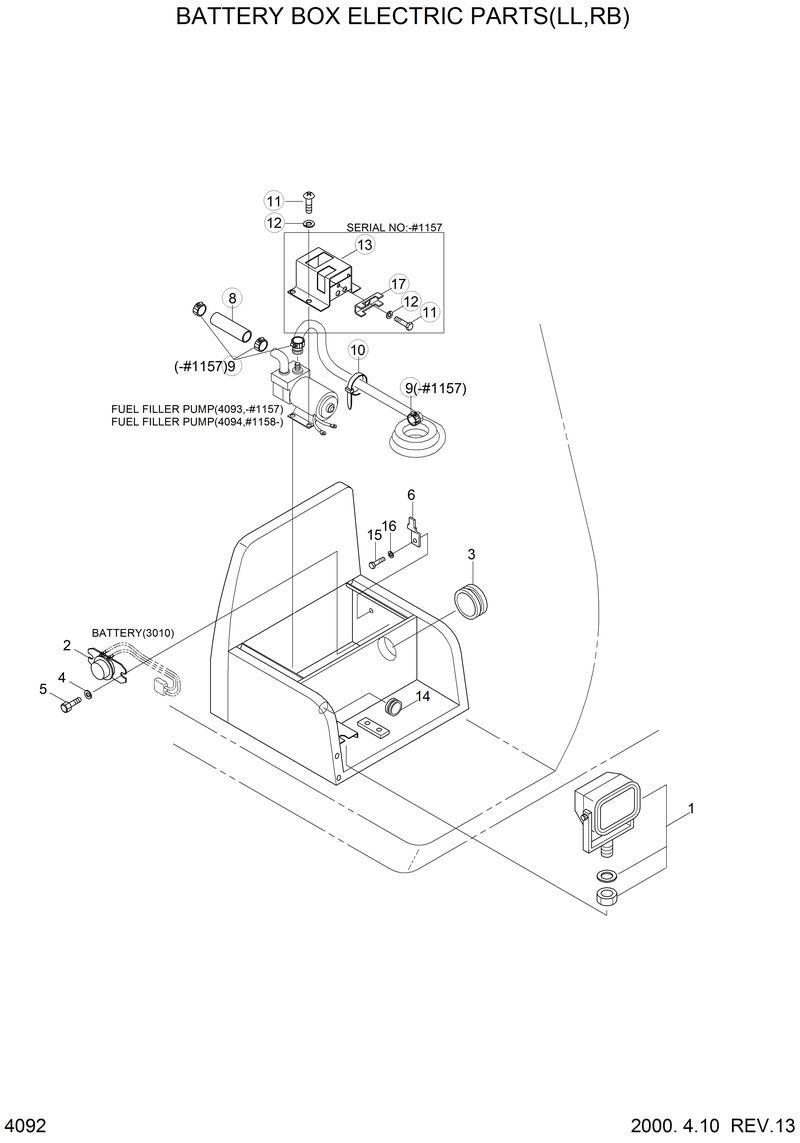

Запчасти Hyundai R290LC3LL BATTERY BOX ELECTRIC PARTS(LL,RB)

@

@-Elec Parts-Battery Box

S161-050156

S161-050156-Screw-Rd Hd

S411-060002

S411-060002-Washer-Spring

S411-060006

S411-060006-Washer-Spring

S411-060006

S411-060006-Washer-Spring

21EN-10600

21EN-10600-Cover-F/F Pump

21E5-0003-AS

21E5-0003-AS-Relay-Battery

21EK-10360

21EK-10360-Head Lamp Assy

@

@-Elec Parts-Battery Box

S161-050156

S161-050156-Screw-Rd Hd

S015-060202

S015-060202-Bolt-Hex

S520-027000

S520-027000-Clamp-Hose

S520-027000

S520-027000-Clamp-Hose

1

21E7-2015

21E7-2015-Head Light Assy

10

E127-3158

E127-3158-Band-Fuel Pump

11

S161-040162

S161-040162-Screw-Rd Hd

12

S411-040002

S411-040002-Washer-Spring

13

21E8-10600

21E8-10600-Cover-F/F Pump

14

S681-230400

S681-230400-Grommet

15

S017-100202

S017-100202-Bolt-Hex

16

S411-100002

S411-100002-Washer-Spring

17

21EN-10240

21EN-10240-Plate

2

21E5-0003

21E5-0003-Relay-Battery

3

S681-410400

S681-410400-Grommet

4

S411-080002

S411-080002-Washer-Spring

5

S015-080152

S015-080152-Bolt-Hex

6

21E7-0612

21E7-0612-Plate-Connector

7

24E7-30070

24E7-30070-Fuel Filler Pump Assy

8

E127-5007

E127-5007-Hose-Outlet
