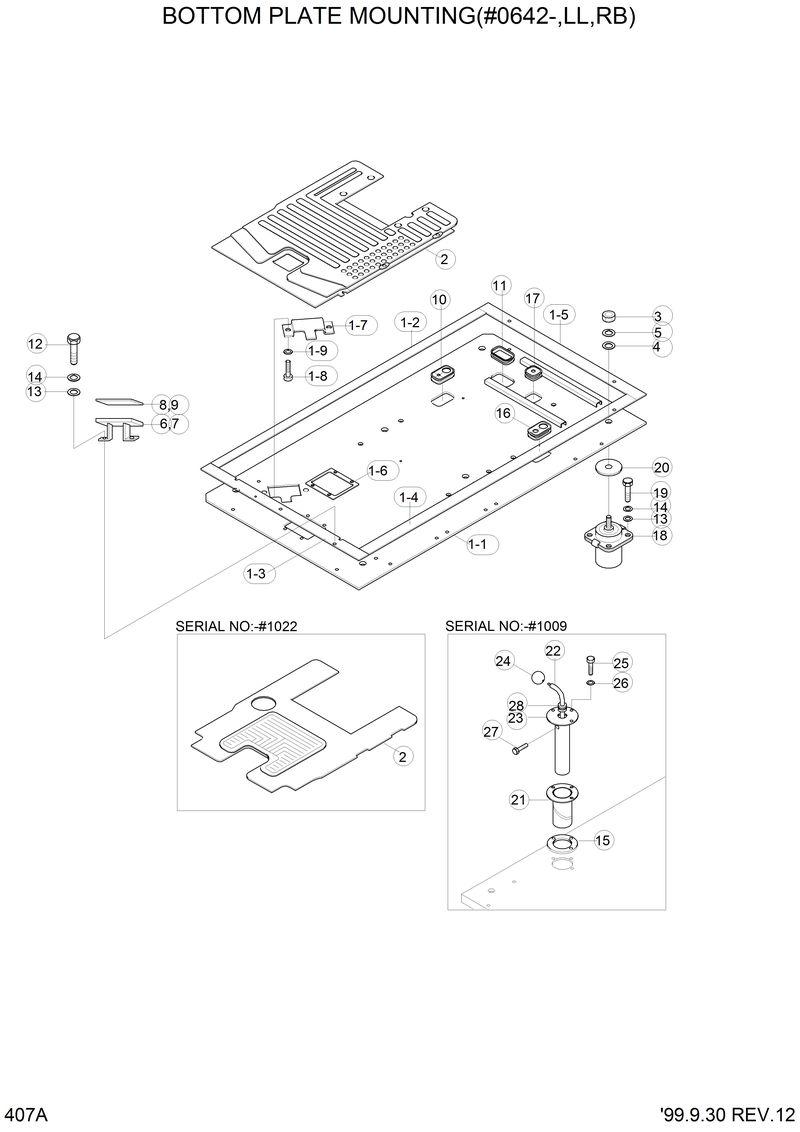

Запчасти Hyundai R290LC3LL BOTTOM PLATE MTG(#0642-,LL,RB)

71E9-10811

71E9-10811-. Bottom Plate Wa

71EM-10950

71EM-10950-Cover-Mat Floor

S681-290400

S681-290400-Grommet

71E9-10810

71E9-10810-. Bottom Plate Wa

71E9-10801

71E9-10801-Bottom Plate Assy

71E9-10800

71E9-10800-Bottom Plate Assy

1

71E9-10500

71E9-10500-Bottom Plate Assy

1-1

71E9-10510

71E9-10510-. Bottom Plate Wa

1-2

71EN-10170

71EN-10170-. Pad-Rubber

1-3

72E6-10700

72E6-10700-. Pad-Rubber

1-4

71EN-10180

71EN-10180-. Pad-Rubber

1-5

72E6-10720

72E6-10720-. Pad-Rubber

1-6

72E6-10730

72E6-10730-. Pad-Rubber

1-7

71E9-10660

71E9-10660-. Cover

1-8

S017-100166

S017-100166-. Bolt-Hex

1-9

S411-100006

S411-100006-. Washer-Spring

10

71E9-10610

71E9-10610-Grommet

11

71E9-10640

71E9-10640-Grommet

12

S017-100206

S017-100206-Bolt-Hex

13

S403-102006

S403-102006-Washer-Plain

14

S411-100006

S411-100006-Washer-Spring

15

71EM-10200

71EM-10200-Cover-Rubber

16

71E9-10620

71E9-10620-Grommet

17

71E9-10630

71E9-10630-Grommet

18

71EM-10161

71EM-10161-Mount-Viscous

19

S017-100306

S017-100306-Bolt-Hex

2

71EM-10190

71EM-10190-Cover-Mat Floor

20

71E9-10650

71E9-10650-Washer-Rebound

21

71EM-60020

71EM-60020-Guide-Swing Lock

22

71EM-60030

71EM-60030-Pin-Swing Lock

23

71EM-60040

71EM-60040-Cover

24

E111-4509

E111-4509-Knob

25

S015-080256

S015-080256-Bolt-Hex

26

S411-080006

S411-080006-Washer-Spring

27

S018-120356

S018-120356-Bolt-Hex

28

S681-230400

S681-230400-Grommet

3

S207-161006

S207-161006-Nut-Hex

4

S403-162006

S403-162006-Washer-Plain

5

S411-160006

S411-160006-Washer-Spring

6

E111-5001

E111-5001-Foot Rest-Rh

7

E111-5002

E111-5002-Foot Rest-Lh

8

E111-5007

E111-5007-Rubber-Foot Rest,Rh

9

E111-5008

E111-5008-Rubber-Foot Rest,Lh
