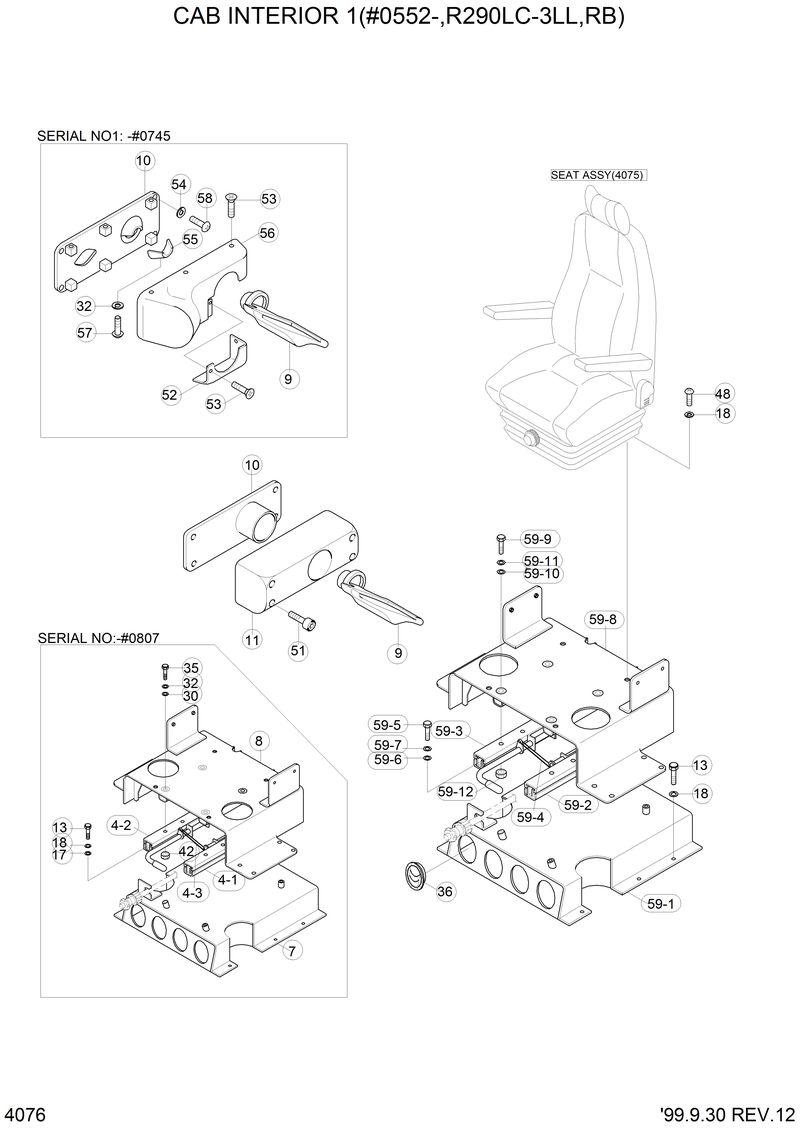

Запчасти Hyundai R290LC3LL CAB INTERIOR 1(#0552-,R290LC-3LL,RB)

S015-060202

S015-060202-. Bolt-Hex

S411-080006

S411-080006-Washer-Spring

71EM-20241

71EM-20241-Support-Cluster

S411-080006

S411-080006-Washer-Spring

S411-080006

S411-080006-Washer-Spring

S015-080256

S015-080256-Bolt-Hex

S015-080256

S015-080256-Bolt-Hex

71EM-20510

71EM-20510-Seat Base Assy

S015-060202

S015-060202-. Bolt-Hex

71EM-20250

71EM-20250-Bracket-Cluster

S403-062002

S403-062002-. Washer-Plain

S403-062002

S403-062002-. Washer-Plain

S411-060002

S411-060002-. Washer-Spring

S411-060002

S411-060002-. Washer-Spring

10

71E6-26100

71E6-26100-Mount(1)-Cluster

11

71EM-20260

71EM-20260-Cover-Cluster

17

S403-082006

S403-082006-Washer-Plain

30

S403-062006

S403-062006-Washer-Plain

32

S411-060006

S411-060006-Washer-Spring

35

S015-060206

S015-060206-Bolt-Hex

36

71EM-28010

71EM-28010-Air Vent

4-1

71E6-25350

71E6-25350-. Seat Rail-Lh

4-2

71E6-25360

71E6-25360-. Seat Rail-Rh

4-3

71E6-25370

71E6-25370-. Bar-Release

42

S205-061006

S205-061006-Nut-Hex

48

S161-080256

S161-080256-Screw

51

S105-080756

S105-080756-Bolt-Socket

52

71E6-26060

71E6-26060-Cover-Cluster

53

S151-040106

S151-040106-Screw

55

71E6-25140

71E6-25140-Mount(2)-Cluster

57

S161-060166

S161-060166-Screw

58

S161-080206

S161-080206-Screw

59

71EM-20460

71EM-20460-Seat Base Assy

59-1

@

@-. Seat Base-Lower

59-12

S205-061002

S205-061002-. Nut-Hex

59-5

S161-080166

S161-080166-. Screw

59-6

S403-082006

S403-082006-. Washer-Plain

59-7

S411-080006

S411-080006-. Washer-Spring

59-8

@

@-. Seat Base-Upper

7

71EM-20100

71EM-20100-Seat Base-Lower

8

71EM-20110

71EM-20110-Seat Base-Upper

9

71EM-20240

71EM-20240-Support-Cluster

N

@

@-Not Individually Supplied

N4

@

@-Seat Rail Assy

N56

71E6-26860

71E6-26860-Cover-Cluster

N59-2

@

@-. Seat Rail-Lh

N59-3

@

@-. Seat Rail-Rh

N59-4

@

@-. Bar-Release
