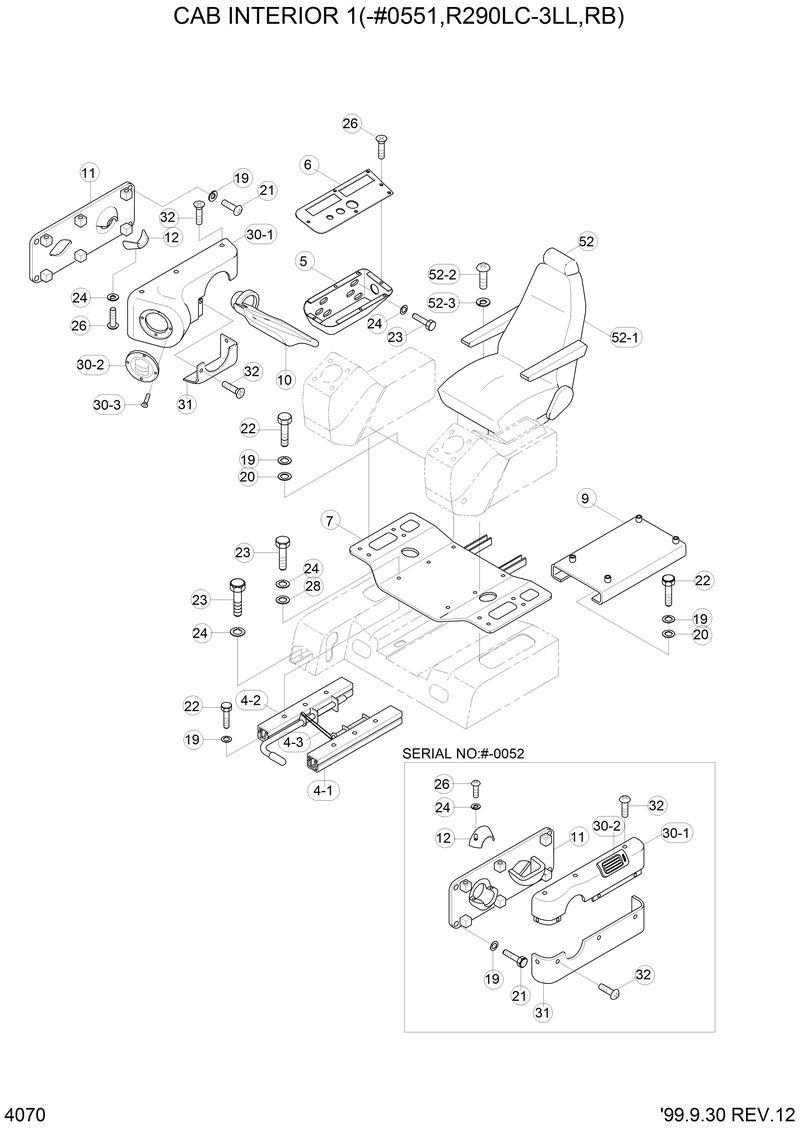

Запчасти Hyundai R290LC3LL CAB INTERIOR 1(-#0551,R290LC-3LL,RB)

10

71E6-25121

71E6-25121-Support-Cluster

11

71E6-26100

71E6-26100-Mount(1)-Cluster

12

71E6-25140

71E6-25140-Mount(2)-Cluster

19

S411-080006

S411-080006-Washer-Spring

20

S403-082002

S403-082002-Washer-Plain

21

S162-080206

S162-080206-Screw-C/Recess Round

22

S015-080206

S015-080206-Bolt-Hex

23

S015-060126

S015-060126-Bolt-Hex

24

S411-060006

S411-060006-Washer-Spring

26

S161-060166

S161-060166-Screw

28

S403-062006

S403-062006-Washer-Plain

30

71E6-26730

71E6-26730-Duct Assy

30-1

71E6-26050

71E6-26050-. Cover Body-Cluster

30-2

74L3-02950

74L3-02950-. Nozzle

30-3

S151-040106

S151-040106-Screw

31

71E6-26060

71E6-26060-Cover-Cluster

32

S151-030106

S151-030106-Screw-C/Recess Tap

33

S411-040006

S411-040006-Washer-Spring

4

@

@-Seat Rail Assy

4-1

71E6-25350

71E6-25350-. Seat Rail-Lh

4-2

71E6-25360

71E6-25360-. Seat Rail-Rh

4-3

71E6-25370

71E6-25370-. Bar-Release

42

S403-042006

S403-042006-Washer-Plain

5

71E6-26140

71E6-26140-Box-Panel

53

71EH-30300

71EH-30300-Seat Assy

54

S161-080252

S161-080252-Screw

55

S411-080002

S411-080002-Washer-Spring

6

71EK-26250

71EK-26250-Cover-Panel Box

7

71E6-25083

71E6-25083-Base Wa(1)-Seat

9

71E6-25101

71E6-25101-Base(2)-Seat
