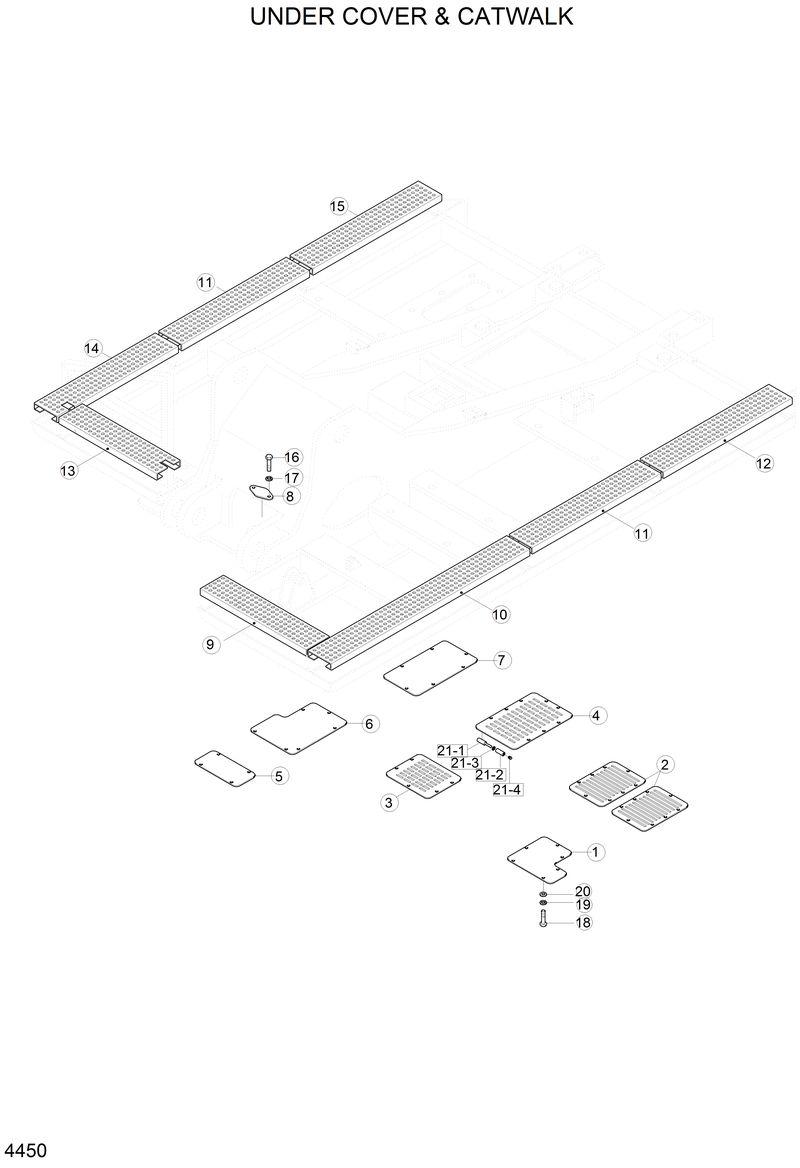

Запчасти Hyundai R210LC3LL UNDER COVER & CATWALK

1

41W1-10100

41W1-10100-Under Cover Wa-A

10

41W1-10180

41W1-10180-Catwalk-B

11

41W1-10190

41W1-10190-Catwalk-C

12

41W1-10200

41W1-10200-Catwalk-D

13

41W1-10210

41W1-10210-Catwalk-E

14

41W1-10220

41W1-10220-Catwalk-F

15

41W1-10230

41W1-10230-Catwalk-G

16

S017-100252

S017-100252-Bolt-Hex

17

S411-100002

S411-100002-Washer-Spring

18

S017-120302

S017-120302-Bolt-Hex

19

S411-120002

S411-120002-Washer-Spring

2

41W1-10110

41W1-10110-Under Cover Wa-B

20

S403-125002

S403-125002-Washer-Plain

21

P90-0064

P90-0064-Hinge Assy

21-1

71FD-51200

71FD-51200-. Hinge-A

21-2

71FD-51130

71FD-51130-. Hinge-B

21-3

71FD-03340

71FD-03340-. Washer

21-4

71FD-03350

71FD-03350-. Nipple-Grease

3

41W1-10120

41W1-10120-Under Cover Wa-C

4

41W1-10130

41W1-10130-Under Cover Wa-D

5

41W1-10140

41W1-10140-Under Cover Wa-E

6

41W1-10150

41W1-10150-Under Cover Wa-F

7

41W1-10161

41W1-10161-Under Cover Wa-G

8

41EC-13080

41EC-13080-Cover

9

41W1-10170

41W1-10170-Catwalk-A
