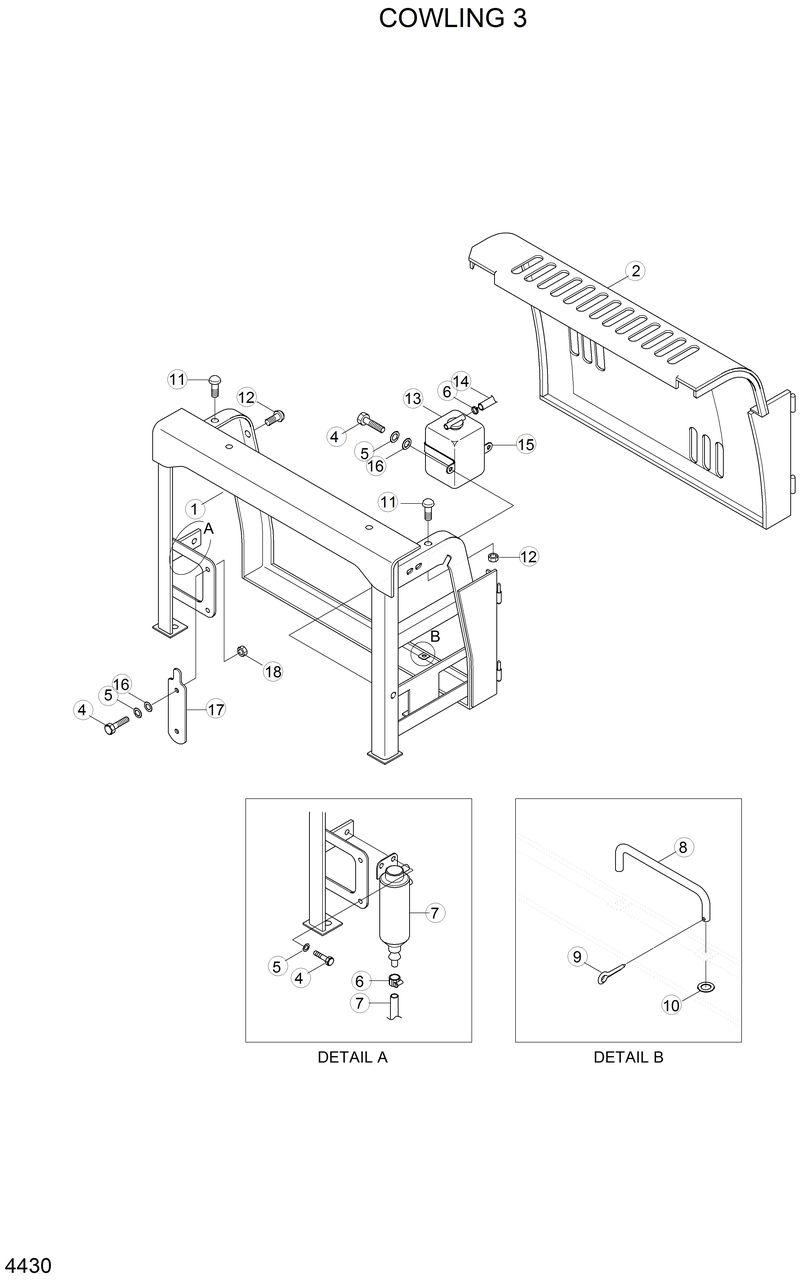

Запчасти Hyundai R210LC3LL COWLING 3

S035-082022

S035-082022-. Bolt-W/Washer

*

71W1-50021

71W1-50021-Side Cowl Assy-Rh

1

71W1-50050

71W1-50050-. Support Wa-Rh

10

S403-102002

S403-102002-. Washer-Plain

11

71EH-13150

71EH-13150-. Bumper-Rubber

12

S205-101002

S205-101002-. Nut-Hex

13

11EM-40070

11EM-40070-. Tank-Reservoir

13-1

11EM-40070-K

11EM-40070-K-.. Cap-Reservoir Tank

13-2

11EM-40140

11EM-40140-.. Sensor Assy-Reservoir

14

11E4-4013

11E4-4013-. Hose-Inlet

15

E111-4012

E111-4012-. Plate-Clamp

16

S403-082002

S403-082002-. Washer-Plain

17

E111-5110

E111-5110-. Extinguisher

18

S205-081002

S205-081002-. Nut-Hex

2

71W1-50070

71W1-50070-. Side Cover Wa-Rh

3

E111-2501

E111-2501-. Water Separator

37

P90-0176

P90-0176-Hinge Assy

37-1

71FD-03300

71FD-03300-. Hinge Wa-A

37-2

71FD-03310

71FD-03310-. Hinge Wa-B

37-3

71FD-03360

71FD-03360-. Washer

37-4

71FD-03350

71FD-03350-. Nipple-Grease

4

S015-080202

S015-080202-. Bolt-Hex

5

S411-080002

S411-080002-. Washer-Spring

6

S520-015000

S520-015000-. Clamp-Hose

7

11EM-50120

11EM-50120-. Hose-Drain

8

E171-2014

E171-2014-. Stay

9

S461-320202

S461-320202-. Pin-Split
