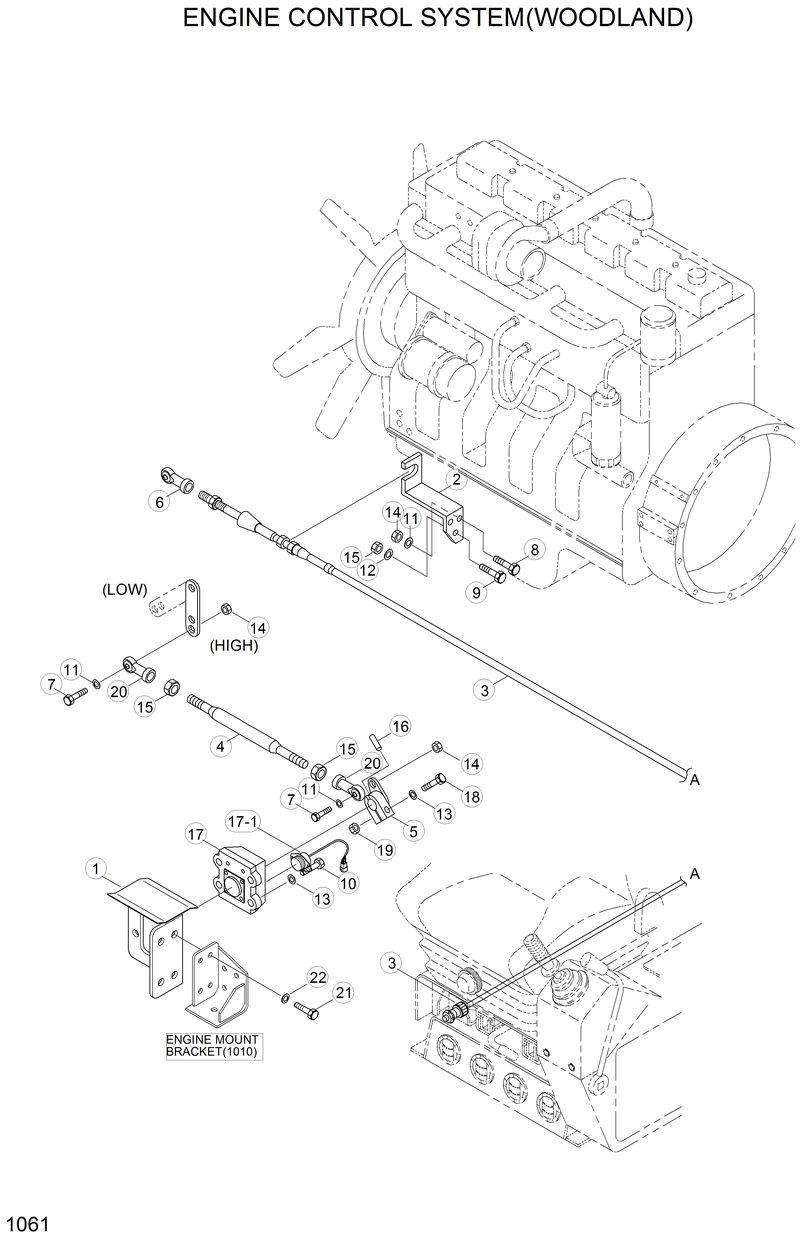

Запчасти Hyundai R210LC3LL ENGINE CONTROL SYSTEM(WOODLAND)

1

11EK-62010

11EK-62010-Bracket

10

S017-100502

S017-100502-Bolt-Hex

11

S411-060002

S411-060002-Washer-Spring

12

S411-080002

S411-080002-Washer-Spring

14

S201-061002

S201-061002-Nut-Hex

15

S205-081002

S205-081002-Nut-Hex

16

S471-500204

S471-500204-Pin-Spring

17

11E9-60010

11E9-60010-Motor-Governor

17-1

21E9-30010

21E9-30010-. Potentiometer

18

S017-100402

S017-100402-Bolt-Hex

19

S205-101002

S205-101002-Nut-Hex

2

11EK-62020

11EK-62020-Bracket-Cable

20

11EM-60030

11EM-60030-End-Rod

21

S017-100352

S017-100352-Bolt-Hex

22

S411-100002

S411-100002-Washer-Spring

22

S411-100002

S411-100002-Washer-Spring

3

11E6-4506

11E6-4506-Cable-Push Pull

4

11EM-62031

11EM-62031-Rod

5

11E6-4505

11E6-4505-Lever

6

E111-4504

E111-4504-End-Rod

7

S015-060252

S015-060252-Bolt-Hex

8

S015-060202

S015-060202-Bolt-Hex

9

S015-080202

S015-080202-Bolt-Hex
