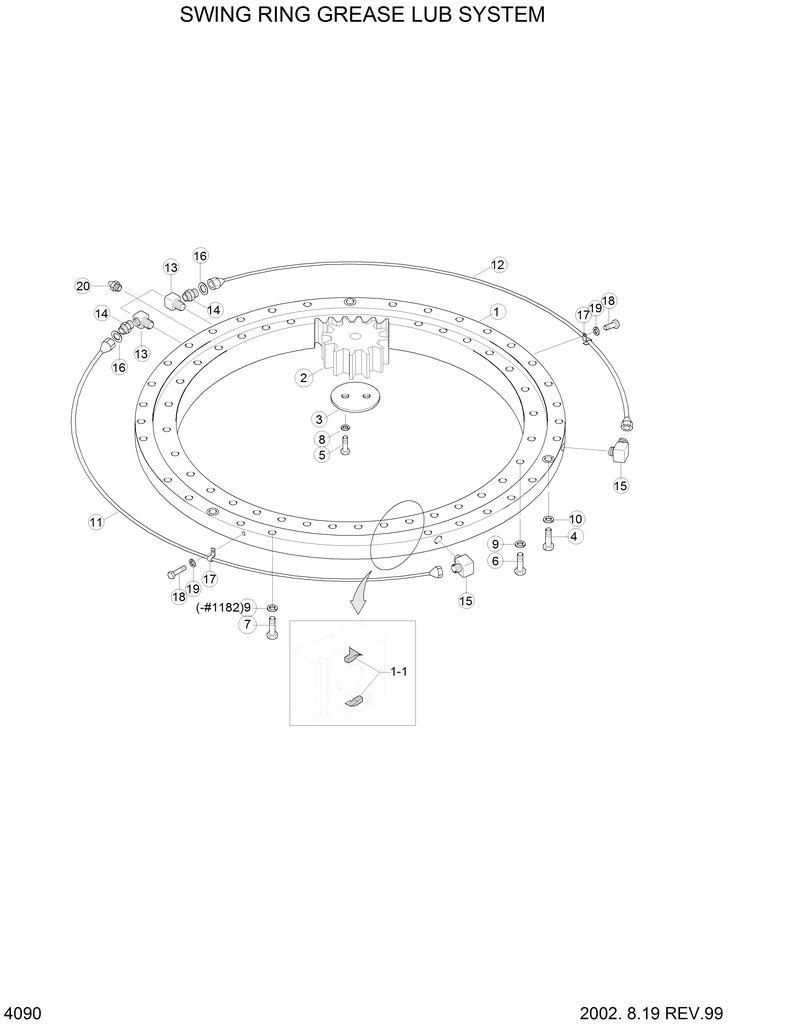

Запчасти Hyundai R210LC3LL SWING RING GREASE LUB SYSTEM

S441-200002

S441-200002-Washer-Hardened

S441-160002

S441-160002-Washer-Hardened

S441-200002

S441-200002-Washer-Hardened

1

81EM-00020

81EM-00020-Bearing-Swing

1-1

82E4-10040

82E4-10040-. Seal-Swing Bearing

10

S441-220004

S441-220004-Washer-Hardened

11

81EM-00630

81EM-00630-Pipe-Grease,Lh

12

81EM-00640

81EM-00640-Pipe-Grease,Rh

13

31EH-00610

31EH-00610-Fitting

14

E131-0626

E131-0626-Connector

15

E231-0349

E231-0349-Elbow-90

16

P391-040000

P391-040000-Washer-Copper

17

81EM-00650

81EM-00650-Clamp

18

S017-100162

S017-100162-Bolt-Hex

19

S411-100002

S411-100002-Washer-Spring

2

81EM-00010

81EM-00010-Pinion

20

S651-810002

S651-810002-Nipple-Grease

3

E181-1003

E181-1003-Washer-Pinion Lock

4

E180-5001

E180-5001-Bolt-Reamer

5

S017-160352

S017-160352-Bolt-Hex

6

S017-200704

S017-200704-Bolt-Hex

7

S017-201104

S017-201104-Bolt-Hex

8

S411-160002

S411-160002-Washer-Spring
