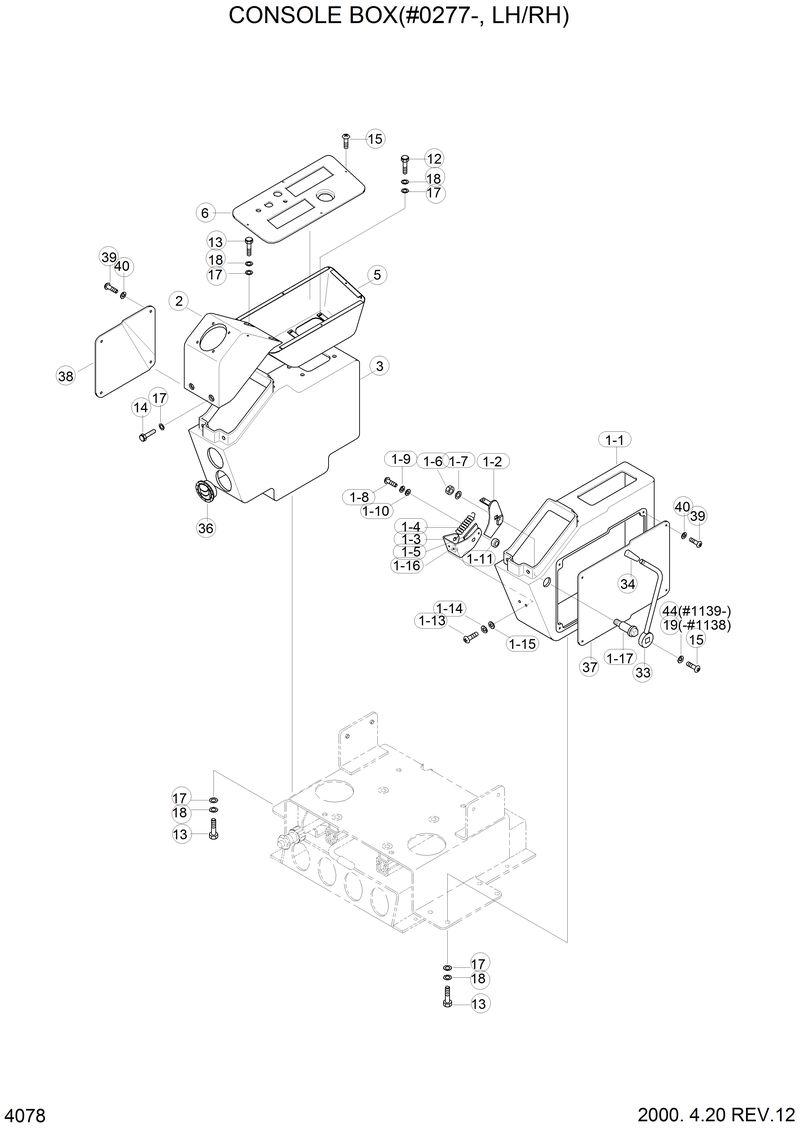

Запчасти Hyundai R210LC3LL CONSOLE BOX(LH/RH)

71EM-20540

71EM-20540-Console Box Assy-Lh

71EM-20530

71EM-20530-Console Box-Rh

71E6-26252

71E6-26252-Cover-Panel Box

71EM-20470

71EM-20470-Console Box-Up

S403-062006

S403-062006-Washer-Plain

S403-062006

S403-062006-Washer-Plain

71EM-20091

71EM-20091-Box-Panel

71EM-20550

71EM-20550-. Console Box-Lh

1

71EM-20010

71EM-20010-Console Box Assy-Lh

1-1

71EM-20020

71EM-20020-. Console Box-Lh

1-10

S401-042006

S401-042006-. Washer-Plain

1-11

S203-041006

S203-041006-. Nut-Hex

1-13

S161-060256

S161-060256-. Screw

1-14

S411-060006

S411-060006-. Washer-Spring

1-15

S403-062006

S403-062006-. Washer-Plain

1-16

S205-061006

S205-061006-. Nut-Hex

1-17

71E6-25910

71E6-25910-. Shaft

1-2

71E6-25271

71E6-25271-. Bracket Wa

1-3

71E6-25230

71E6-25230-. Bracket

1-4

71EM-20310

71EM-20310-. Spring

1-5

21E3-2002

21E3-2002-. Switch-Micro

1-6

S205-161006

S205-161006-. Nut-Hex

1-7

S403-162006

S403-162006-. Washer-Plain

1-8

S161-040206

S161-040206-. Screw

1-9

S411-040006

S411-040006-. Washer-Spring

12

S015-080202

S015-080202-Bolt-Hex

13

S015-080252

S015-080252-Bolt-Hex

14

S015-080402

S015-080402-Bolt-Hex

15

S161-060166

S161-060166-Screw

17

S403-082002

S403-082002-Washer-Plain

18

S411-080002

S411-080002-Washer-Spring

2

71EM-20080

71EM-20080-Console Box-Up

3

71EM-20050

71EM-20050-Console Box-Rh

33

71EM-20320

71EM-20320-Lever

34

2406Z248D2

2406Z248D2-Knob-Lever

36

71EM-28010

71EM-28010-Air Vent

37

71EM-20060

71EM-20060-Cover-Console Box,Lh

38

71EM-20070

71EM-20070-Cover-Console Box,Rh

39

S161-050166

S161-050166-Screw

40

S403-052006

S403-052006-Washer-Plain

44

S403-065006

S403-065006-Washer-Plain

5

71EM-20090

71EM-20090-Box-Panel

6

71E6-26251

71E6-26251-Cover-Panel Box
