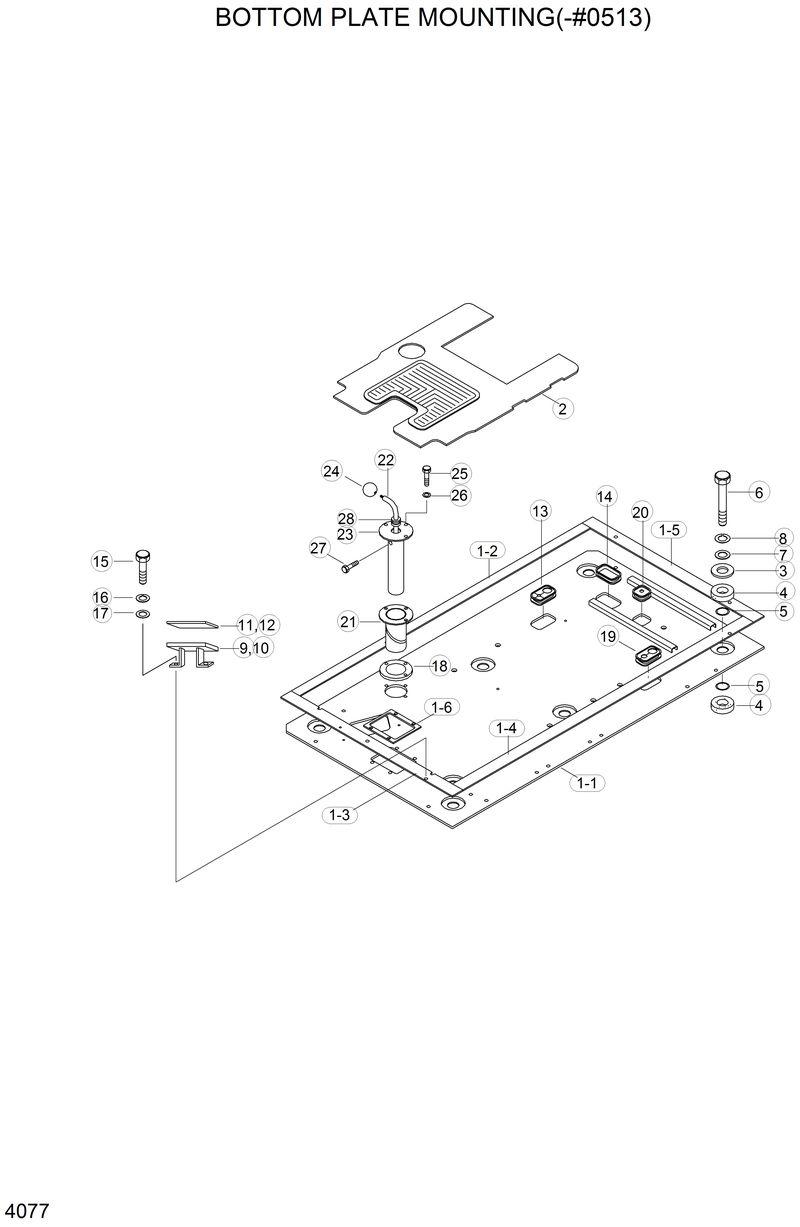

Запчасти Hyundai R210LC3LL BOTTOM PLATE MOUNTING(-#0513)

1

71EM-10100

71EM-10100-Bottom Plate Assy

1-1

71EM-10110

71EM-10110-. Bottom Plate Wa

1-2

71EN-10170

71EN-10170-. Pad-Rubber

1-3

72E6-10700

72E6-10700-. Pad-Rubber

1-4

71EN-10180

71EN-10180-. Pad-Rubber

1-5

72E6-10720

72E6-10720-. Pad-Rubber

1-6

72E6-10730

72E6-10730-. Pad-Rubber

10

E111-5002

E111-5002-Foot Rest-Lh

11

E111-5007

E111-5007-Rubber-Foot Rest,Rh

12

E111-5008

E111-5008-Rubber-Foot Rest,Lh

13

71EM-10210

71EM-10210-Grommet

14

71E9-0001

71E9-0001-Grommet

15

S017-100202

S017-100202-Bolt-Hex

16

S403-103002

S403-103002-Washer-Plain

17

S411-100002

S411-100002-Washer-Spring

18

71EM-10200

71EM-10200-Cover-Rubber

19

71EM-10220

71EM-10220-Grommet

2

71EM-10190

71EM-10190-Cover-Mat Floor

20

71EM-10230

71EM-10230-Grommet

21

71EM-60020

71EM-60020-Guide-Swing Lock

22

71EM-60030

71EM-60030-Pin-Swing Lock

23

71EM-60040

71EM-60040-Cover

24

E111-4509

E111-4509-Knob

25

S015-080252

S015-080252-Bolt-Hex

26

S411-080002

S411-080002-Washer-Spring

27

S018-120352

S018-120352-Bolt-Hex

28

S681-290400

S681-290400-Grommet

3

71EH-00180

71EH-00180-Spacer

4

71EH-00190

71EH-00190-Cushion-Rubber

5

S632-030001

S632-030001-O-Ring

6

S017-160902

S017-160902-Bolt-Hex

7

S403-162002

S403-162002-Washer-Plain

8

S411-160002

S411-160002-Washer-Spring

9

E111-5001

E111-5001-Foot Rest-Rh
