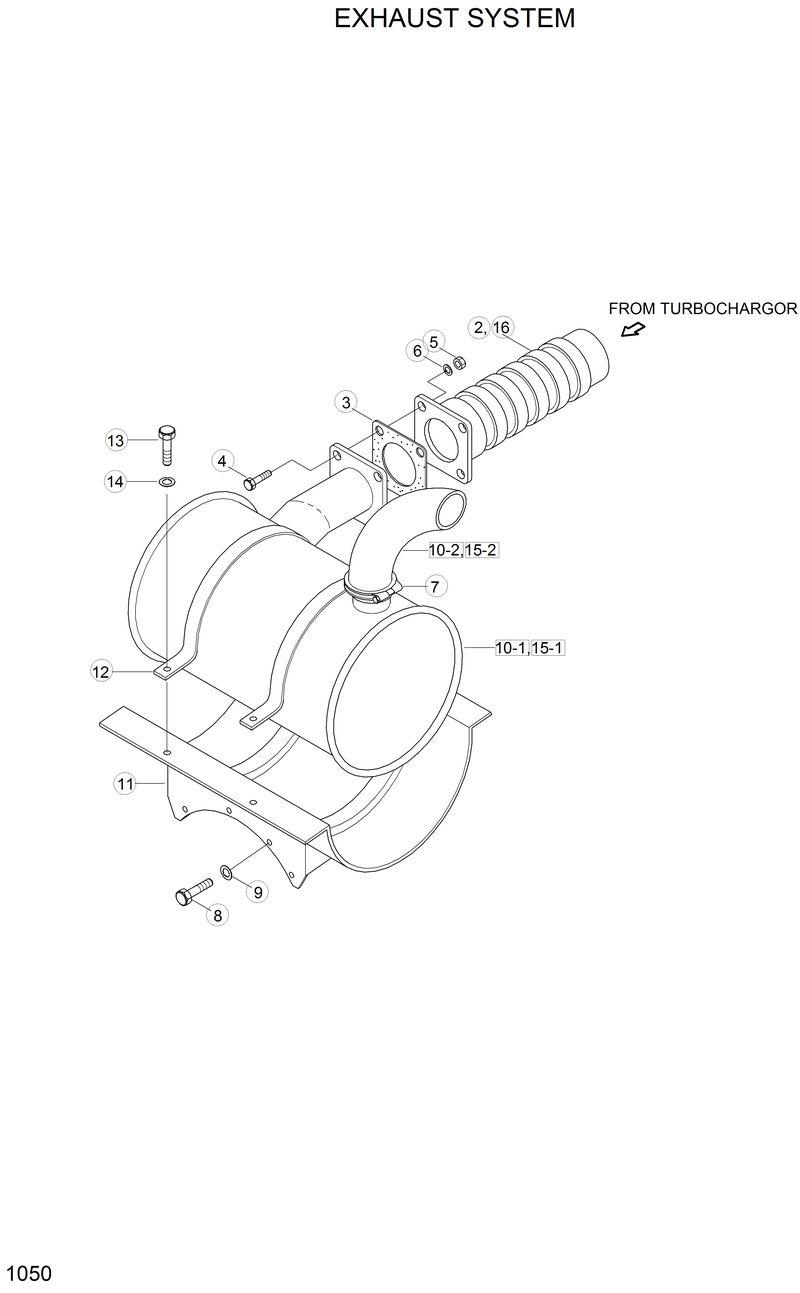

Запчасти Hyundai R210LC3LL EXHAUST SYSTEM

10

11EM-30110

11EM-30110-Muffler Assy

10-1

11EM-30021

11EM-30021-. Muffler

11

11EM-32100

11EM-32100-Bracket

12

11EM-30130

11EM-30130-Clamp-Band

13

S017-100302

S017-100302-Bolt-Hex

14

S403-102002

S403-102002-Washer-Plain

15

11EM-32310

11EM-32310-Muffler Assy

15-1

11EM-32320

11EM-32320-. Muffler

15-2

11E6-32062

11E6-32062-. Tail Pipe

15-2

11E6-32062

11E6-32062-. Tail Pipe

16

11EM-32350

11EM-32350-Bellows Pipe

2

11EM-32051

11EM-32051-Pipe-Bellows

3

E111-3027

E111-3027-Gasket

4

S017-100352

S017-100352-Bolt-Hex

5

S207-101002

S207-101002-Nut-Hex

7

11E6-32070

11E6-32070-Clamp-Exhaust Pipe

8

S017-100402

S017-100402-Bolt-Hex

9

S411-100002

S411-100002-Washer-Spring

9

S411-100002

S411-100002-Washer-Spring
