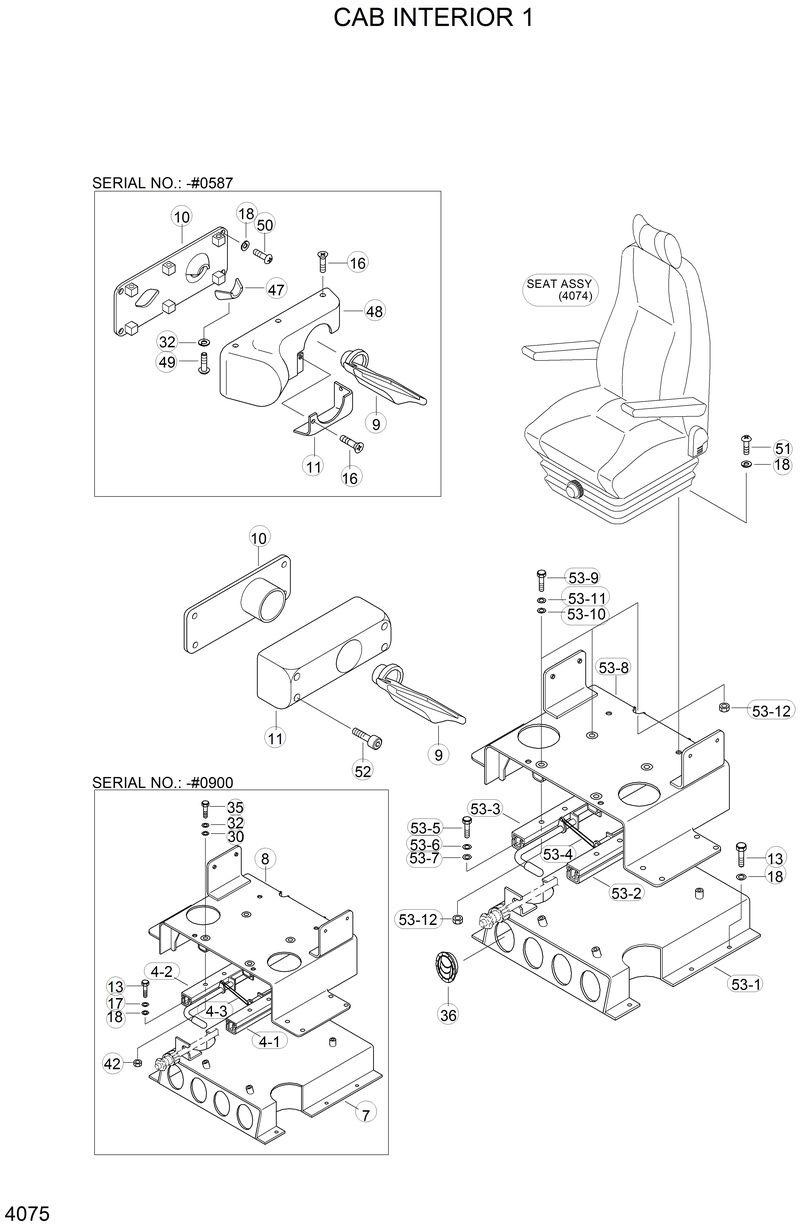

Запчасти Hyundai R210LC3LL CAB INTERIOR 1

71EM-20510

71EM-20510-Seat Base Assy

71EM-20241

71EM-20241-Support-Cluster

71EM-20260

71EM-20260-Cover-Cluster

S015-080256

S015-080256-Bolt-Hex

S015-080256

S015-080256-Bolt-Hex

71EM-20250

71EM-20250-Bracket-Cluster

S411-080006

S411-080006-Washer-Spring

S411-080006

S411-080006-Washer-Spring

10

71E6-26100

71E6-26100-Mount(1)-Cluster

11

71E6-26060

71E6-26060-Cover-Cluster

16

S151-040106

S151-040106-Screw

17

S403-082002

S403-082002-Washer-Plain

30

S403-062002

S403-062002-Washer-Plain

32

S411-060006

S411-060006-Washer-Spring

35

S015-060202

S015-060202-Bolt-Hex

36

71EM-28010

71EM-28010-Air Vent

4

@

@-Seat Rail Assy

4-1

71E6-25350

71E6-25350-. Seat Rail-Lh

4-2

71E6-25360

71E6-25360-. Seat Rail-Rh

4-3

71E6-25370

71E6-25370-. Bar-Release

42

S205-061002

S205-061002-Nut-Hex

47

71E6-25140

71E6-25140-Mount(2)-Cluster

49

S161-060166

S161-060166-Screw

50

S161-080206

S161-080206-Screw

51

S161-080256

S161-080256-Screw

52

S105-080754

S105-080754-Bolt-Socket

53

71EM-20460

71EM-20460-Seat Base Assy

53-10

S403-062006

S403-062006-. Washer-Plain

53-11

S411-060006

S411-060006-. Washer-Spring

53-12

S205-061006

S205-061006-. Nut-Hex

53-5

S161-080166

S161-080166-. Screw

53-6

S403-082006

S403-082006-. Washer-Plain

53-7

S411-080006

S411-080006-. Washer-Spring

53-9

S015-060206

S015-060206-. Bolt-Hex

7

71EM-20100

71EM-20100-Seat Base-Lower

8

71EM-20110

71EM-20110-Seat Base-Upper

9

71E6-25121

71E6-25121-Support-Cluster

N

@

@-Not Individually Supplied

N48

71E6-26860

71E6-26860-Cover-Cluster

N53-1

@

@-. Seat Base-Lower

N53-2

@

@-. Seat Rail-Lh

N53-3

@

@-. Seat Rail-Rh

N53-4

@

@-. Bar-Release

N53-8

@

@-. Seat Base-Upper
