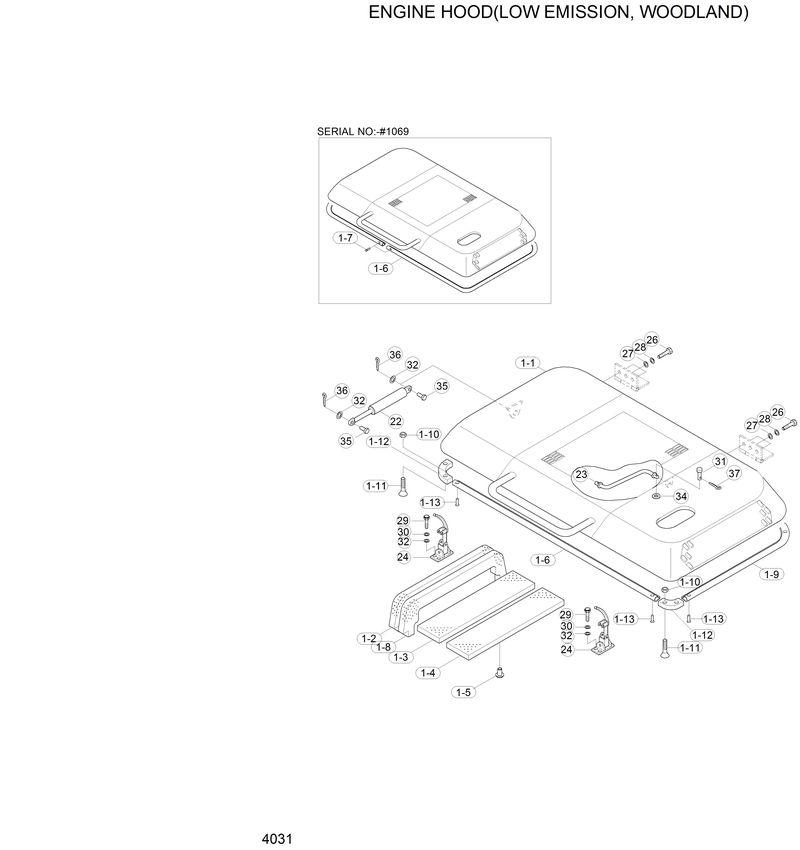

Запчасти Hyundai R210LC3LL ENGINE HOOD(LOW EMISSION, WOODLAND)

S037-122552

S037-122552-Bolt-W/Washer

72EM-51001

72EM-51001-Engine Hood Assy

72EM-51002

72EM-51002-Engine Hood Assy

S771-016800

S771-016800-. Weather Strip

S035-082522

S035-082522-Bolt-W/Washer

71EM-57600

71EM-57600-. Sponge

71EM-51580

71EM-51580-. Cap-Stud Bolt

71EM-51580

71EM-51580-. Cap-Stud Bolt

1

72EM-51000

72EM-51000-Engine Hood Assy

1-1

72EM-51010

72EM-51010-. Engine Hood Wa

1-10

S201-050002

S201-050002-. Nut-Hex

1-11

S141-050202

S141-050202-. Screw

1-12

71E5-61480

71E5-61480-. Rubber-Cushion

1-13

91EK-12010

91EK-12010-. Rivet

1-2

71EM-57440

71EM-57440-. Sponge

1-3

72EM-51020

72EM-51020-. Sponge

1-4

72EM-51030

72EM-51030-. Sponge

1-6

S771-052400

S771-052400-. Weather Strip

1-7

41EM-57310

41EM-57310-. Rivet

1-8

71EM-57610

71EM-57610-. Sponge

1-9

S771-033400

S771-033400-. Weather Strip

22

E271-3004

E271-3004-Gas Spring

23

71EM-55150

71EM-55150-Stay

24

E171-2015

E171-2015-Catch Assy

26

S017-120252

S017-120252-Bolt-Hex

27

S403-122002

S403-122002-Washer-Plain

28

S411-120002

S411-120002-Washer-Spring

29

S015-080162

S015-080162-Bolt-Hex

30

S411-080002

S411-080002-Washer-Spring

31

S491-120352

S491-120352-Pin-Clevis

32

S403-085002

S403-085002-Washer-Plain

34

S403-125002

S403-125002-Washer-Plain

35

S491-080222

S491-080222-Pin-Clevis

36

S501-090002

S501-090002-Pin-Self Locking

37

S501-120002

S501-120002-Pin-Self Locking
