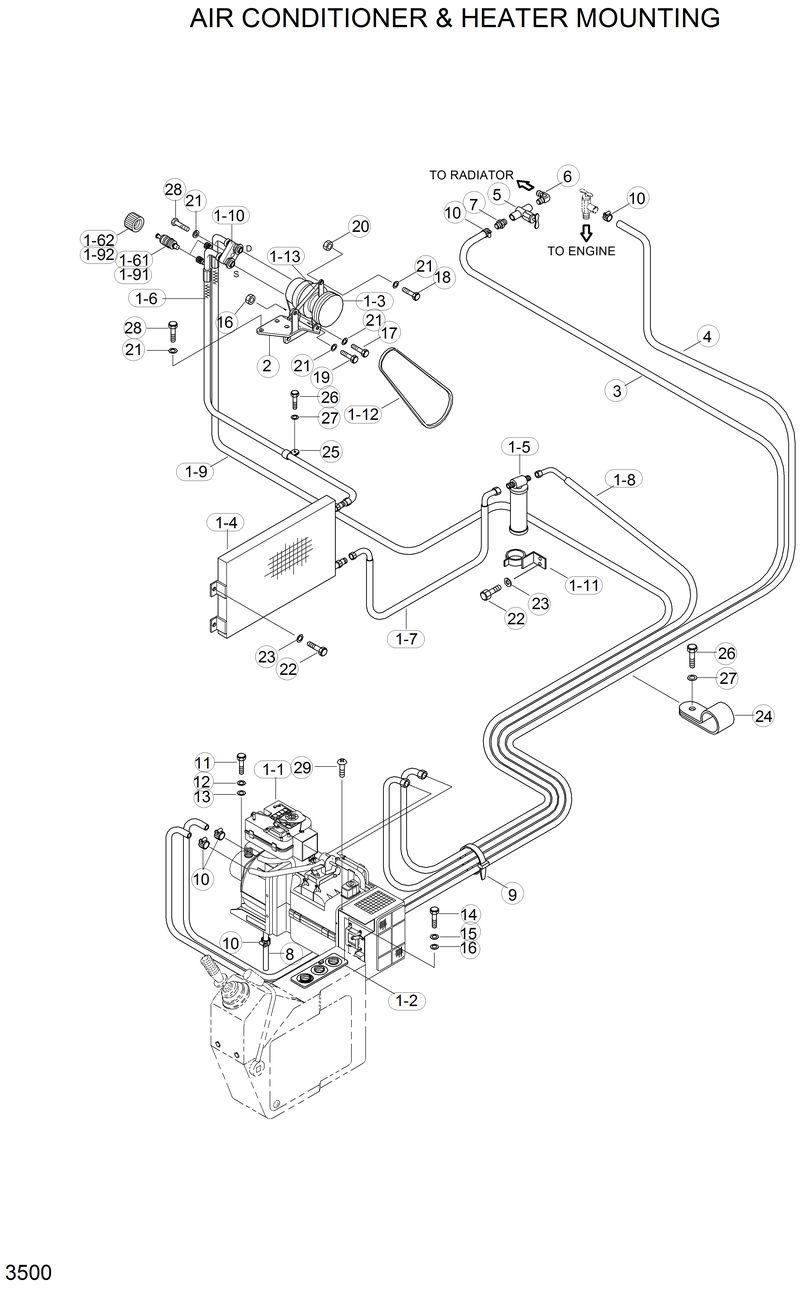

Запчасти Hyundai R210LC3LL AIR CONDITIONER & HEATER MOUNTING
№
Артикул
Название
Примечание
Количество
1
11W1-92510
11W1-92510-Air Con & Heater Assy
1-1
11EM-90020
11EM-90020-. Heater & Evap Unit
1-10
12E3-3509
12E3-3509-. Plate-Comp Joint
1-11
11E6-36100
11E6-36100-. Bracket-R/Drier
1-13
14L1-01330
14L1-01330-. Piece-Tension
1-2
11EM-90030
11EM-90030-. Control Assy
1-21
AE60001100-2
AE60001100-2-.. Knob
1-3
11EM-90040
11EM-90040-. Compressor Assy
1-4
11EM-90050
11EM-90050-. Condenser Assy
1-5
11E6-36050
11E6-36050-. R/Drier Assy
1-6
11EK-90030
11EK-90030-. Hose-Discharge
1-62
A3043-007-01-4
A3043-007-01-4-.. Cap-H
1-7
11EM-90060
11EM-90060-. Hose-Liquid(A)
1-8
11W1-90150
11W1-90150-. Hose-Liquid(B)
1-9
11W1-90080
11W1-90080-. Hose-Suction
1-91
A3041-005-01-4
A3041-005-01-4-.. Valve-Core
1-91
A3041-005-01-4
A3041-005-01-4-.. Valve-Core
1-92
A3043-008-01-4
A3043-008-01-4-.. Cap-L
10
S520-015000
S520-015000-Clamp-Hose
13
S403-122002
S403-122002-Washer-Plain
14
S015-050162
S015-050162-Bolt-Hex
15
S411-050002
S411-050002-Washer-Spring
16
S403-052002
S403-052002-Washer-Plain
17
S018-100202
S018-100202-Bolt-Hex
18
S017-100502
S017-100502-Bolt-Hex
19
S017-100352
S017-100352-Bolt-Hex
2
11EM-93012
11EM-93012-Bracket-Comp Mount
20
S205-101002
S205-101002-Nut-Hex
21
S411-100002
S411-100002-Washer-Spring
22
S015-080162
S015-080162-Bolt-Hex
23
S411-080002
S411-080002-Washer-Spring
24
S542-220002
S542-220002-Clamp-Tube
25
S541-180002
S541-180002-Clamp-Tube
26
S015-060162
S015-060162-Bolt-Hex
27
S411-060002
S411-060002-Washer-Spring
28
S017-100302
S017-100302-Bolt-Hex
29
S152-040122
S152-040122-Screw-Tapping
3
21W1-92080
21W1-92080-Hose-Outlet
4
21W1-92050
21W1-92050-Hose-Inlet
5
31E9-1082
31E9-1082-Valve-Stop
6
31E5-3054
31E5-3054-Elbow
7
11EK-92050
11EK-92050-Connector
8
11EK-92060
11EK-92060-Hose-Drain
9
S551-035146
S551-035146-Tie-Wire
Выбрано товаров: 48
