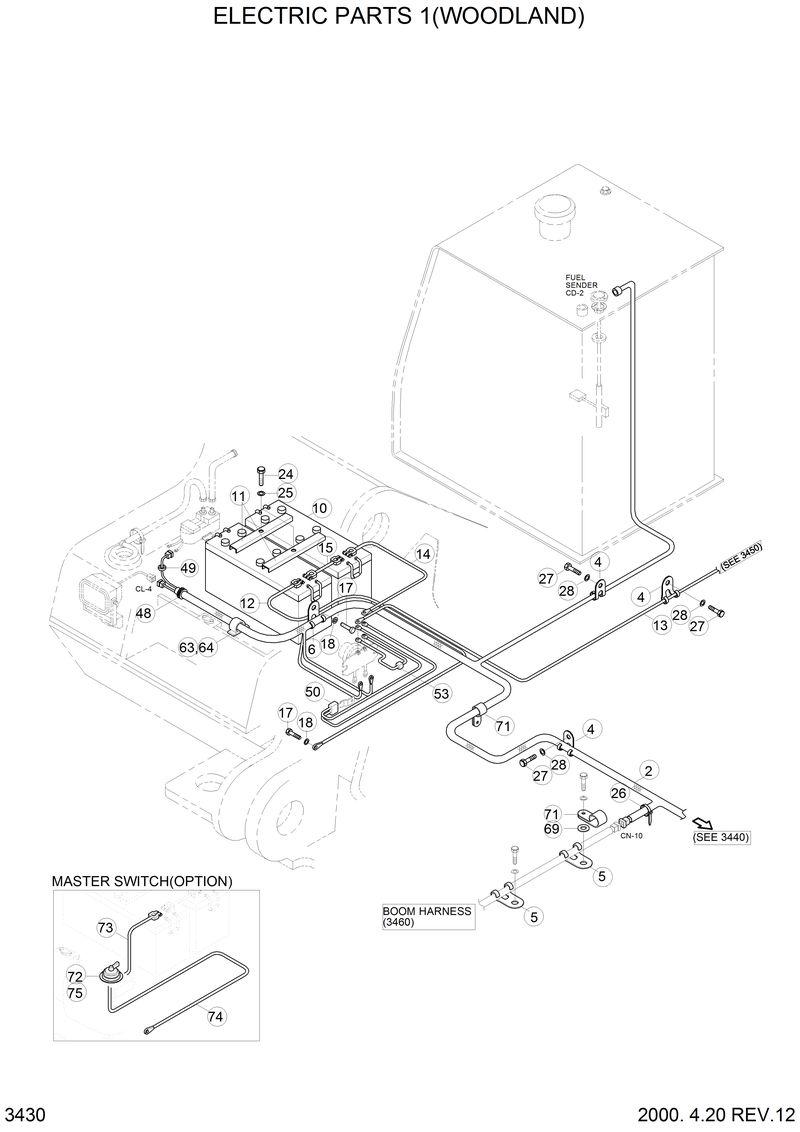

Запчасти Hyundai R210LC3LL ELECTRIC PARTS 1(WOODLAND)

21EM-40251

21EM-40251-Harness-Rh

10

E125-1501

E125-1501-Battery Assy

11

E125-1502

E125-1502-Bracket-Battery

12

21EK-15041

21EK-15041-Cable(Batt-Earth)

13

21E2-60010

21E2-60010-Cable(Relay-Start)

14

21E2-60410

21E2-60410-Cable(Batt-Batt)

15

21E2-60400

21E2-60400-Cable(Batt-Batt)

17

S017-100152

S017-100152-Bolt-Hex

18

S411-100002

S411-100002-Washer-Spring

2

21EM-40250

21EM-40250-Harness-Rh

24

S017-102652

S017-102652-Bolt-Hex

25

S403-105002

S403-105002-Washer-Plain

26

S552-050203

S552-050203-Clamp-Band

27

S017-120152

S017-120152-Bolt-Hex

28

S411-120002

S411-120002-Washer-Spring

4

21E9-00170

21E9-00170-Clip-Harness

48

S681-230400

S681-230400-Grommet

49

S681-100400

S681-100400-Grommet

5

S593-000902

S593-000902-Clip-Harness

50

21EA-40170

21EA-40170-Link-Fusible

53

21E1-21110

21E1-21110-Wire Link-Batt Ry

63

21E9-06220

21E9-06220-Silicon

64

21E9-06230

21E9-06230-Clamp-Quick

69

S403-082002

S403-082002-Washer-Plain

71

31E7-0316

31E7-0316-Clamp

72

21L7-10500

21L7-10500-Switch-Master

73

21EM-11000

21EM-11000-Cable(Batt-Master Sw)

74

21EM-11010

21EM-11010-Cable(Master Sw-Earth)

75

21EN-00420

21EN-00420-Decal-Master Switch
