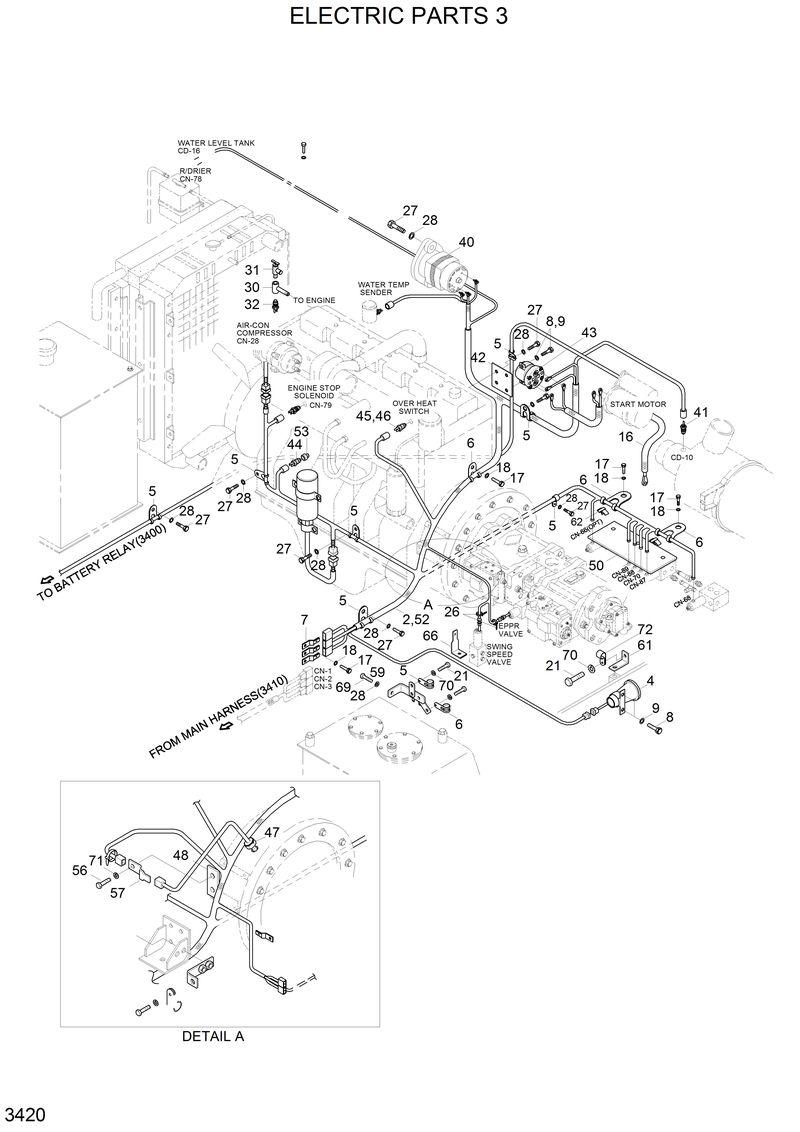

Запчасти Hyundai R210LC3LL ELECTRIC PARTS 3

21E6-40030

21E6-40030-Alternator Assy

16

21EH-30720

21EH-30720-Strap-Earth

17

S017-100162

S017-100162-Bolt-Hex

18

S411-100002

S411-100002-Washer-Spring

2

21EM-10312

21EM-10312-Harness-Engine

21

S017-080162

S017-080162-Bolt-Hex

26

S552-050203

S552-050203-Clamp-Band

27

S017-120162

S017-120162-Bolt-Hex

28

S411-120002

S411-120002-Washer-Spring

29

21E7-0612

21E7-0612-Plate-Connector

30

21E1-49910

21E1-49910-Adapter

31

14L1-01370

14L1-01370-Valve-Heater

32

E123-4012

E123-4012-Sender-Temp

4

21E4-2003

21E4-2003-Buzzer-Travel Alarm

40

21E6-40011

21E6-40011-Alternator Assy

41

E128-0059

E128-0059-Switch-Air Cleaner

42

21E1-49900

21E1-49900-Bracket-Start Relay

43

E225-0004

E225-0004-Relay-Start

44

21E3-5001

21E3-5001-Sw-Eng Oil Press

45

21L3-00500

21L3-00500-Adapter-Oil Temp

46

21E3-5002

21E3-5002-Switch-Water Temp

47

21E3-0042

21E3-0042-Sensor-Speed

48

21EL-30150

21EL-30150-Bracket-Speed Sensor

5

21E9-00170

21E9-00170-Clip-Harness

50

21EM-40130

21EM-40130-Bracket-Connector

52

21EM-10320 IS DescriptionHarness-Eng Qty1 Serial_N

21EM-10320 IS DescriptionHarness-Eng Qty1 Serial_No Itc RmkLOW EM-Harness-Eng

53

21EN-00511

21EN-00511-Adapter-Oil Pressure

53-1

21EN-00520

21EN-00520-. O-Ring

55

21E1-21120

21E1-21120-Wire Link-Alternator

56

S015-060162

S015-060162-Bolt-Hex

57

21E9-06080

21E9-06080-Plate

58

21E9-06110

21E9-06110-Plate

59

21E9-06120

21E9-06120-Plate

6

S593-000902

S593-000902-Clip-Harness

60

21E9-06130

21E9-06130-Plate

61

21E9-06240

21E9-06240-Plate

62

21E9-06160

21E9-06160-Clip

66

21EM-10850

21EM-10850-Plate

67

S552-035146

S552-035146-Clamp-Band

69

S017-120252

S017-120252-Bolt-Hex

7

21E7-0606

21E7-0606-Plate-Connector

70

S403-082002

S403-082002-Washer-Plain

71

S403-062002

S403-062002-Washer-Plain

72

31E7-0316

31E7-0316-Clamp

8

S015-060202

S015-060202-Bolt-Hex

9

S411-060002

S411-060002-Washer-Spring
