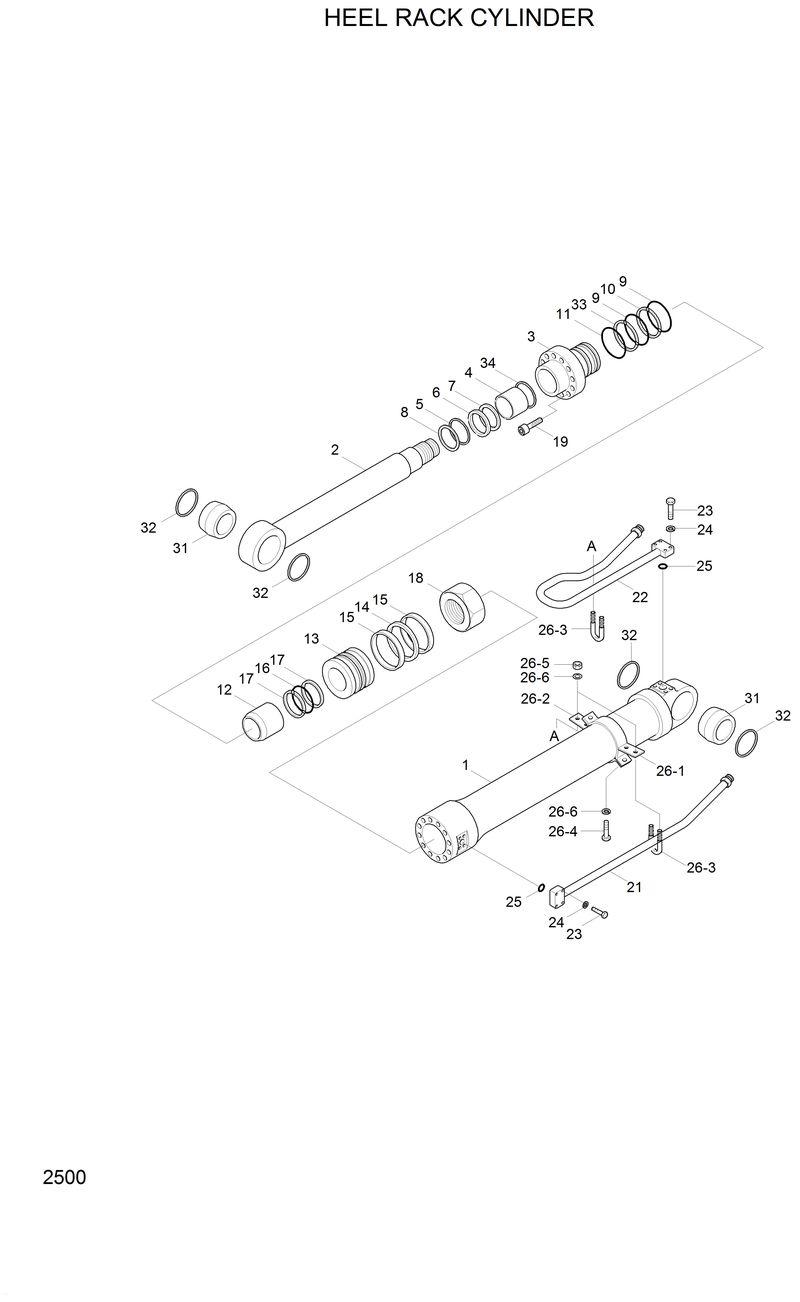

Запчасти Hyundai R210LC3LL HEEL RACK CYLINDER

*-1

31W1-51330

31W1-51330-. Heel Rack Cylinder

1

31Y6-00190

31Y6-00190-.. Tube Assy

12

31YC-22010

31YC-22010-.. Ring-Cushion

13

31Y1-05540

31Y1-05540-.. Piston

18

31YC-65420

31YC-65420-.. Nut-Nylon

19

S109-140604

S109-140604-.. Bolt-Socket

2

31Y6-00220

31Y6-00220-.. Rod Assy

21

31Y6-00271

31Y6-00271-.. Pipe Ass'Y-R

22

31Y6-00281

31Y6-00281-.. Pipe Ass'Y-B

23

S017-100602

S017-100602-.. Bolt-Hex

24

S411-100002

S411-100002-.. Washer-Spring

26

31Y6-00250

31Y6-00250-.. Band Assy

26-1

31Y6-00260

31Y6-00260-... Band Sub Assy

26-2

31Y6-00380

31Y6-00380-... Band Sub Assy

26-3

S071-022730

S071-022730-... U-Bolt

26-4

S011-100352

S011-100352-... Bolt-Hex

26-5

S201-101002

S201-101002-... Nut-Hex

26-6

S411-100002

S411-100002-... Washer-Spring

3

31Y1-05530

31Y1-05530-.. Gland

31

31YC-11081

31YC-11081-.. Bushing-Pin

34

Y191-086000

Y191-086000-.. Ring-Snap

4

S732-080040

S732-080040-.. Bushing

5

Y200-080011

Y200-080011-.. Seal-Rod

K

31Y6-00290

31Y6-00290-Seal Kit

K10

S641-110002

S641-110002-.. Ring-Back Up

K11

S632-120001

S632-120001-.. O-Ring

K14

Y420-120000

Y420-120000-.. Seal-Piston

K15

Y310-120000

Y310-120000-.. Ring-Wear

K16

S632-060004

S632-060004-.. O-Ring

K17

S642-060003

S642-060003-.. Ring-Back Up

K25

S631-026004

S631-026004-.. O-Ring

K32

S700-070206

S700-070206-.. Seal-Dust

K33

S641-110003

S641-110003-.. Ring-Back Up

K6

Y180-080020

Y180-080020-.. Ring-Back Up

K7

Y240-080011

Y240-080011-.. Ring-Buffer

K8

Y100-080011

Y100-080011-.. Wiper-Dust

K9

S631-110004

S631-110004-.. O-Ring

N*

RL301-10931

RL301-10931-Heel Rack Cylinder
