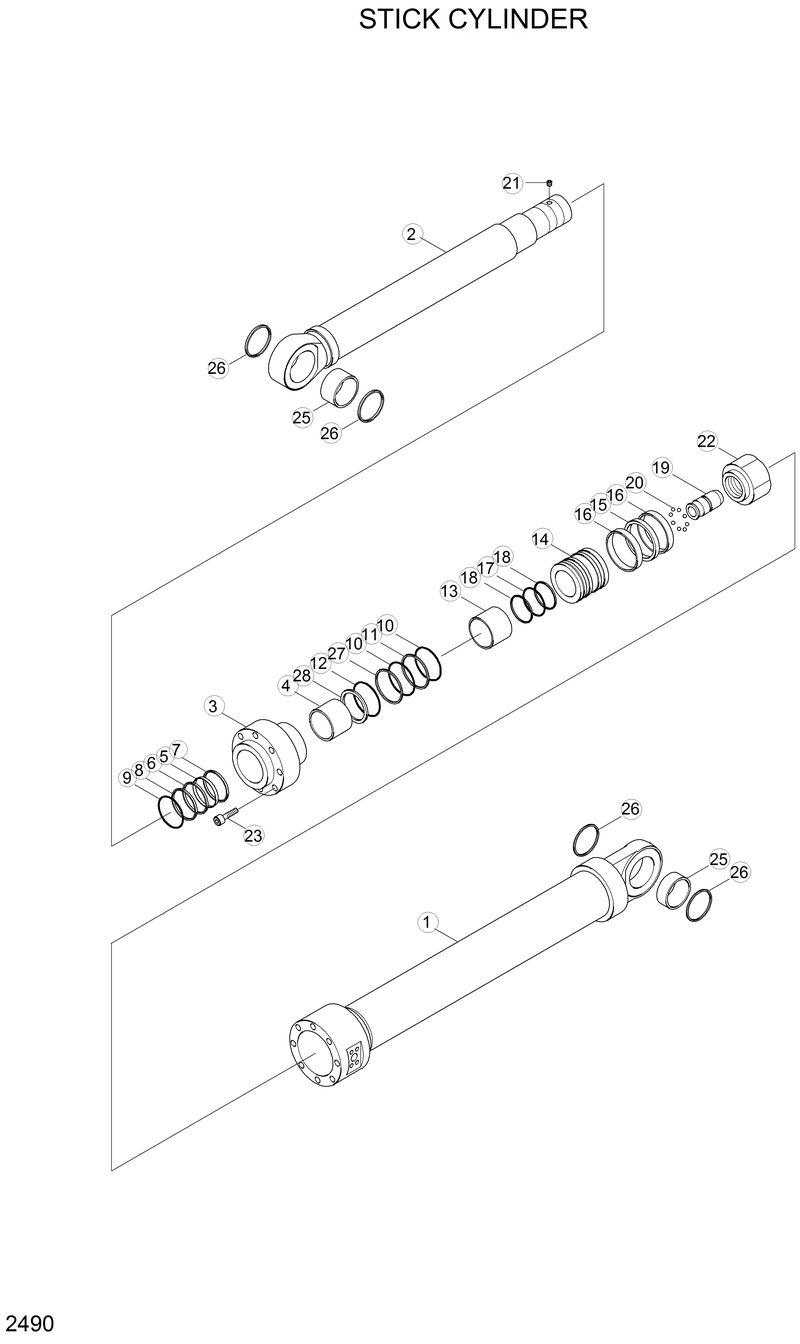

Запчасти Hyundai R210LC3LL STICK CYLINDER

*

RL301-10911

RL301-10911-Stick Cylinder

1

31Y6-00120

31Y6-00120-. Tube Assy

13

31YC-22060

31YC-22060-. Ring-Cushion

14

31Y1-07110

31Y1-07110-. Piston

19

31YC-29120

31YC-29120-. Spear-Cushion

2

31Y6-00150

31Y6-00150-. Rod Assy

20

Y890-015011

Y890-015011-. Ball-Steel

21

S113-080124

S113-080124-. Screw-Soc Hd Set

22

31YC-65510

31YC-65510-. Nut-Nylon

23

S109-240754

S109-240754-. Bolt-Hexagon Socket Head

25

31YC-11121

31YC-11121-. Bushing-Pin

28

Y191-112000

Y191-112000-. Ring-Snap

3

31Y1-07100

31Y1-07100-. Gland

4

S732-105050

S732-105050-. Bushing

K

31Y6-00180

31Y6-00180-Seal Kit

K10

S631-140004

S631-140004-. O-Ring

K11

S641-140002

S641-140002-. Ring-Back Up

K12

S632-150001

S632-150001-. O-Ring

K15

Y420-150000

Y420-150000-. Seal-Piston

K16

Y310-150000

Y310-150000-. Ring-Wear

K17

S632-070004

S632-070004-. O-Ring

K18

S642-070003

S642-070003-. Ring-Back Up

K26

S700-075205

S700-075205-. Seal-Dust

K27

S641-140003

S641-140003-. Ring-Back Up

K5

Y200-105011

Y200-105011-. Seal-Rod

K6

Y180-105120

Y180-105120-. Ring-Back Up

K7

Y240-105011

Y240-105011-. Ring-Buffer

K8

Y110-105011

Y110-105011-. Wiper-Dust

K9

Y190-121000

Y190-121000-. Ring-Snap
