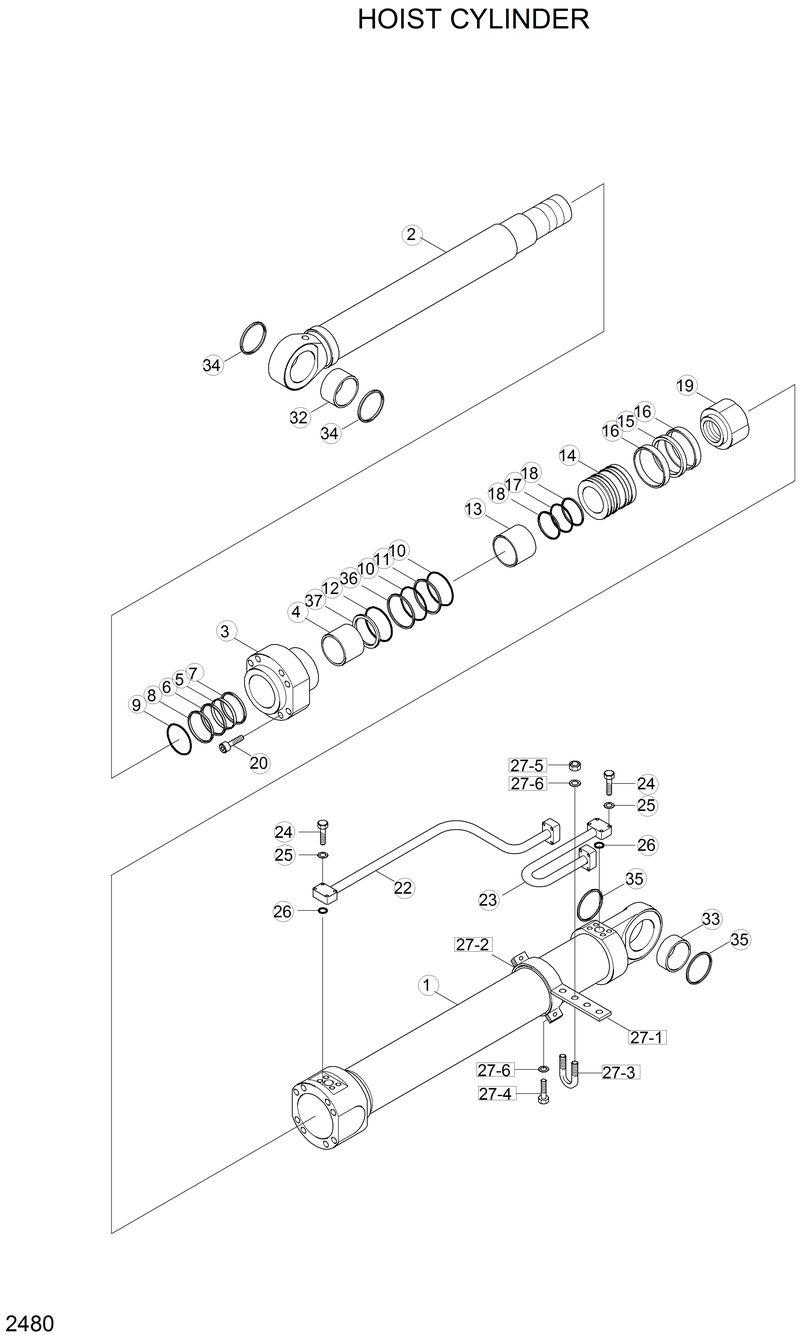

Запчасти Hyundai R210LC3LL HOIST CYLINDER

31W1-60021

31W1-60021-Hoist Cylinder-Rh

31Y6-00630

31Y6-00630-. Pipe Assy-B,Rh

31Y6-00610

31Y6-00610-. Pipe Assy-R,Rh

*

31W1-60011

31W1-60011-Hoist Cylinder-Lh

*-1

31W1-51310

31W1-51310-. Hoist Cyl Sub Assy

1

31Y6-00010

31Y6-00010-.. Tube Assy

13

31YC-22050

31YC-22050-.. Ring-Cushion

14

31Y1-06940

31Y1-06940-.. Piston

19

31YC-65480

31YC-65480-.. Nut-Nylon

2

31Y6-00041

31Y6-00041-.. Rod Assy

20

S109-240754

S109-240754-.. Deleted...

22

31Y6-00600

31Y6-00600-. Pipe Assy-R,Lh

23

31Y6-00620

31Y6-00620-. Pipe Assy-B,Lh

24

S017-120702

S017-120702-. Bolt-Hex

25

S411-120002

S411-120002-. Washer-Spring

27

31Y1-06950

31Y1-06950-. Band Assy

27-1

31Y1-06960

31Y1-06960-.. Band Sub Assy

27-2

31YC-31160

31YC-31160-.. Band

27-3

S071-023430

S071-023430-.. U-Bolt

27-4

S011-100352

S011-100352-.. Bolt-Hex

27-5

S201-101002

S201-101002-.. Nut-Hex

27-6

S411-100002

S411-100002-.. Washer-Spring

32

31YC-11121

31YC-11121-.. Bushing-Pin

33

31YC-19141

31YC-19141-.. Bushing-Pin

37

Y191-102000

Y191-102000-.. Ring-Snap

4

S732-095040

S732-095040-.. Bushing

K

31Y6-00110

31Y6-00110-Seal Kit

K10

S631-135004

S631-135004-.. O-Ring

K11

S641-135002

S641-135002-.. Ring-Back Up

K12

S632-145001

S632-145001-.. O-Ring

K15

Y420-145000

Y420-145000-.. Seal-Piston

K16

Y310-145100

Y310-145100-.. Ring-Wear

K17

S632-070004

S632-070004-.. O-Ring

K18

S642-070003

S642-070003-.. Ring-Back Up

K26

S631-032004

S631-032004-. O-Ring

K34

S700-075205

S700-075205-.. Seal-Dust

K35

S700-070206

S700-070206-.. Seal-Dust

K36

S641-135003

S641-135003-.. Ring-Back Up

K5

Y200-095011

Y200-095011-.. Seal-Rod

K6

Y180-095020

Y180-095020-.. Ring-Back Up

K7

Y240-095011

Y240-095011-.. Ring-Buffer

K8

Y110-095011

Y110-095011-.. Wiper-Dust

K9

Y190-109000

Y190-109000-.. Ring-Snap

N3

31Y1-06930

31Y1-06930-.. Gland
