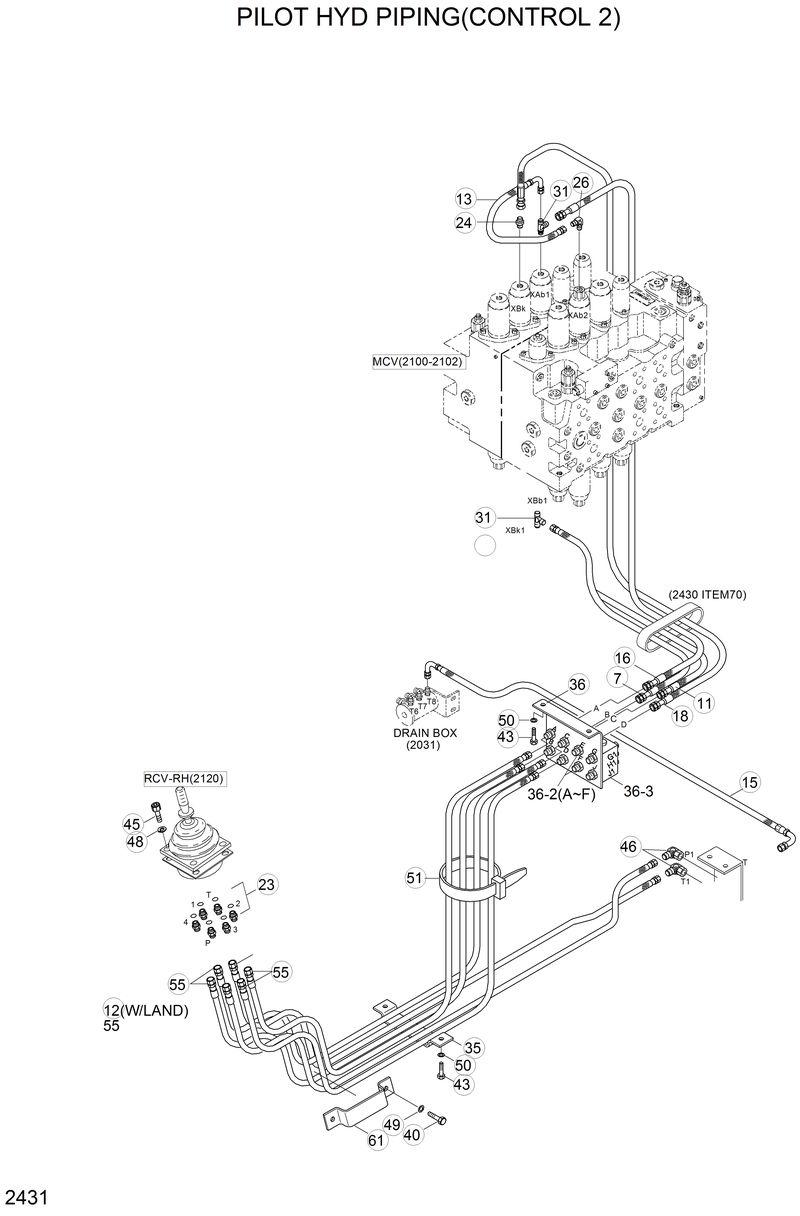

Запчасти Hyundai R210LC3LL PILOT HYD PIPING(CONTROL 2)

S403-082006

S403-082006-Washer-Plain

P850-042103

P850-042103-Hose Assy-Synflex Thd

11

P840-042021

P840-042021-Hose Assy-Synflex Thd

12

P850-042043

P850-042043-Hose Assy-Synflex Thd

13

P860-042008

P860-042008-Hose Assy-Synflex Thd

15

P863-042027

P863-042027-Hose Assy-Synflex Thd

16

P840-042028

P840-042028-Hose Assy-Synflex Thd

18

P840-042029

P840-042029-Hose Assy-Synflex Thd

23

P010-110002

P010-110002-Connector

24

P010-110013

P010-110013-Connector

26

P020-110012

P020-110012-Elbow-90

31

31EH-00710

31EH-00710-Tee

35

31E9-10410

31E9-10410-Clamp-Hose

36

31EM-20340

31EM-20340-Terminal Assy

36-2

31E4-3033

31E4-3033-. Connector-2nut

36-3

31EK-20310

31EK-20310-. Shuttle-5 Port

43

S017-100252

S017-100252-Bolt-Hex

45

S175-060256

S175-060256-Bolt-Hex,Rd Hd

46

31M5-56270

31M5-56270-Elbow-90

48

S411-060006

S411-060006-Washer-Spring

49

S411-080002

S411-080002-Washer-Spring

50

S411-100002

S411-100002-Washer-Spring

51

S551-050203

S551-050203-Clamp-Band

52

P860-042021

P860-042021-Hose Assy-Synflex Thd

55

P850-042041

P850-042041-Hose Assy-Synflex Thd

61

31E6-20030

31E6-20030-Clamp-Hose

63

S015-080206

S015-080206-Bolt-Hex

7

P840-042020

P840-042020-Hose Assy-Synflex Thd

75

S631-011001

S631-011001-O-Ring

76

S631-014001

S631-014001-O-Ring
