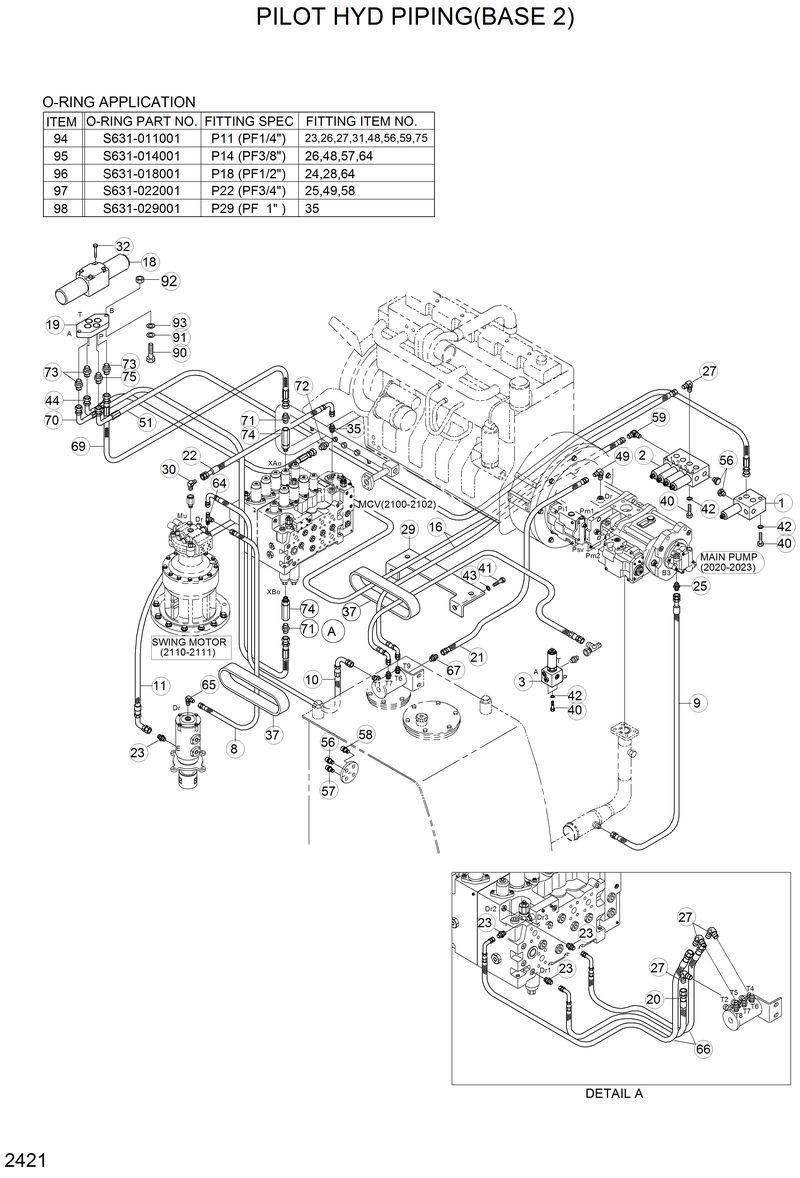

Запчасти Hyundai R210LC3LL PILOT HYD PIPING(BASE 2)

1

31EM-20150

31EM-20150-Valve-Solenoid(1ea)

10

P623-082040

P623-082040-Hose Assy-Thd

11

P850-042051

P850-042051-Hose Assy

16

P843-042028

P843-042028-Hose Assy-Synflex

18

P33-0004

P33-0004-Selector Valve

19

P33-0029

P33-0029-Plate-Valve Sub

2

31EN-12260

31EN-12260-Valve-Solenoid(4ea)

20

P860-042033

P860-042033-Hose Assy-Synflex Thd

21

P623-122016

P623-122016-Hose Assy-Thd 0x90

22

P620-162020

P620-162020-Hose Assy-Thd 0x90

23

P010-110002

P010-110002-Connector

25

P010-110005

P010-110005-Connector

27

P020-110001

P020-110001-Elbow-90

29

31EM-20220

31EM-20220-Bracket-Hose

3

31EM-20030

31EM-20030-Valve-Reducing

30

31E1-30120

31E1-30120-Elbow-90

32

P3653

P3653-Bolt Kit

35

P010-110006

P010-110006-Connector

37

31EM-20080

31EM-20080-Grommet

40

S015-080202

S015-080202-Bolt-Hex

41

S017-100202

S017-100202-Bolt-Hex

42

S411-080002

S411-080002-Washer-Spring

43

S411-100002

S411-100002-Washer-Spring

44

31W1-20010

31W1-20010-Hose Assy

49

P030-110004

P030-110004-Elbow-45

51

P860-042066

P860-042066-Hose Assy-Synflex Thd

56

P290-100102

P290-100102-Plug-Cap

57

P220-110103

P220-110103-Plug

58

P220-110105

P220-110105-Plug

59

P030-110001

P030-110001-Elbow-45

64

P310-060608

P310-060608-Tee

65

P020-110014

P020-110014-Elbow-90

66

P860-042037

P860-042037-Hose Assy-Synflex Thd

67

P101-112127

P101-112127-Connector-Long

69

31W1-20020

31W1-20020-Hose Assy

70

31W1-20030

31W1-20030-Hose Assy

71

31W1-20050

31W1-20050-Connector

72

9402747

9402747-Connector

73

203198700

203198700-Connector

74

31EM-10060

31EM-10060-Port Relief Valve

75

P010-530002

P010-530002-Connector

8

P860-062024

P860-062024-Hose Assy-Synflex Thd

9

P600-122011

P600-122011-Hose Assy-Thd

94

S631-011001

S631-011001-O-Ring

95

S631-014001

S631-014001-O-Ring

96

S631-018001

S631-018001-O-Ring

97

S631-022001

S631-022001-O-Ring

98

S631-029001

S631-029001-O-Ring
