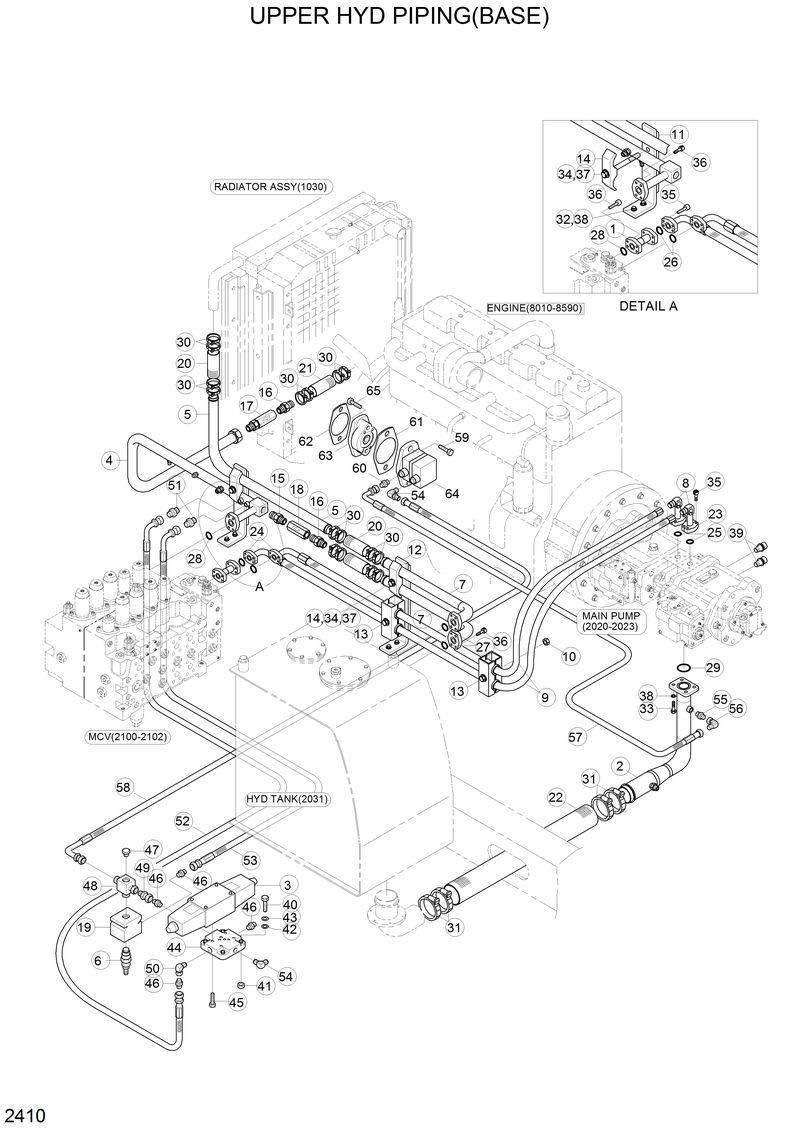

Запчасти Hyundai R210LC3LL UPPER HYD PIPING(BASE)
№
Артикул
Название
Примечание
Количество
1
31EM-11150
31EM-11150-Pipe Assy
11
31EM-11110
31EM-11110-Bracket-Return
12
31EM-11120
31EM-11120-Bracket-Return
13
31EK-11110
31EK-11110-Clamp-Hose
15
31E4-3049
31E4-3049-Fitting
16
31E9-0147
31E9-0147-Fitting
17
31E9-0141
31E9-0141-Check Valve
18
31E9-0142
31E9-0142-Check Valve
19
P33-0257
P33-0257-Body-Relief Valve
2
31W1-10010
31W1-10010-Pipe W.A
20
P760-072020
P760-072020-Hose-Rubber
21
P760-072030
P760-072030-Hose-Rubber
23
P174-120102
P174-120102-Flange-Split
25
CO0418A
CO0418A-O-Ring
26
CO0423A
CO0423A-O-Ring
27
CO0352A
CO0352A-O-Ring
28
S632-055001
S632-055001-O-Ring
3
P33-0256
P33-0256-Dg Valve
31
S520-100000
S520-100000-Clamp
33
S017-120352
S017-120352-Bolt-Hex
34
S017-101002
S017-101002-Bolt-Hex
35
S107-100304
S107-100304-Bolt-Socket
36
S107-120254
S107-120254-Bolt-Socket
4
31W1-10030
31W1-10030-Pipe Wa
40
S017-100502
S017-100502-Bolt-Hex
41
S205-101002
S205-101002-Nut-Hex
41
S205-101002
S205-101002-Nut-Hex
42
S411-100002
S411-100002-Washer-Spring
42
S411-100002
S411-100002-Washer-Spring
43
S403-100002
S403-100002-Washer-Plain
44
P33-0255
P33-0255-Plate-Valve Sub
45
P81-0096
P81-0096-Bolt Kit
46
9410203
9410203-Union
47
20988R1
20988R1-Plug
48
RL800-0094
RL800-0094-Tee
49
RL800-0062
RL800-0062-Fitting
5
31EM-11051
31EM-11051-Pipe Assy
50
9410281
9410281-Fitting
51
RL800-0058
RL800-0058-Fitting
52
31W1-10040
31W1-10040-Hose Assy-Thd,0x90
53
31W1-10050
31W1-10050-Hose Assy
54
9410977
9410977-Elbow
55
RL800-0059
RL800-0059-Fitting
56
9410285
9410285-Elbow-90
57
31W1-10070
31W1-10070-Hose Assy
58
31W1-10080
31W1-10080-Hose Assy
59
P81-0223
P81-0223-Bolt
6
P33-0258
P33-0258-Relief Valve
60
9410207
9410207-Connetor
62
3919601
3919601-Gasket
63
39233200E
39233200E-Adapter-Pump
64
P31-0078
P31-0078-Hyd Pump Assy
65
P81-0224
P81-0224-Bolt-Hex
7
31EM-11181
31EM-11181-Pipe Assy
8
31EM-11221
31EM-11221-Pipe Assy
9
31EM-11230
31EM-11230-Hose Assy
Выбрано товаров: 65
