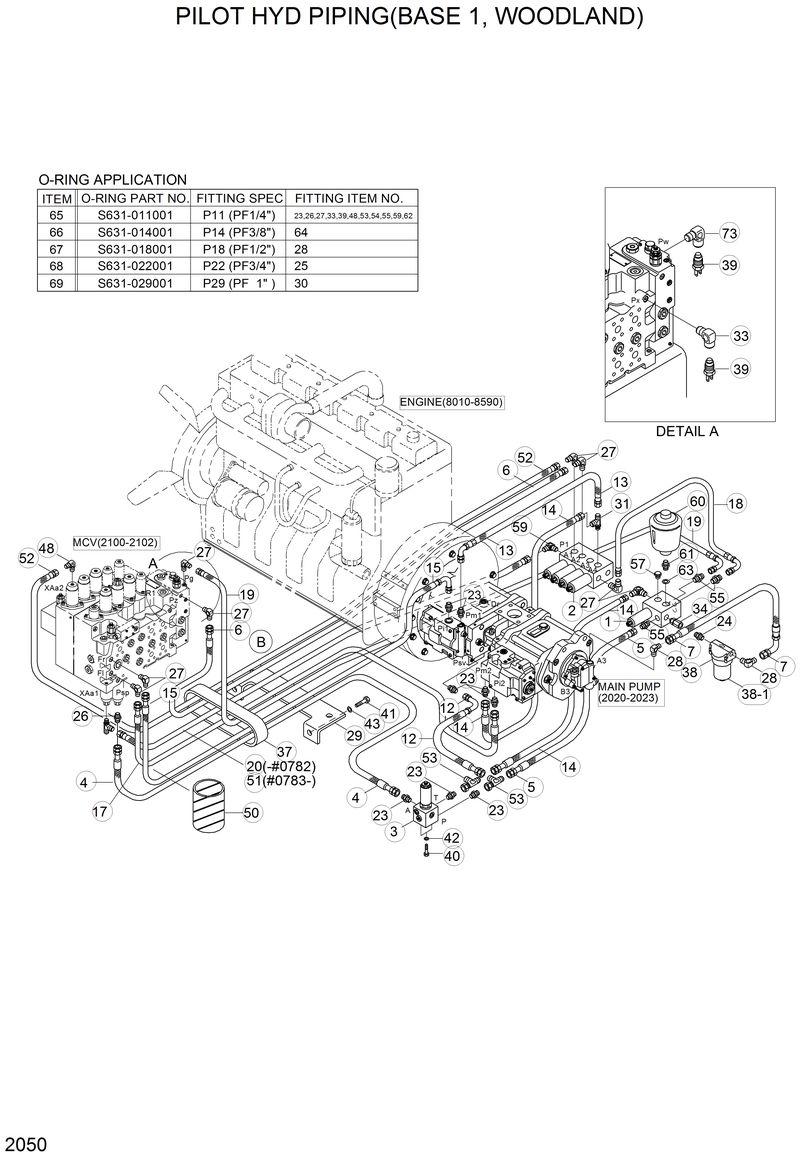

Запчасти Hyundai R210LC3LL PILOT HYD PIPING(BASE 1, WOODLAND)
№
Артикул
Название
Примечание
Количество
1
31EM-20150
31EM-20150-1 Solenoid Valve
14
P840-042012
P840-042012-Hose Assy-Syn Thd
15
P860-042044
P860-042044-Hose Assy-Syn 0x90
17
P840-042040
P840-042040-Hose Assy-Syn Thd
18
P860-042008
P860-042008-Hose Assy-Syn 0x90
2
31EN-12260
31EN-12260-4 Solenoid Valve
26
P010-110013
P010-110013-Connector
28
P020-110003
P020-110003-Elbow-90
29
31EM-20220
31EM-20220-Bracket-Hose
3
31EM-20030
31EM-20030-Valve-Reducing
31
P320-040404
P320-040404-Tee-Run Type
34
31EM-20160
31EM-20160-Adaptor
37
31EM-20080
31EM-20080-Grommet
39
21E5-40171
21E5-40171-Switch-Pressure
4
P840-042029
P840-042029-Hose Assy-Syn Thd
40
S015-080202
S015-080202-Bolt-Hex
41
S017-100202
S017-100202-Bolt-Hex
42
S411-080002
S411-080002-Washer-Spring
43
S411-100002
S411-100002-Washer-Spring
50
31EF-03100
31EF-03100-Cover
51
P843-042032
P843-042032-Hose Assy-Syn Thd
52
P840-042045
P840-042045-Hose Assy-Syn Thd
53
32E6-10460
32E6-10460-Tee-Swevel Nut
55
31EK-20100
31EK-20100-Filter-Last Guard
57
P220-110103
P220-110103-Plug-Hex
59
P030-110001
P030-110001-Elbow-45
6
P840-042036
P840-042036-Hose Assy-Syn Thd
61
31E9-20060
31E9-20060-Fitting
63
P391-080000
P391-080000-Washer-Copper
65
S631-011001
S631-011001-O-Ring
67
S631-018001
S631-018001-O-Ring
68
S631-022001
S631-022001-O-Ring
69
S631-029001
S631-029001-O-Ring
7
P620-081012
P620-081012-Hose Assy-Thd 0x90
73
31E5-11110
31E5-11110-Adapter
Выбрано товаров: 50
