Запчасти Hyundai R210LC3LL UPPER HYD PIPING(TRAVEL)

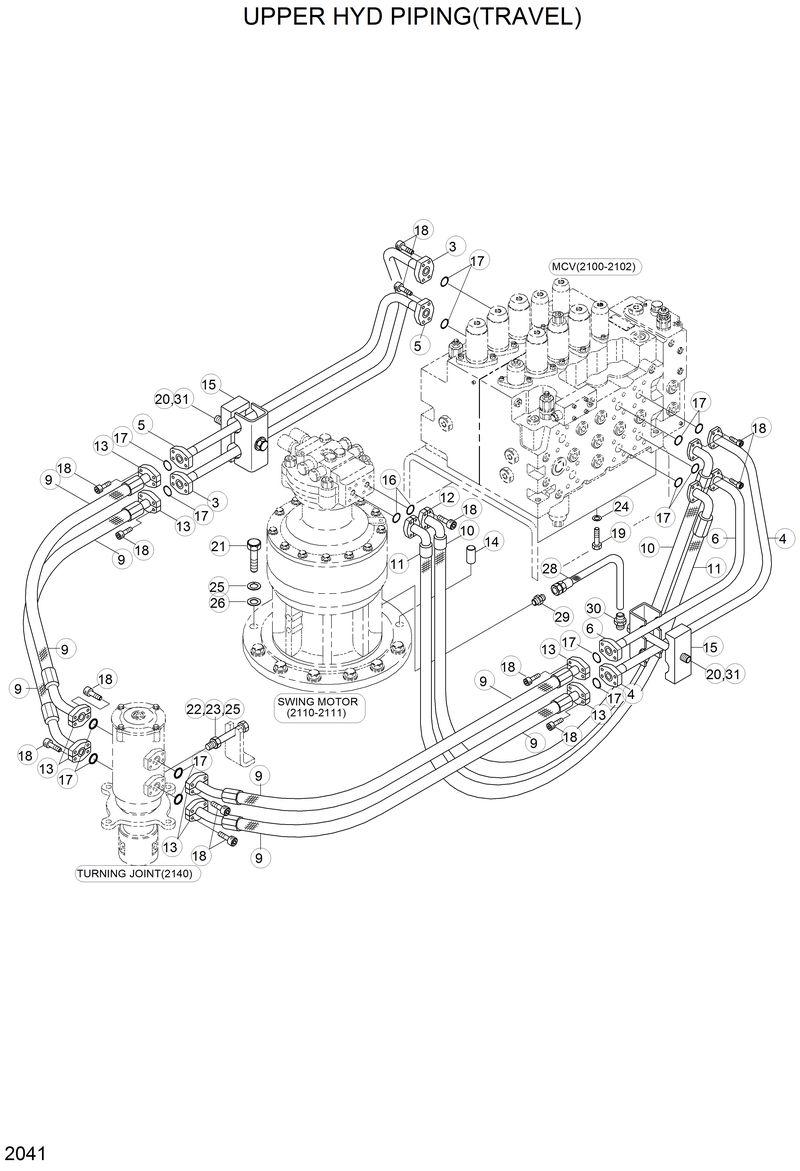

Схема запчастей Hyundai R210LC3LL - UPPER HYD PIPING(TRAVEL)

Артикул

Название

Примечание

Количество

S411-120002

S411-120002-Washer-Spring

S107-100302

S107-100302-Bolt-Socket

S017-120452

S017-120452-Bolt-Hex

S017-120652

S017-120652-Bolt-Hex

S411-120002

S411-120002-Washer-Spring

10

31EM-12180

31EM-12180-Hose Assy

11

31EM-12190

31EM-12190-Hose Assy

12

P173-120102

P173-120102-Flange-Split

13

P173-160104

P173-160104-Flange-Split

14

31E4-3039

31E4-3039-Pin-Dowel

15

31EM-12170

31EM-12170-Clamp-Pipe

16

CO0418A

CO0418A-O-Ring

17

CO0423A

CO0423A-O-Ring

18

S107-100352

S107-100352-Bolt-Socket

19

S017-120352

S017-120352-Bolt-Hex

20

S017-100652

S017-100652-Bolt-Hex

21

S017-200752

S017-200752-Bolt-Hex

22

S017-201002

S017-201002-Bolt-Hex

23

S207-201002

S207-201002-Nut-Hex

25

S411-200002

S411-200002-Washer-Spring

26

S441-200004

S441-200004-Washer-Hardened

28

31E6-11210

31E6-11210-Hose Assy

29

P010-430013

P010-430013-Connector

3

31EM-12013

31EM-12013-Pipe Assy

30

P040-001211

P040-001211-Connector

31

S411-100002

S411-100002-Washer-Spring

4

31EM-12023

31EM-12023-Pipe Assy

5

31EM-12033

31EM-12033-Pipe Assy

6

31EM-12043

31EM-12043-Pipe Assy

9

P690-167314

P690-167314-Hose Assy

Выбрано товаров: 30
