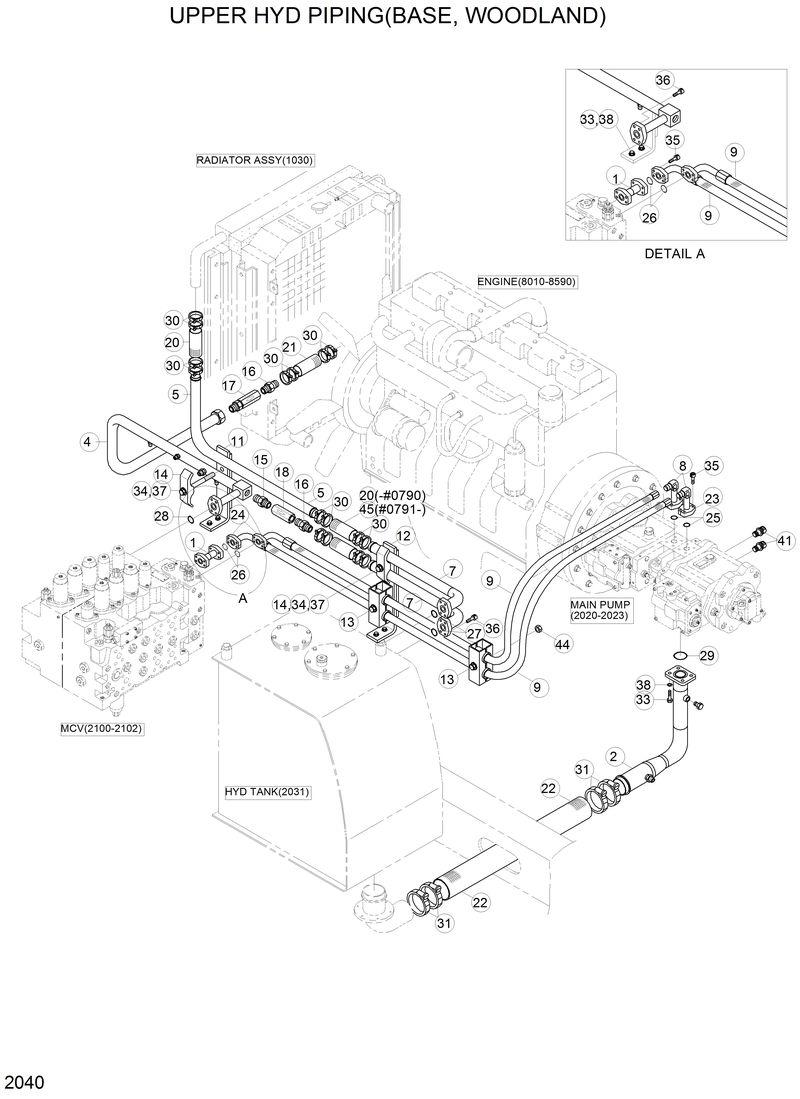

Запчасти Hyundai R210LC3LL UPPER HYD PIPING(BASE, WOODLAND)

31EM-11043

31EM-11043-Pipe Assy

P760-072020

P760-072020-Hose-Rubber

31E9-0142

31E9-0142-Check Valve

31E9-0142

31E9-0142-Check Valve

P760-072020

P760-072020-Hose-Rubber

31E9-0141

31E9-0141-Check Valve

31EM-11181

31EM-11181-Pipe Assy

31E9-0141

31E9-0141-Check Valve

1

31EM-11150

31EM-11150-Pipe Assy

11

31EM-11110

31EM-11110-Bracket-Return

12

31EM-11120

31EM-11120-Bracket-Return

13

31EM-11210

31EM-11210-Clamp-Hose

14

31E5-3001

31E5-3001-Clamp-Pipe

15

31E4-3049

31E4-3049-Fitting

16

31E9-0147

31E9-0147-Fitting

2

31EM-11031

31EM-11031-Pipe Assy

21

P760-072030

P760-072030-Hose-Rubber

22

P760-101040

P760-101040-Hose-Rubber

23

P174-120102

P174-120102-Flange-Split

24

P173-160104

P173-160104-Flange-Split

25

CO0418A

CO0418A-O-Ring

26

CO0423A

CO0423A-O-Ring

27

CO0352A

CO0352A-O-Ring

28

P590-057001

P590-057001-O-Ring

29

S631-071001

S631-071001-O-Ring

30

S520-055000

S520-055000-Clamp-Hose

31

S520-100000

S520-100000-Clamp

32

S017-120302

S017-120302-Bolt-Hex

33

S017-120352

S017-120352-Bolt-Hex

34

S017-101002

S017-101002-Bolt-Hex

35

S107-100304

S107-100304-Bolt-Socket

36

S107-120254

S107-120254-Bolt-Socket

37

S411-100002

S411-100002-Washer-Spring

38

S411-120002

S411-120002-Washer-Spring

4

31EM-11042

31EM-11042-Pipe Assy

41

31EK-11130

31EK-11130-Coupling-Screw

44

S205-101002

S205-101002-Nut-Hex

45

P760-072026

P760-072026-Hose-Rubber

5

31EM-11051

31EM-11051-Pipe Assy

7

31EM-11180

31EM-11180-Pipe Assy

8

31EM-11221

31EM-11221-Pipe Assy

9

31EM-11230

31EM-11230-Hose Assy
