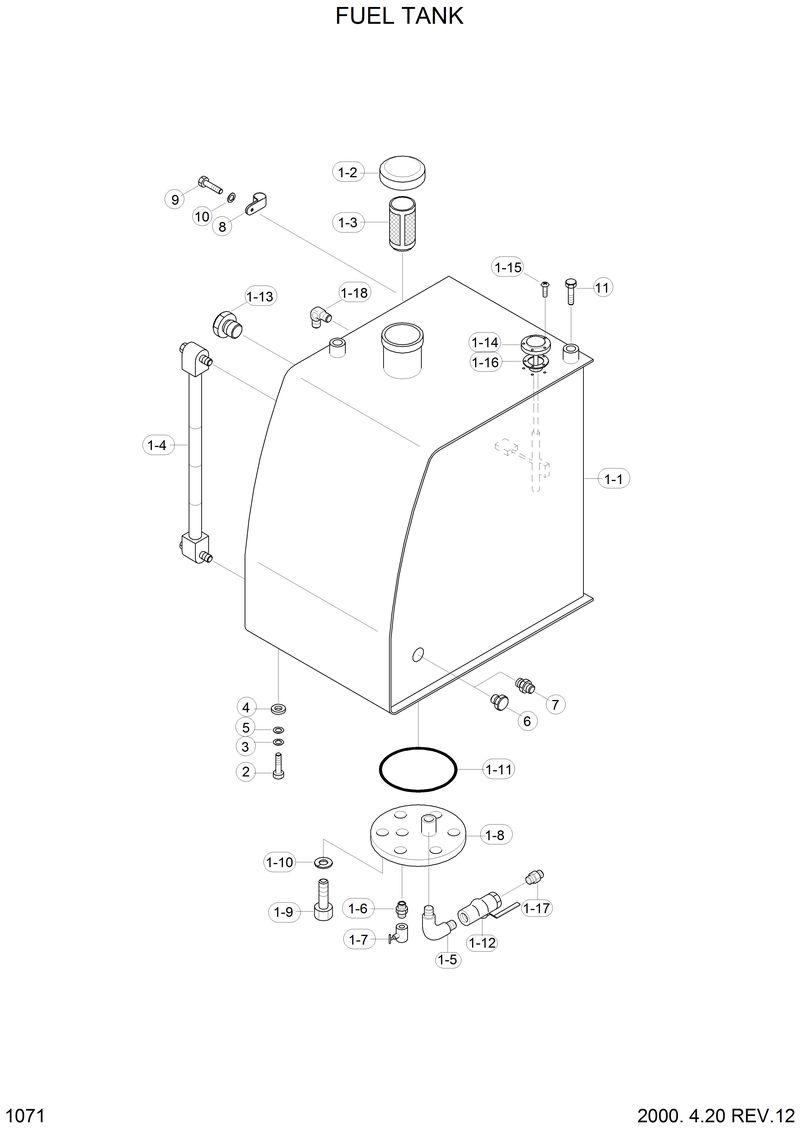

Запчасти Hyundai R210LC3LL FUEL TANK

S017-120152

S017-120152-Bolt-Hex

31EM-04013

31EM-04013-. Fuel Tank Wa

31E1-10300

31E1-10300-. Strainer

31E9-1029

31E9-1029-. Cover Assy

31E9-1029

31E9-1029-. Cover Assy

24E7-00170

24E7-00170-. Sender-Fuel

S541-140002

S541-140002-Clamp

S541-140002

S541-140002-Clamp

S411-100002

S411-100002-Washer-Spring

S411-100002

S411-100002-Washer-Spring

S017-100152

S017-100152-Bolt-Hex

S017-100152

S017-100152-Bolt-Hex

1

@

@-Fuel Tank Assy

1-1

31EM-04012

31EM-04012-. Fuel Tank Wa

1-10

S411-100002

S411-100002-. Washer-Spring

1-11

S632-175002

S632-175002-. O-Ring

1-12

11L1-3020

11L1-3020-. Fuel Stop Valve

1-13

P220-110102

P220-110102-. Plug

1-14

21E9-10700

21E9-10700-. Sender-Fuel

1-15

S161-050152

S161-050152-. Screw

1-16

E128-1053

E128-1053-. Gasket

1-17

11E8-2601

11E8-2601-. Connector

1-18

P020-110001

P020-110001-. Elbow-90

1-2

E131-1038

E131-1038-. Filler Cap

1-3

E131-1039

E131-1039-. Strainer

1-4

E131-0251

E131-0251-. Level Gauge

1-5

31E5-3054

31E5-3054-. Elbow

1-6

31E5-3049

31E5-3049-. Fitting

1-7

E131-1006

E131-1006-. Valve-Needle

1-9

S017-100352

S017-100352-. Bolt-Hex

11

S017-120202

S017-120202-Bolt-Hex

2

S017-200402

S017-200402-Bolt-Hex

3

S441-200002

S441-200002-Washer-Hardened

4

E231-0134

E231-0134-Shim(1.0§®)

5

91E6-60200

91E6-60200-Washer-Hardened

6

P220-430204

P220-430204-Plug

7

P090-101008

P090-101008-Connector-Hose
