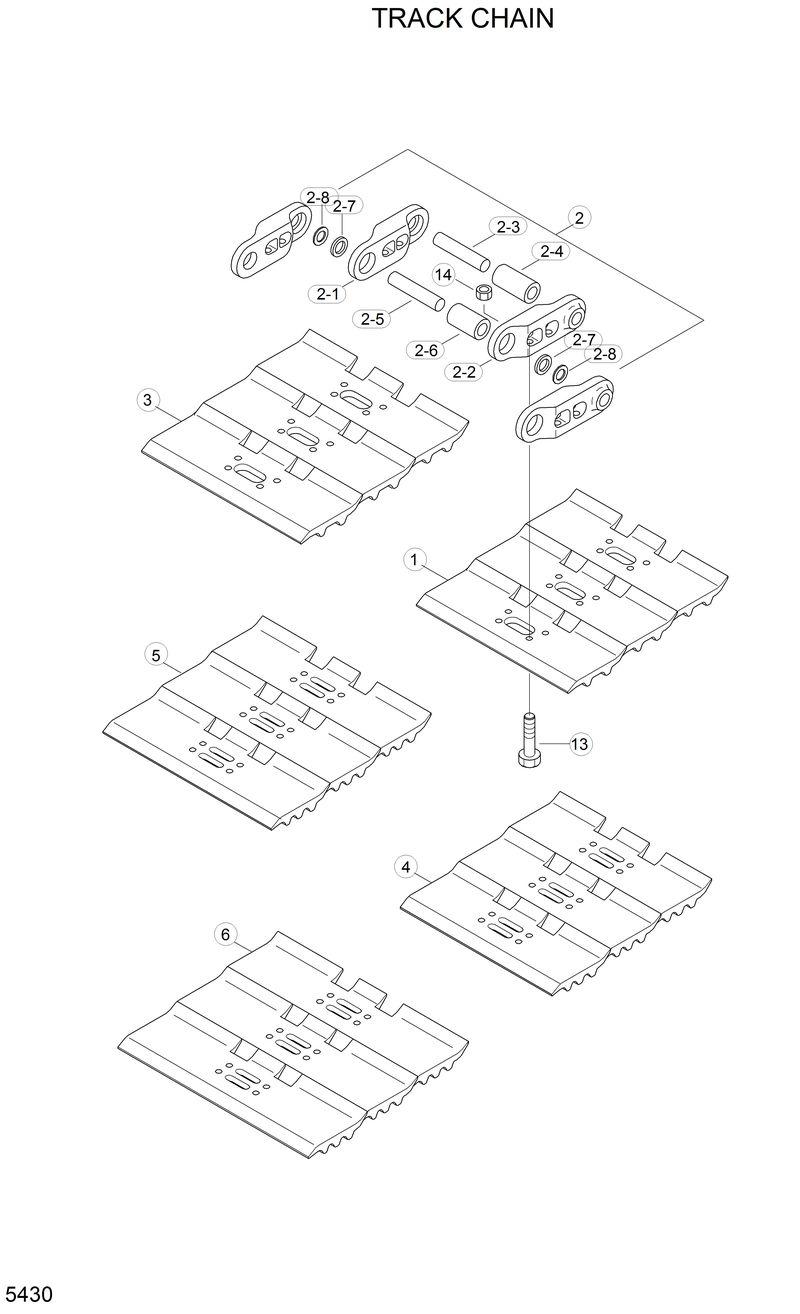

Запчасти Hyundai R210LC3LL TRACK CHAIN

*

81EM-29110

81EM-29110-Track Chain Assy

*

81EM-20300

81EM-20300-Track Chain Assy(600mm)

*

81EM-28110

81EM-28110-Track Chain Assy

*

81EM-20400

81EM-20400-Track Chain Assy(700mm)

*

81EM-20600

81EM-20600-Track Chain Assy(800mm)

1

81EM-28610

81EM-28610-. Track Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

13

81W1-10020

81W1-10020-. Bolt-Track

13

81EM-20020

81EM-20020-. Bolt-Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

14

81EM-20030

81EM-20030-. Nut-Track

14

81EM-20030

81EM-20030-. Nut-Track

14

81EM-20030

81EM-20030-. Nut-Track

14

81EM-20030

81EM-20030-. Nut-Track

14

81EM-20030

81EM-20030-. Nut-Track

2

81EM-20010

81EM-20010-. Track Link Assy

2

81EM-20010

81EM-20010-. Track Link Assy

2

81EM-20010

81EM-20010-. Track Link Assy

2

81EM-20010

81EM-20010-. Track Link Assy

2

81EM-20010

81EM-20010-. Track Link Assy

2-1

81EM-20110

81EM-20110-.. Track Link-Rh

2-2

81EM-20120

81EM-20120-.. Track Link-Lh

2-3

81EM-20130

81EM-20130-.. Pin-Track

2-4

81EM-20140

81EM-20140-.. Bushing-Tarck

2-5

81EM-20150

81EM-20150-.. Pin-Master

2-6

81EM-20160

81EM-20160-.. Bushing-Master

2-7

81EM-20170

81EM-20170-.. Spacer

2-8

81EM-20180

81EM-20180-.. Washer-Seal

3

81EM-28010

81EM-28010-. Shoe-Track

4

81EM-28030

81EM-28030-. Shoe-Track

5

81EM-28040

81EM-28040-. Shoe-Track

6

81EM-28060

81EM-28060-. Shoe-Track
