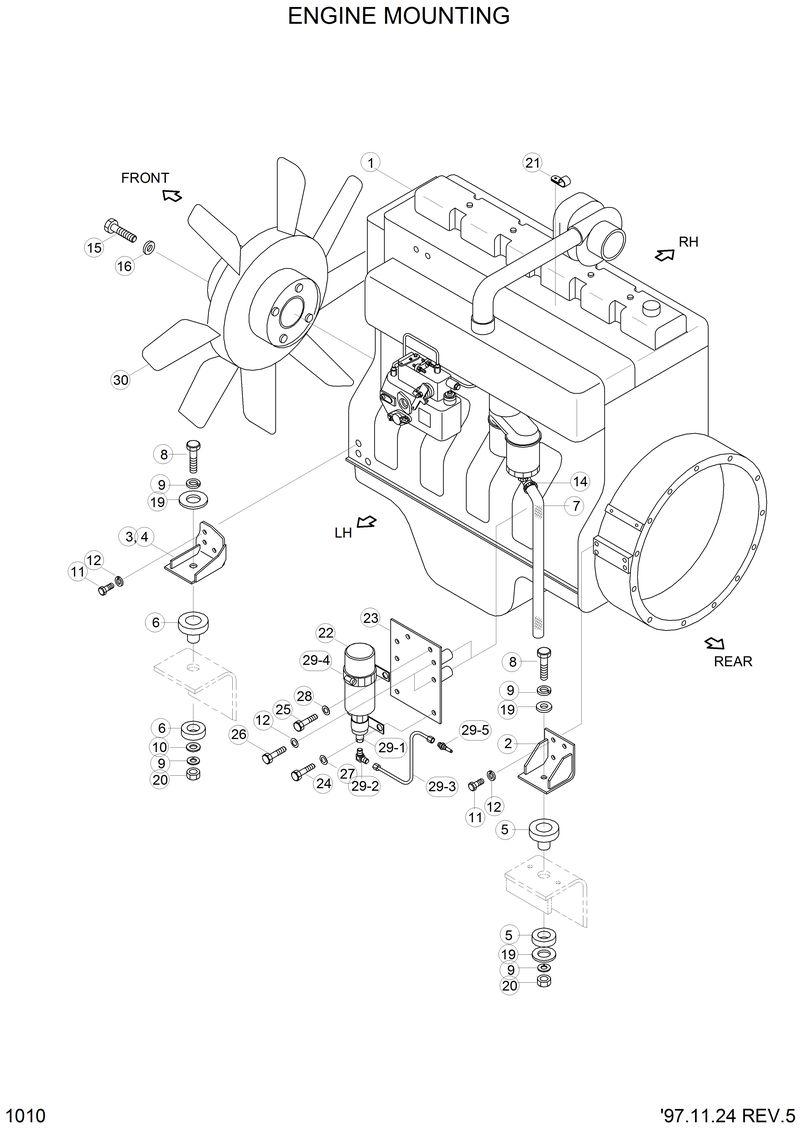

Запчасти Hyundai R210LC3LL ENGINE MOUNTING

1

11EM-02011

11EM-02011-Engine Assy

10

S441-220002

S441-220002-Washer-Hardened

11

S017-120352

S017-120352-Bolt-Hex

12

S411-120002

S411-120002-Washer-Spring

14

S520-027000

S520-027000-Clamp

15

S017-100952

S017-100952-Bolt-Hex

16

S403-102002

S403-102002-Washer-Plain

19

E111-1009

E111-1009-Washer

2

E111-1102

E111-1102-Bracket-Rear,Rh

20

S205-221002

S205-221002-Nut-Hex

21

11E6-00010

11E6-00010-Clip

22

3302657

3302657-Ether Cylinder

23

11EM-42180

11EM-42180-Bracket-Ether Cyl

24

S015-060162

S015-060162-Bolt-Hex

25

S015-080202

S015-080202-Bolt-Hex

26

S017-120702

S017-120702-Bolt-Hex

27

S411-060002

S411-060002-Washer-Spring

28

S403-082002

S403-082002-Washer-Plain

29

11EM-42190

11EM-42190-Cold Start Aid

29-1

91308529

91308529-. Valve Assy

29-2

125049

125049-. Fitting-Valve

29-3

50109601

50109601-. Tube

29-4

913020

913020-. Clamp

29-5

91302622

91302622-. Atomizer

3

11E4-1002

11E4-1002-Bracket-Front,Lh

30

11EM-02020

11EM-02020-Fan-Engine

4

11E4-1003

11E4-1003-Bracket-Front,Rh

5

11EK-10070

11EK-10070-Resilient

6

11EK-10060

11EK-10060-Resilient

7

11E9-02090

11E9-02090-Hose-Breather

8

S017-221352

S017-221352-Bolt-Hex

9

S411-220002

S411-220002-Washer-Spring
